Battery Operated

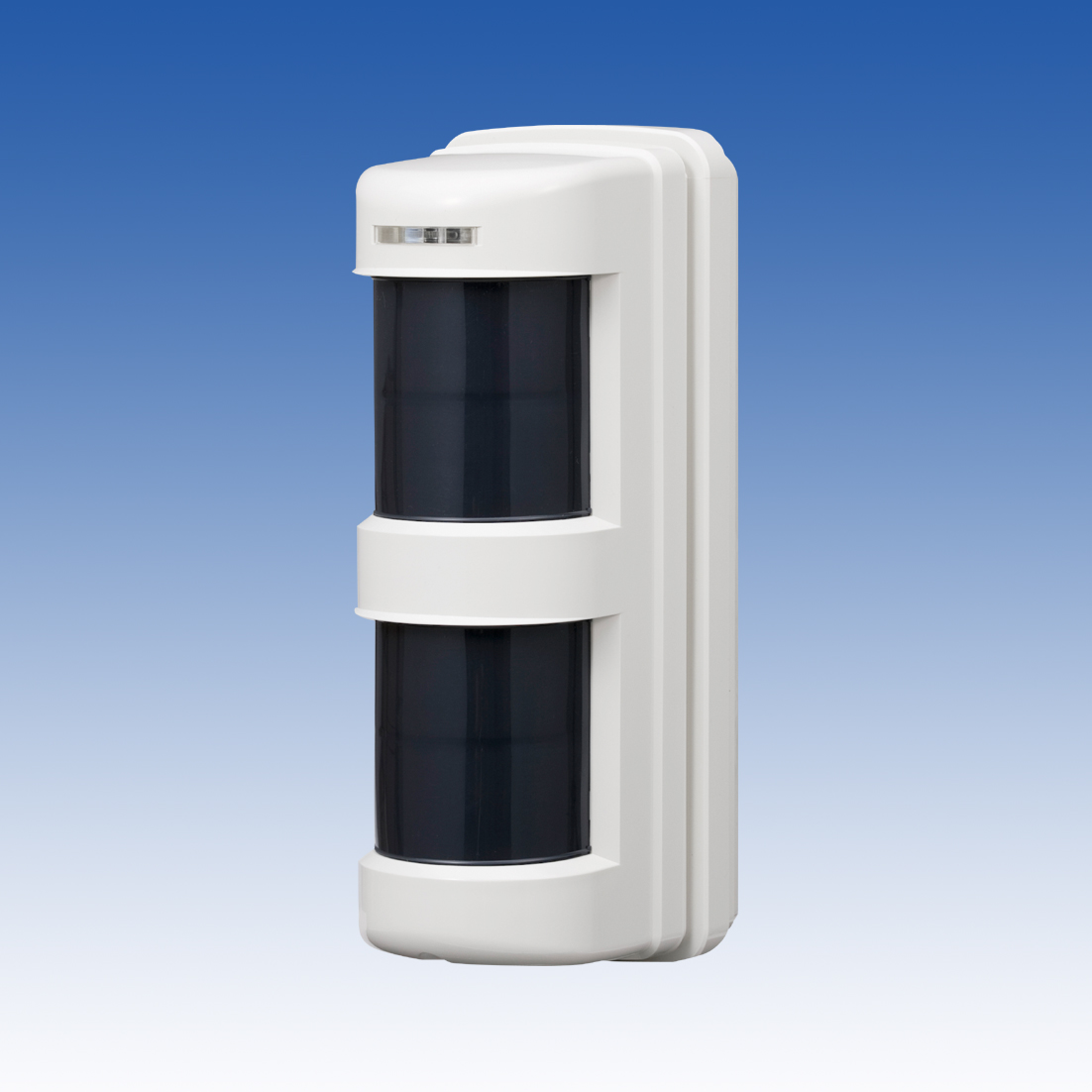

TX-114 Series

With ultra-low current consumption for long battery life, and solid state (NO/NC) outputs for both alarm and 3-stage tamper, TX-114 Series detectors are compatible with leading wireless transmitters for rapid deployment in remote or difficult-to-cable-to areas.

Contact us about this series

TX-114 Series

Model Coverage Detection system Mounting height Supply voltage Current consumption
TX-114FR 12m / 40ft
x 180°
Dual-zone PIR 1m / 3.3ft 3 - 9V DC Battery 35μA
Contact
TX-114SR 12m / 40ft
x 90°
Dual-zone PIR 1m / 3.3ft 3 - 9V DC Battery 25μA
Contact
TX-114TR 12m / 40ft
x 90°
Dual-zone PIR 1m / 3.3ft 3 - 9V DC Battery 25μA
Contact

Features

Dual-zone detection system
2-12m coverage
Rotating sensor heads (±90° horizontal adjustment)
Powered by 3V to 9VDC alkaline or lithium battery
Compatible with numerous wireless transmitter units
Back box with back-tamper (TX-114TR/FR only)
Selectable NO/NC relay output with 2 sec. to 5min. timer function
AND/OR detection modes (TX-114FR only)
IP54 housing

Accessories

KP-100

1m floor standing galvanised steel poles (PAIR) inc. first-fix bolt set

KP-150

1.5m floor standing galvanised steel poles (PAIR) inc. first-fix bolt set
