Request-to-Exit

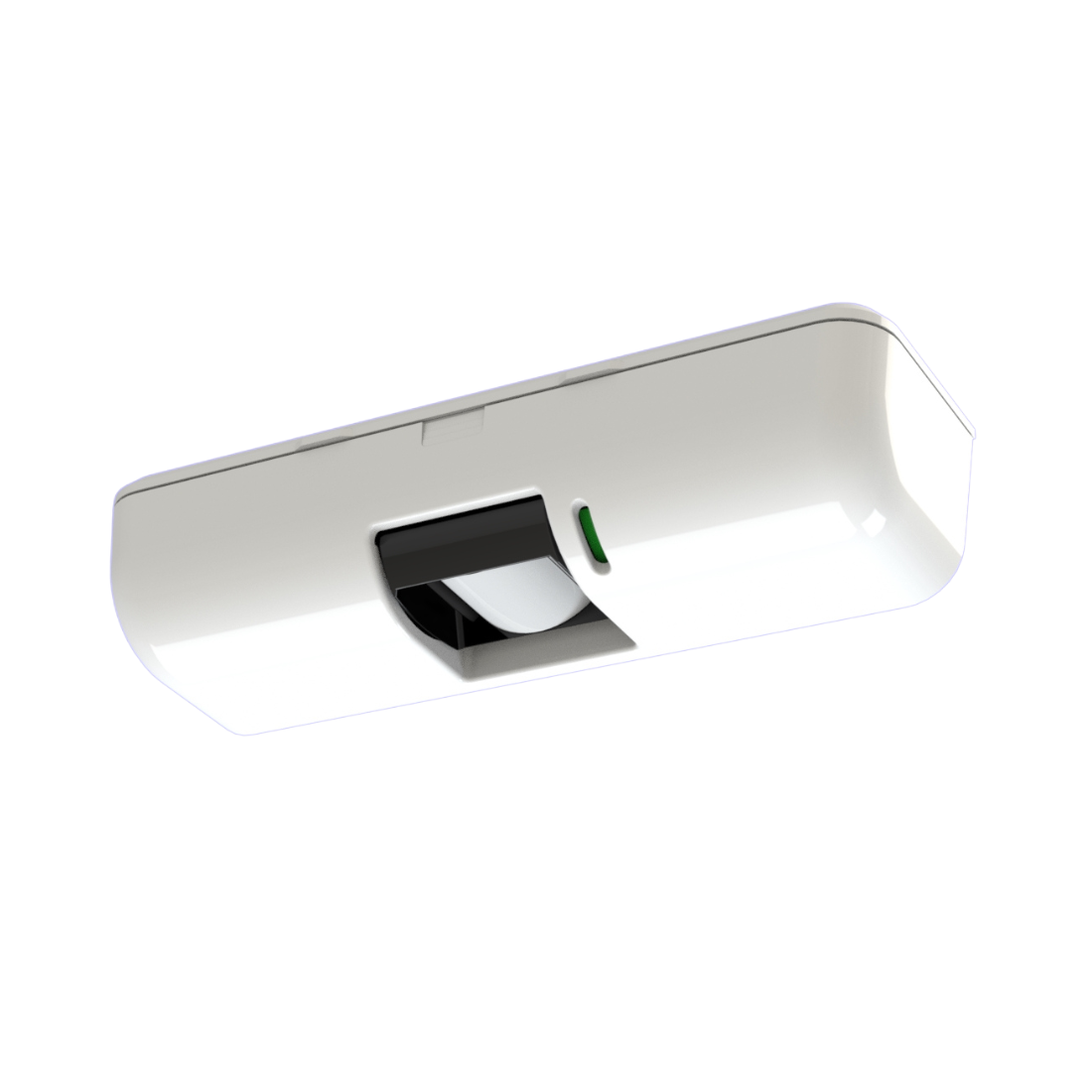

PS-530E

Experience the next generation of exit control with PS-530E; a compact, versatile, and remarkably precise Request-to-Exit (REX) sensor built to streamline access control, door strike release, and automatic door operations.

Building on the foundations of our trusted PS-520E, we've packed PS-530E with everything you need for effortless exits: superior lens technology, more field-selectable settings, and flexible mounting options. And the best part? It's all ingeniously engineered into one of the industry's most compact REX sensors.

Downloads

Datasheet

Manual

PS-530E

Model	Detection system	Mounting height	Adjustment	Supply voltage	Current consumption	Appearance
PS-530E	PIR	4.5m (15')	30° (7 steps)	0.5 - 28VDC / 12 - 24VAC	40mA (DC) / 70mA (AC)	White	Contact
PS-530E(BK)	PIR	4.5m (15')	30° (7 steps)	0.5 - 28VDC / 12 - 24VAC	40mA (DC) / 70mA (AC)	Black	Contact

Features

Up to 4.5m mounting height

Multi detection patterns with area masking sheet

Custom-designed lens provides excellent ambient light immunity

Low/Mid/High/Ex-High Sensitivity adjustment

Output hold time 0.5, 1, 2, 4, 8, 16, 32, 64sec.

10.5 to 28V DC (non-polarity)

Available in White (PS-530E) & Black (PS-530EBK)

Accessories

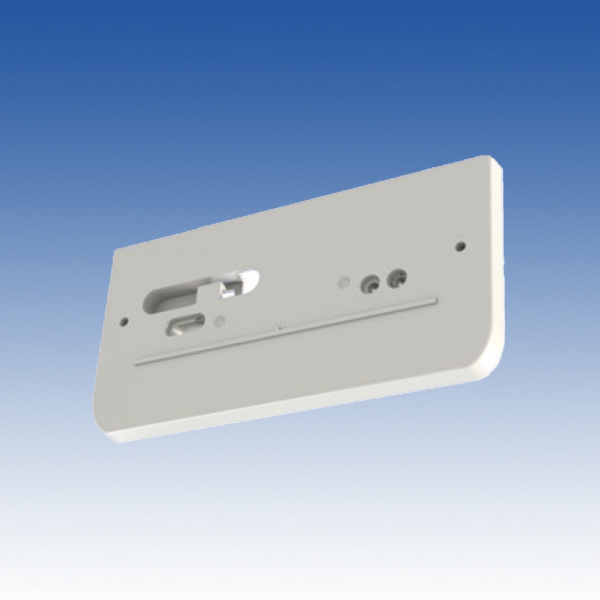

PS-3PL

Optional mounting plate for single-gang electrical boxes (White)

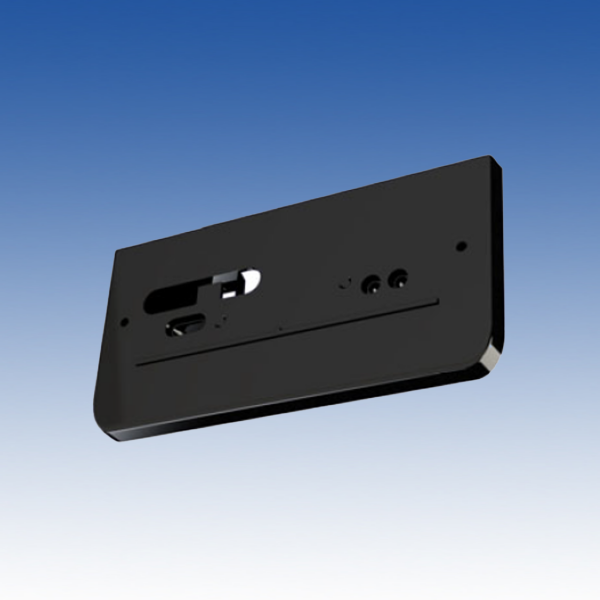

PS-3PL(BK)

Optional mounting plate for single-gang electrical boxes (Black)
