Light Curtain Sensors SS10A Series
SS10A Series, TAKEX, Slim type light curtain sensor
Slim Type

SS10A Series

  • Ideal for object size and position detection
  • 10mm optical axis pitch
  • Equipped with two different outputs with serial and NPN
  • Provided a dedicated circuit board that converts serial to parallel output by each optical axis(optional)
Contact us about this series

Downloads

Datasheet

SS10A Series

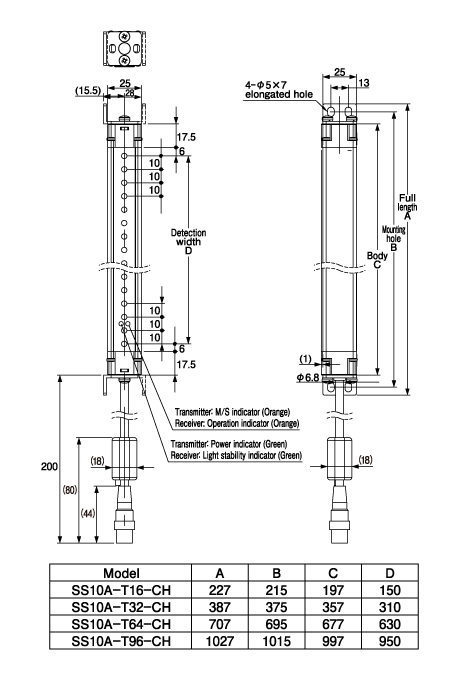

Model Detecting width Beam interval Detecting object Output mode Protective structure
SS10A-T16-CH 150mm 10mm ø17mm (Min.) Opaque object Individual output for each optical axis: serial output
Versatile output: NPN open collector output
Rating: Sink current 100mA (at up to 30V DC)		 IP66
Contact
SS10A-T32-CH 310mm 10mm ø17mm (Min.) Opaque object Individual output for each optical axis: serial output
Versatile output: NPN open collector output
Rating: Sink current 100mA (at up to 30V DC)		 IP66
Contact
SS10A-T64-CH 630mm 10mm ø17mm (Min.) Opaque object Individual output for each optical axis: serial output
Versatile output: NPN open collector output
Rating: Sink current 100mA (at up to 30V DC)		 IP66
Contact
SS10A-T96-CH 950mm 10mm ø17mm (Min.) Opaque object Individual output for each optical axis: serial output
Versatile output: NPN open collector output
Rating: Sink current 100mA (at up to 30V DC)		 IP66
Contact

Accessories

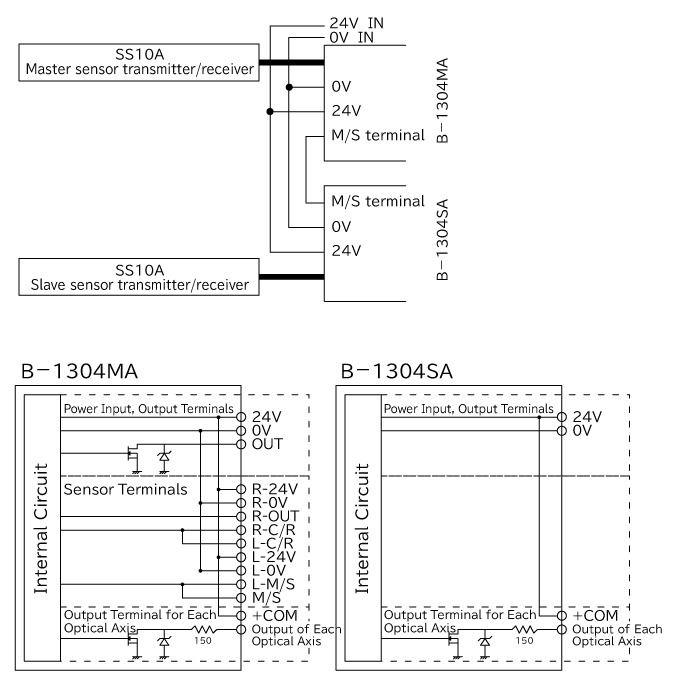

B-1304MA / B-1304SA

A conversion board compatible with the SS10A Series, providing a dedicated circuit board that converts serial to parallel output by each optical axis. Sold separately.

More Info

SS10A Series

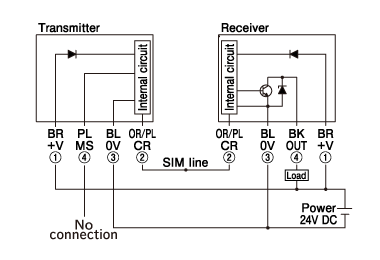

Versatile output operation

| For single use (without using the interference prevention function)

For the sensor of 65optical axes or more, use the connector with cable (attached to B-1304SA as an accessory) to connect with B-1304MA.

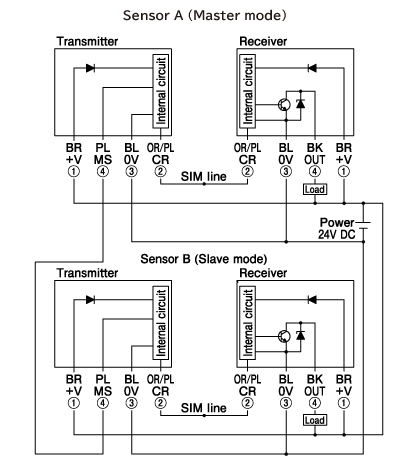

| Mutual interference prevention connection

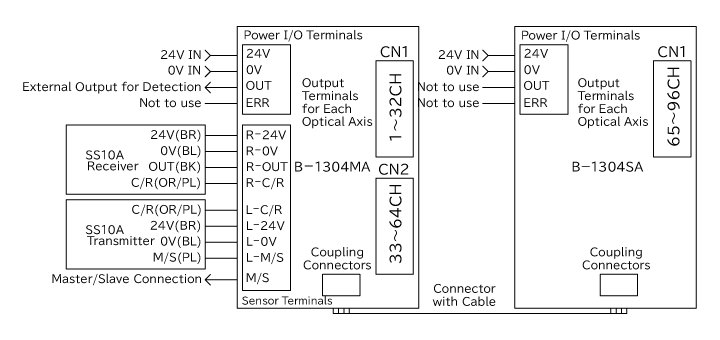

Individual output for each optical axis

| For single use (without using the interference prevention function)

| Mutual interference prevention connection

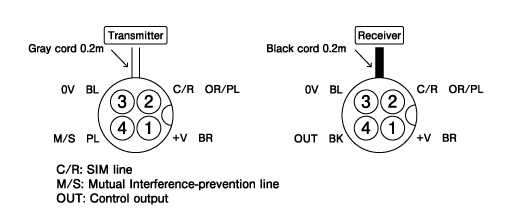

Connector pin layout

| Logistics

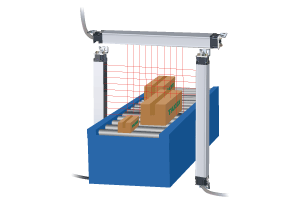

Carton Dimension Sizing

Mutual interference prevention function allows to install two sensors adjacently

| Automobile

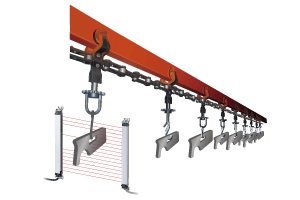

Parts Shape Identification

Determines the shape of the object passing between sensors by blocking the optical axes
