Sequential Array Scanning

SSCA-T0525

5.55mm beam interval, 105mm area
Sequential array scanning light curtain sensor
Can detect a thin object such as a business card!
No synchronizing line is needed
Provided with four different output operation modes
PhotoMOS output, usable for either NPN or PNP output

Downloads

SSCA-T0525

Model	Detection method	Detecting width	Detecting object	Number of beams	Response time	Protective structure
SSCA-T0525	Through beam	105 mm	Opaque object of dia. 6 mm or more	20	15ms or less	IP62 (IEC)	Contact

More Info

Sequential array scanning, which can detect a thin object such as a business card

The transmitter emits light similar to when it is scanning, but the receiver is not scanning.
When LED 1 turns on, all the photo transistors of the receiver receive the light.
When one of any optical axes is blocked, the sensor generates an output.
With this technology, the sensor can detect a thin object such as a postcard or business card.
We have been applying this technology for more than 20 years.

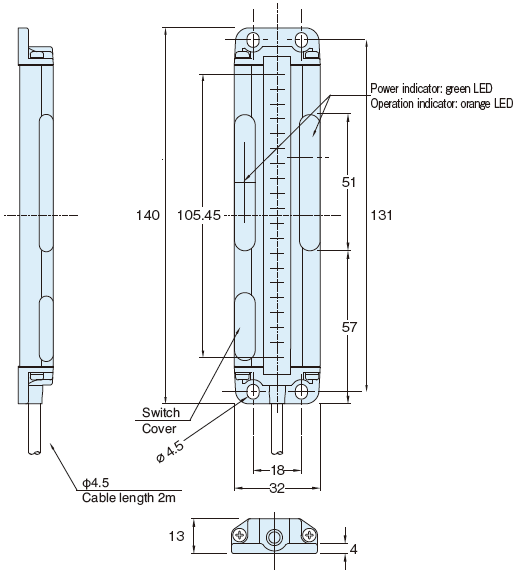

Transmitter

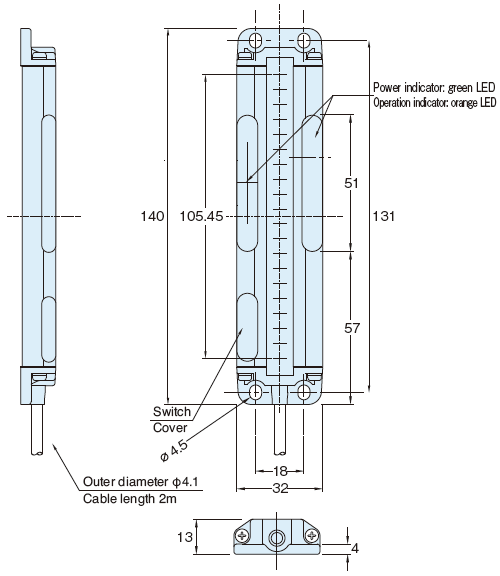

Receiver

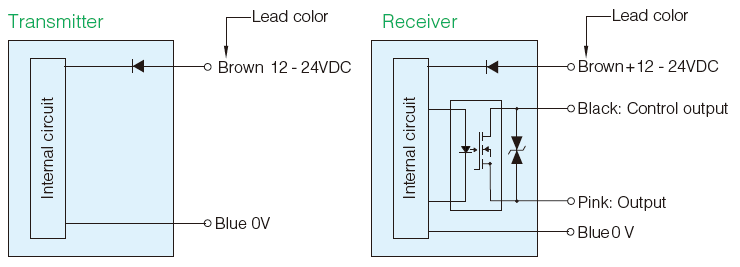

To switch NPN or PNP output of the receiver, select one with the lead.

Note:
When selecting NPN output, connect the black or pink output line to 0V and use the other one as NPN output.
When selecting PNP output, connect the black or pink output line to +V and use the other one as PNP output.
