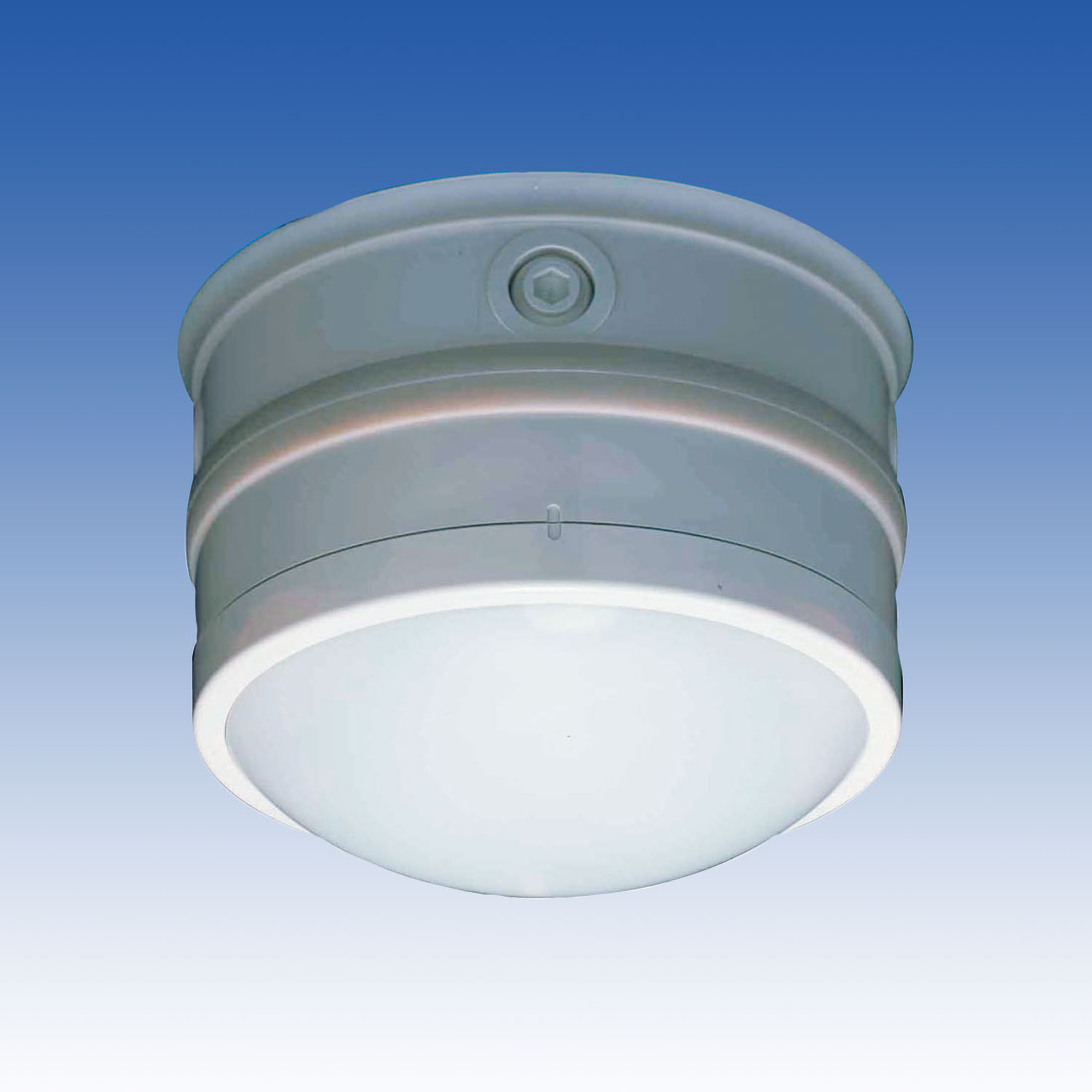

PIR PA-8400 Series
High-Mount PIR

PA-8400 Series

With its unique high-density protection area, PA-8400 series can protect places with high ceilings such as showrooms, halls, factories and warehouses.

Contact us about this series

PA-8400 Series

Model Coverage Detection system Mounting height Supply voltage Current consumption
PA-8410E Wide angle: 10m / 33ft PIR up to 8m / 26ft 9 - 30V DC 30mA
Contact
PA-8420E Vertical Curtain: 20m / 66ft PIR up to 8m / 26ft 9 - 30V DC 30mA
Contact

Features

Unique high-density detection area
Mirror optics ensure reliable protection from 4-8m (13-26ft) high ceilings
Suitable for both indoor and outdoor use
Insect/weather resistant seals
Photo MOSFET relay for silent operation
AES resin housing for high impact resistance; suitable for sports halls and similar environments
