Versatile Lasers

LDS Series

Model	Laser Color	Work Distance (W.D.)	Projection Pattern	Wavelength	Output Power	Connection
LDS152S	Green	300 mm to 1,000 mm	Spot pattern φ1	515 nm	0.7-1.0 mW Class 2	Wire	Contact

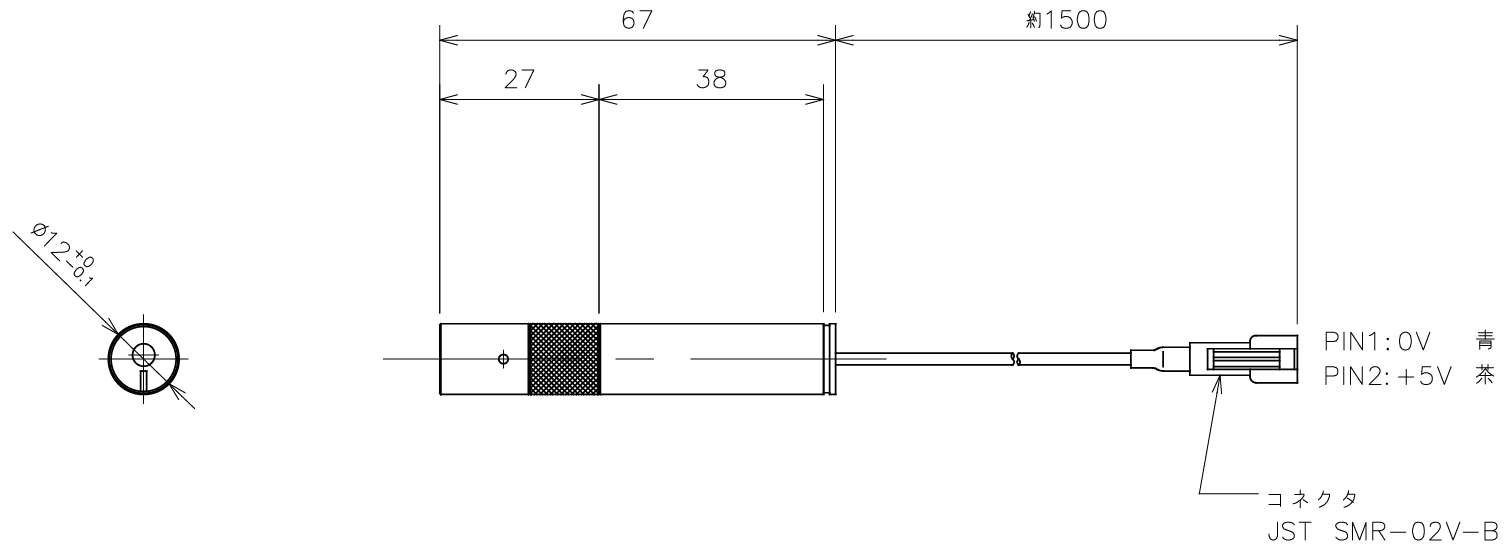

LDS163C	Red	100 mm to 3,000 mm	Cross pattern 200 mm x 200 mm	635 nm	1 mW Class 2	Lead-wire cable with connector	Contact
LDS163L	Red	100 mm to 5,000 mm	Line pattern L: 1,300 mm W: 0.8 mm	635 nm	1 mW Class 2	Lead-wire cable with connector	Contact

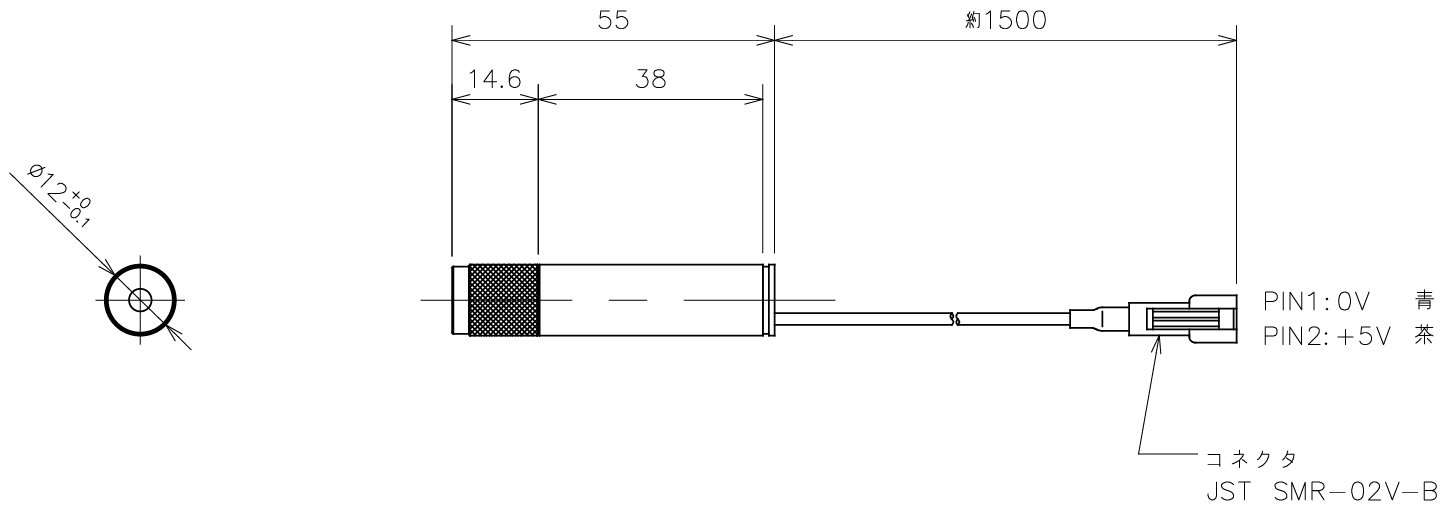

LDS163S	Red	100 mm to 5,000 mm	Spot pattern φ1	635 nm	1 mW Class 2	Lead-wire cable with connector	Contact
LDS167S	Red	1,000 mm fixed	Spot pattern φ1	670 nm	1 mW Class 2	Lead-wire cable with connector	Contact

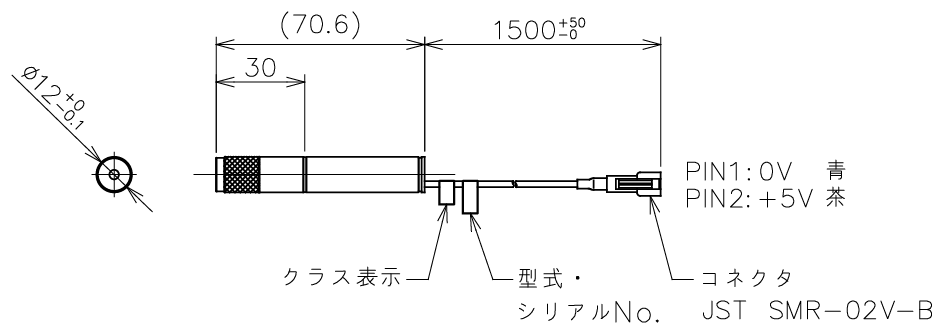

LDS252L	Green	300 mm to 1,000 mm	Line pattern L: 1,200 mm or more W: 1 mm	515 nm	1.4-1.7 mW Class 2	Connector	Contact
LDS263S	Red	100 mm to 5,000 mm	Spot pattern φ1	635 nm	2 mW Class 3R	Lead-wire cable with connector	Contact
