Built-in Power Supply

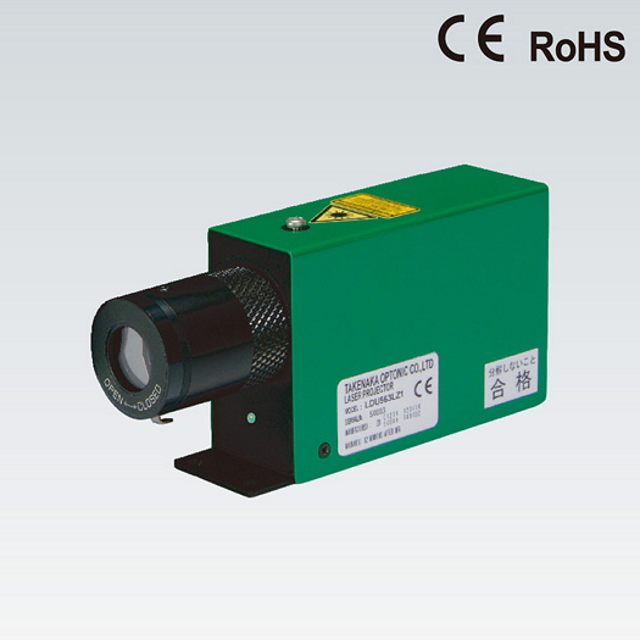

LDU Series

Model	Laser Color	Work Distance (W.D.)	Projection Pattern	Output Power	Operating Voltage/Current	Shutter
LDU163LZ1	Green	100 mm to 5,000 mm	Line pattern L: 1,300 mm W: 0.4 mm	1 mW Class 2	85 V to 125 VAC	N/A	Contact
LDU163LZ2	Green	100 mm to 5,000 mm	Line pattern L: 1,300 mm W: 0.4 mm	1 mW Class 2	170 V to 250 VAC (approx. 3 VA)	N/A	Contact
LDU163L1	Green	100 mm to 5,000 mm	Line pattern L: 500 mm W: 0.8 mm	1 mW Class 2	85 V to 125 VAC	N/A	Contact
LDU163S1	Green	100 mm to 5,000 mm	Spot pattern φ1	1 mW Class 2	85 V to 125 VAC (approx. 3 VA)	N/A	Contact
LDU163S2	Green	100 mm to 5,000 mm	Spot pattern φ1	1 mW Class 2	170 V to 250 VAC (approx. 3 VA)	N/A	Contact
LDU563C1	Green	100 mm to 5,000 mm	Cross pattern 150 mm x 150 mm W: 1 mm	5 mW Class 2	85 V to 125 VAC	Manual shutter	Contact
LDU563LZ1	Green	100 mm to 5,000 mm	Line pattern L: 1,300 mm W: 0.4 mm	5 mW Class 2	85 V to 125 VAC	Manual shutter	Contact
LDU563LZ2	Green	100 mm to 5,000 mm	Line pattern L: 1,300 mm W: 0.4 mm	5 mW Class 2	170 V to 250 VAC (approx. 3 VA)	Manual shutter	Contact
LDU763LZ1	Green	100 mm to 5,000 mm	Line pattern L: 1,300 mm W: 0.4 mm	7 mW Class 2	85 V to 125 VAC	Manual shutter	Contact
