Quad Beams

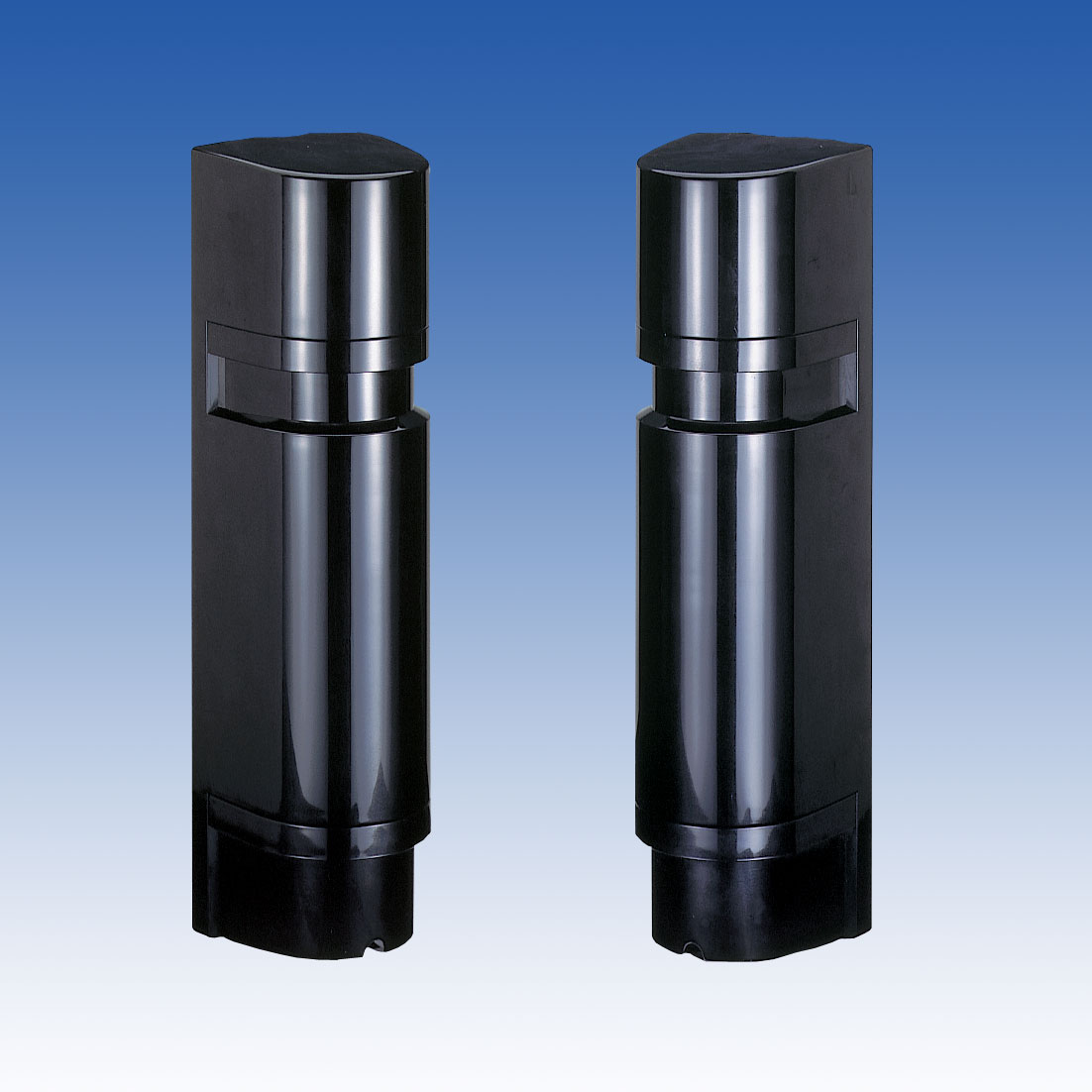

PB-IN-HFA Series

The PB-IN-HFA series is the flagship of the TAKEX range of infrared photoelectric beams.

By synchronising 16 beam paths between Transmitter and Receiver, the PB-IN-HFA series offer unrivalled stability in perimeter security. Coupled with channel separation and environmental (anti-fog) circuitry, the PB-IN-HFA series has earned worldwide recognition as the standard our rivals aspire to.



CPNI / NPSA Logo

PB-IN-50HFA is a NPSA rated product: Approved for UK Government use, for details contact NPSA

Contact us about this series

PB-IN-HFA Series

Model Type Detection distance Frequency Selection IP Rating Supply voltage Current consumption
PB-IN-50HFA Quad Beam 50m / 165ft 4 Channels 55 12 - 30V DC 95mA
Contact
PB-IN-100HFA Quad Beam 100m / 330ft 4 Channels 55 12 - 30V DC 105mA
Contact
PB-IN-200HFA Quad Beam 200m / 660ft 4 Channels 55 12 - 30V DC 120mA
Contact

Features

4 x Synchronised high power beams
4 x Selectable beam channels to prevent crosstalk
Environmental monitoring circuit
Double modulation for unsurpassed light immunity
Auto-gain lock (AGL)
50,000 lux sunlight immunity
Vivid internal body stickers aid beam alignment procedure
PB-50/100/200HFA-KH for TA series Beam Towers also available
IP55 housing

Accessories

PBH

12/24VDC Heater Kit (PAIR)

KP-100

1m floor standing galvanised steel poles (PAIR) inc. first-fix bolt set

KP-150

1.5m floor standing galvanised steel poles (PAIR) inc. first-fix bolt set

INT-QUADIP

IP Interface Module

BP-200F

Optional Rear Cover to hide Pole Mount assembly (PAIR)

Videos

PB-IN-HF - Beam Alignment (Instructional Video)
