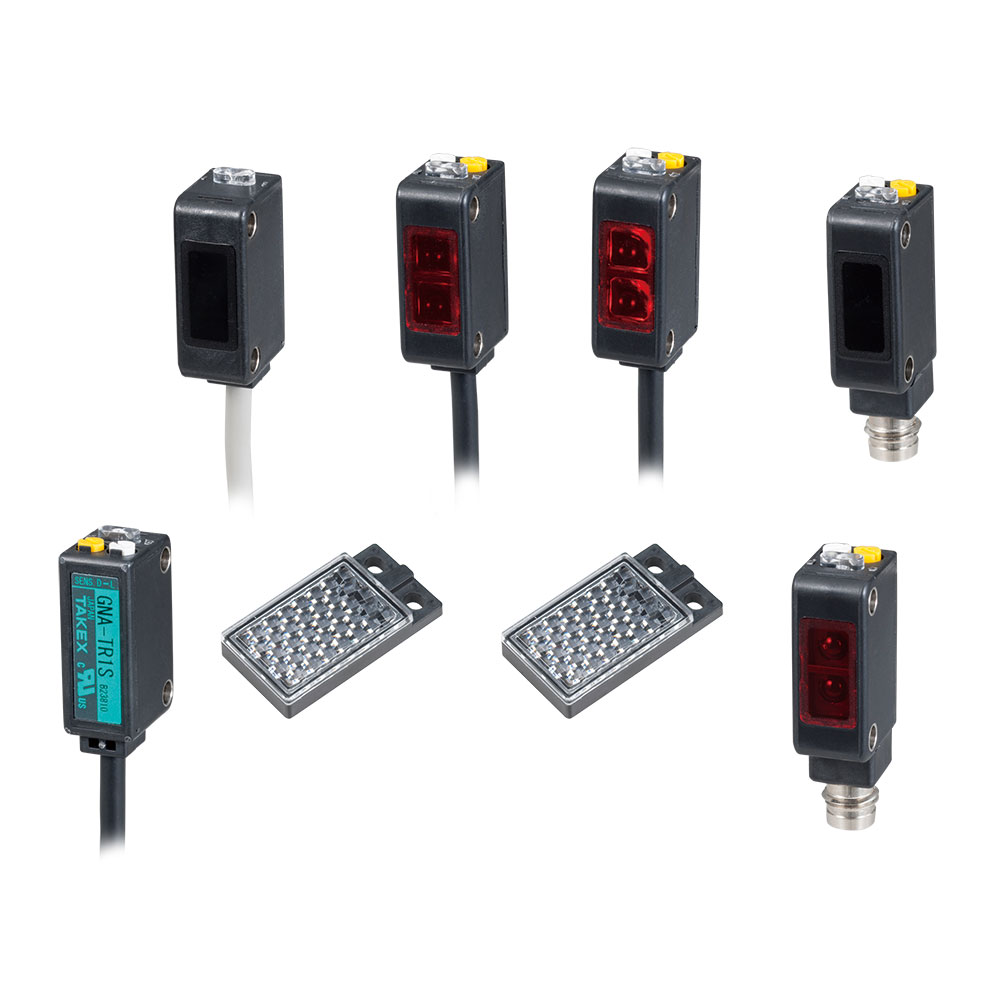

Photoelectric sensor, Takex GNA Series, Small, Slim, Compact, Photo sensor
Compact for Built-in Use Embedded Amplified Photo Sensors

GNA Series

  • Slim and Space-saving
    More compact than inch-pitch photo sensors
    Ideal for incorporated applications
  • Flexible mounting options
    Close-contact mounting available as the cable exits beneath sensor body
  • Reduces inventory of maintenance
    Equipped with NPN and PNP outputs in one sensor
    Optimized for different input devices
  • Core performance unchanged
    Consolidated conventional GN, Mini-G and Middle-G Series into GNA Series
    Designed for easier transition to GNA senes
Contact us about this series

GNA Series

Model Detection method Detection distance Light source Connection
GNA-M2RPS Polarized reflector 0.07 to 1.3 m Red LED Attached cord (Ø3.5mm o.d.), Receiver 0.2mm² × 4 cores, 2m (black)
Contact
GNA-M2RPSJ Polarized reflector 0.07 to 1.3 m Red LED M8 connector type (Cord with M8 connector, separately sold)
Contact
GNA-M2RS Reflector 0.01 to 2 m Red LED Attached cord (Ø3.5mm o.d.), Receiver 0.2mm² × 4 cores, 2m (black)
Contact
GNA-M2RSJ Reflector 0.01 to 2 m Red LED M8 connector type (Cord with M8 connector, separately sold)
Contact
GNA-R7S Diffusion reflective 70 mm Infrared LED Attached cord (Ø3.5mm o.d.), Receiver 0.2mm² × 4 cores, 2m (black)
Contact
GNA-R7SJ Diffusion reflective 70 mm Infrared LED M8 connector type (Cord with M8 connector, separately sold)
Contact
GNA-R40RS Diffusion reflective 400 mm Red LED Attached cord (Ø3.5mm o.d.), Receiver 0.2mm² × 4 cores, 2m (black)
Contact
GNA-R40RSJ Diffusion reflective 400 mm Red LED M8 connector type (Cord with M8 connector, separately sold)
Contact
GNA-R40S Diffusion reflective 400 mm Infrared LED Attached cord (Ø3.5mm o.d.), Receiver 0.2mm² × 4 cores, 2m (black)
Contact
GNA-R40SJ Diffusion reflective 400 mm Infrared LED M8 connector type (Cord with M8 connector, separately sold)
Contact
GNA-T1S Through-beam 1 m Infrared LED Attached cord (Ø3.5mm o.d.)
Transmitter 0.2mm²×2 cores, 2m (gray), Receiver 0.2mm²×4 cores, 2m (black)
Contact
GNA-T1SJ Through-beam 1 m Infrared LED M8 connector type (Cord with M8 connector, separately sold)
Contact
GNA-T10RS Through-beam 10 m Red LED Attached cord (Ø3.5mm o.d.)
Transmitter 0.2mm²×2 cores, 2m (gray), Receiver 0.2mm²×4 cores, 2m (black)
Contact
GNA-T10RSJ Through-beam 10 m Red LED M8 connector type (Cord with M8 connector, separately sold)
Contact
GNA-T10S Through-beam 10 m Infrared LED Attached cord (Ø3.5mm o.d.)
Transmitter 0.2mm²×2 cores, 2m (gray), Receiver 0.2mm²×4 cores, 2m (black)
Contact
GNA-T10SJ Through-beam 10 m Infrared LED M8 connector type (Cord with M8 connector, separately sold)
Contact
GNA-Z4RS Limited reflective 1 to 40 mm Red LED Attached cord (Ø3.5mm o.d.), Receiver 0.2mm² × 4 cores, 2m (black)
Contact
GNA-Z4RSJ Limited reflective 1 to 40 mm Red LED M8 connector type (Cord with M8 connector, separately sold)
Contact
GNA-Z4S Limited reflective 1 to 40 mm Infrared LED Attached cord (Ø3.5mm o.d.), Receiver 0.2mm² × 4 cores, 2m (black)
Contact
GNA-Z4SJ Limited reflective 1 to 40 mm Infrared LED M8 connector type (Cord with M8 connector, separately sold)
Contact

More Info

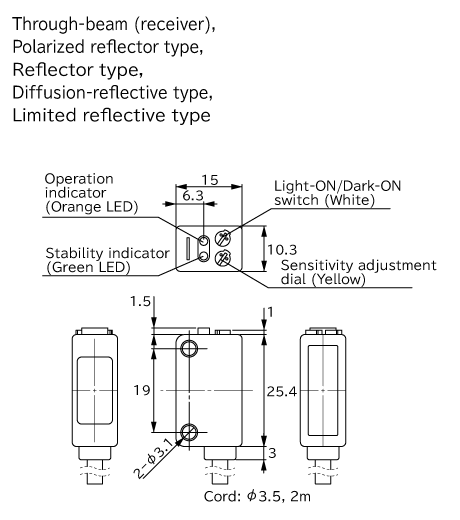

1. Attached Cord

2. Attached Cord

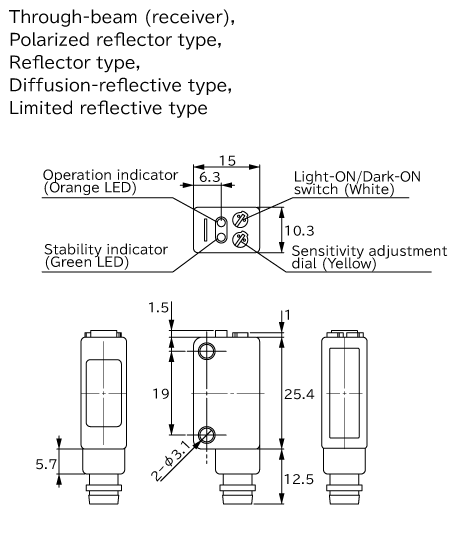

3. M8 Connector

4. M8 Connector

5. Polarized reflector type, Reflector type Accessory

1. Through-beam type (Transmitter)

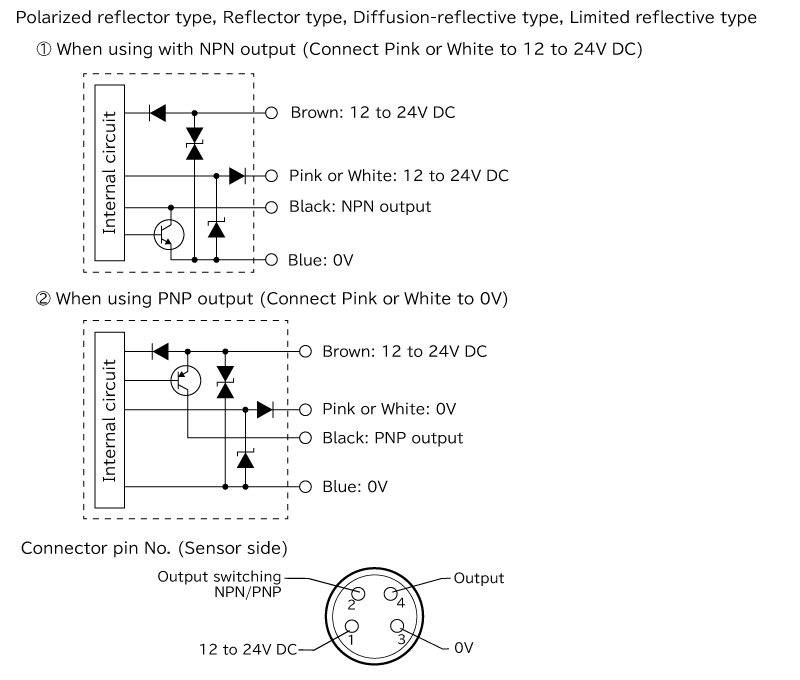

2. Through-beam (Receiver), Reflective type

| Logistics
Transmission of Signals to AGV Carriages

Measuring the distance to the detecting object in the phase differential method and securely detecting a wide area without being affected by the background of the detecting object, glossy surface or color depth.

| Sanitary/Amusement
Sensor for automatic faucet

Users' approaching and leaving detected for flushing.
