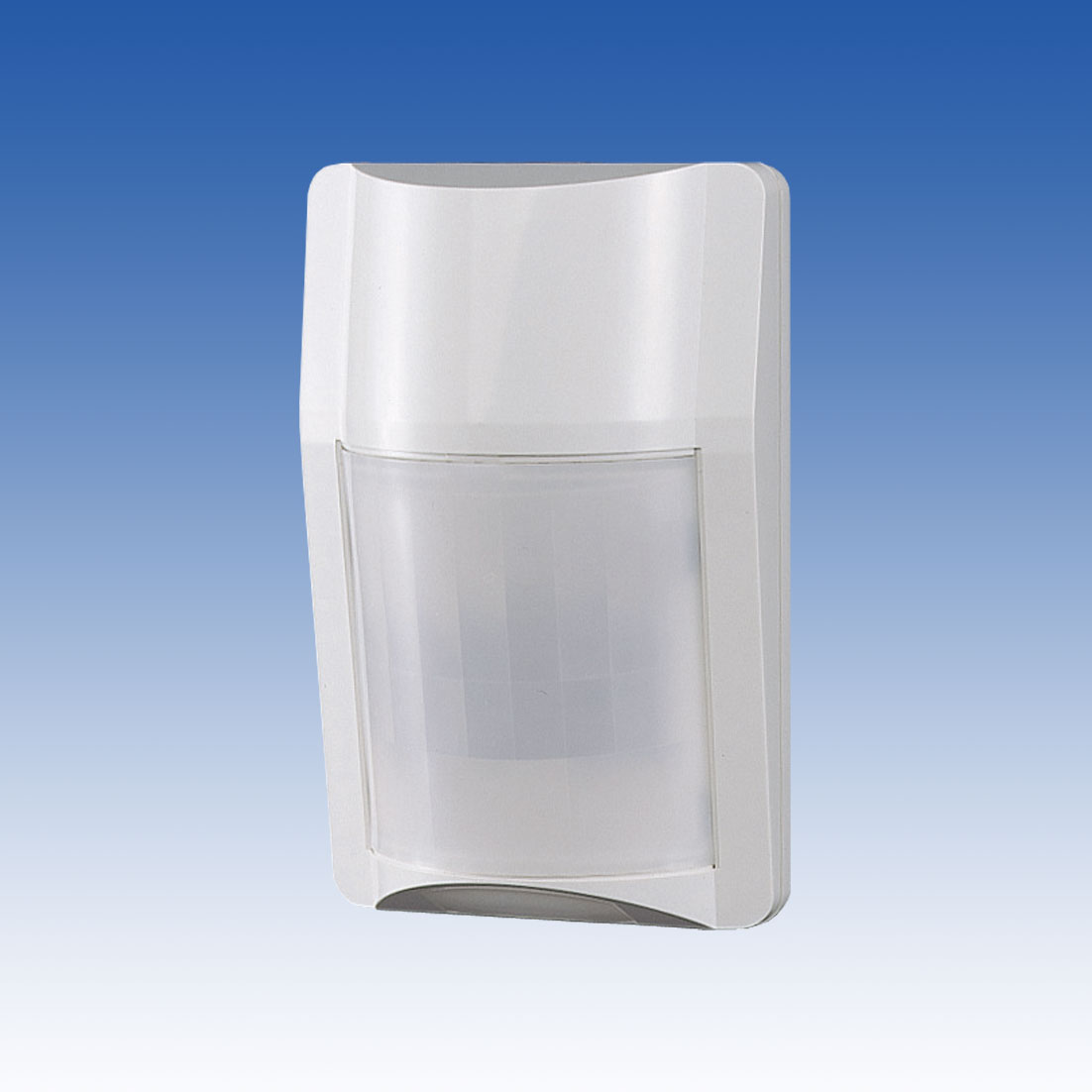

Wall Mount PIR

PA-450 Series

TAKEX Indoor Passive Infrared Sensors combine high performance optics and advanced circuitry with the highest grade components available.

The superior design of TAKEX Passive Infrared Sensors ensures peace of mind protection in even the most demanding of situations.

Model	Coverage	Detection system	Mounting position	Supply voltage	Current consumption
PA-450EA	Wide angle: 11m / 36ft	PIR	Wall	10 - 18V DC	25mA	Contact
PA-450PIA	Wide angle: 11m / 36ft	PIR w/ Pet immunity	Wall	11 - 18V DC	25mA	Contact

High RFI and EMI immunity

Photo MOSFET relay for silent operation

Equipped with tamper and auto-reset memory

Creep zone eliminates dead-space below sensor (PA-450E only)

Adjustable coverage pattern to suit different mounting heights

Mode selector for easy setting adjustment

Adjustable Wall/Ceiling Mount Bracket
