PS-530E REX sensor Product image

Introducing PS-530E

Building on the foundations of our trusted PS-520E, we've packed PS-530E with everything you need for effortless exits: superior lens technology, more field-selectable settings, and flexible mounting options.

And the best part? It's all ingeniously engineered into one of the industry's most compact REX sensors.

PS-530E product page

How do they work?

Request-to-Exit (REX) sensors are access control devices that allow authorized individuals to safely and conveniently exit a secured area without requiring credentials.

They are essential for any door secured with an electromagnetic lock (mag lock), and commonly used with electric strikes too.

Upon approach, REX sensors detect that someone intends to exit and trigger a signal to the access control system to temporarily disengage the door lock.

Once the door closes (and a set time delay, if configured, has passed), the access control system re-engages the lock, securing the door again.

What do they do?

Request-to-Exit sensors are a crucial component in access control systems, primarily used to provide a safe and convenient way for individuals to exit a secured area without requiring credentials (like a keycard or code).

Free Egress:

Free Egress:

REX sensors allow authorized individuals to exit a controlled space easily and quickly. This is especially vital for safety and compliance with building codes, ensuring that people can always leave in an emergency.
Security Integration:

Security Integration:

While allowing free exit, REX sensors are integrated into the overall access control system to maintain security from the outside.
Convenience:

Convenience:

For high-traffic areas or situations where people might have their hands full, REX sensors offer a hands-free and convenient way to exit.

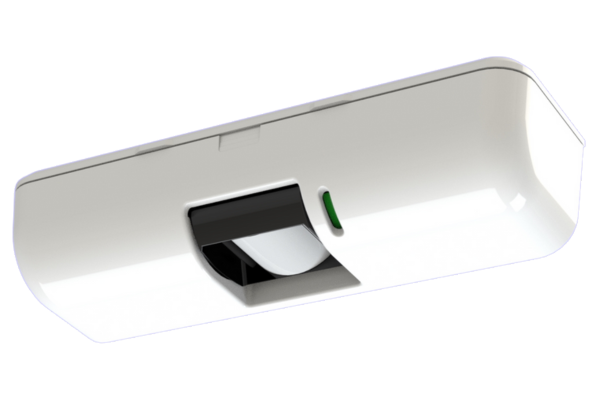

PS-530E product image

NEW MODEL

PS-530E

  • Up to 4.5m mounting height
  • Multi detection patterns with area masking sheet
  • 10.5 to 28V DC (non-polarity)
  • Output hold time 0.5, 1, 2, 4, 8, 16, 32, 64sec. (Dip Switch)
  • Low/Mid/High/Ex-High Sensitivity adjustment (Dip Switch)
  • Push-fit terminals

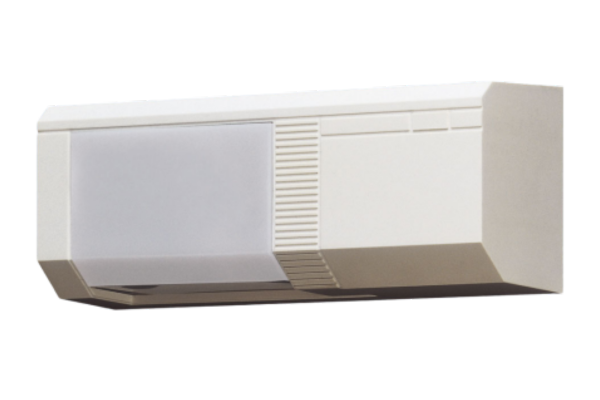

PS-520E product image

PREVIOUS MODEL

PS-520E

  • Up to 4m mounting height
  • Two selectable detection patterns
  • 12 to 24V DC (non-polarity)
  • Output hold time 0.25sec. to 60sec. (Volume)
  • H to L Sensitivity adjustment (Volume)
  • Screw-type terminals

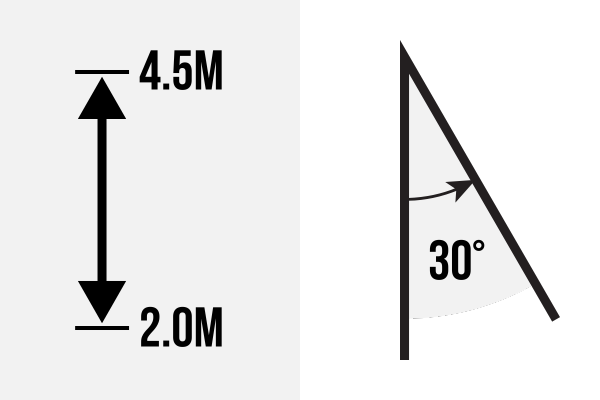

Diagram showing adjustment options of PS-530E

Adjustable coverage

Designed to be mounted up to 15' (4.5m), PS-530E offers 30° of vertical tilt adjustment allowing you to customise its coverage to meet your exit needs.

PS-530E REX sensor screwless terminals

Simplified wiring

Get up and running faster with the PS-530E. Its innovative push-fit screwless terminals ensure a quick, tool-free installation, making setup incredibly efficient for any project.

Fail Safe / Fail Secure Icons

Fail safe/Fail secure operation

Configure how PS-530 behaves during a power outage. Opting for fail-safe means the door unlocks if power is lost, prioritizing safety by ensuring free egress. Choosing fail-secure keeps the door locked when power fails, emphasizing security by preventing unauthorized access.

Illustration showing PS-530E mounting to a wall or ceiling

Flexible Installation

Whether mounting on a wall or to the ceiling, you won't need to adjust the internal components or physical orientation of PS-530E. Its detection capabilities work effectively regardless of mounting position, simplifying installation and ensuring consistent performance in various architectural layouts.

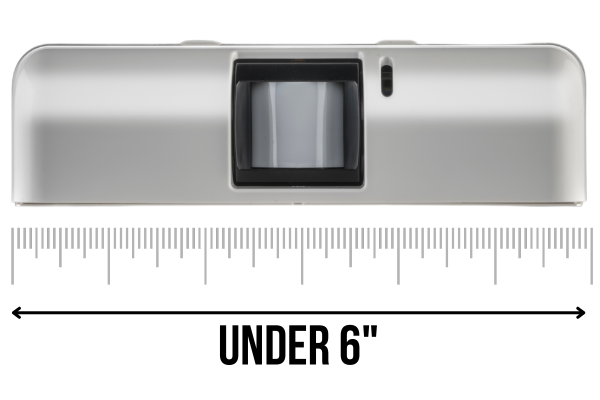

PS-530E REX sensor dimensions

Small & Compact

Measuring under 6 inches in length and weighing just 100g, PS-530E is the smallest REX sensor in the industry; its discreet, space-saving design makes it ideal for any door frame or tight installation space without compromising performance.

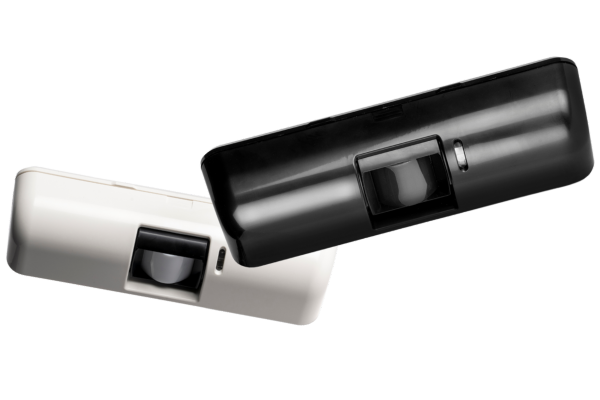

Black and White Options for PS-530E REX sensor

Designed to Disappear

Available in sleek White and Black finishes, PS-530E blends effortlessly into any setting. Whether modern or traditional, it complements your space without drawing unwanted attention.

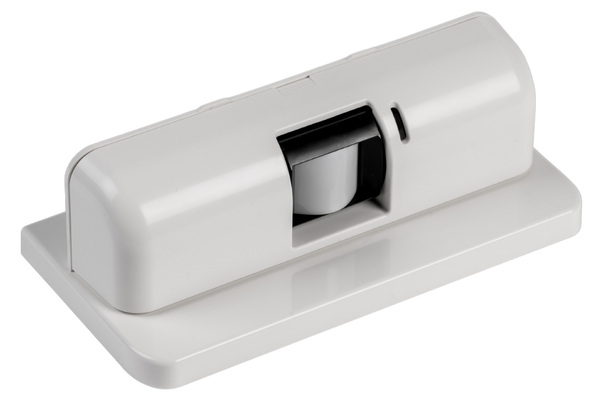

PS-530E REX sensor mounted to back plate

Installer-friendly

In addition to the push-fit terminals and field selectable settings, an optional mounting plate (PS-3PL/BK) is available for single-gang electrical boxes, perfect for first-fix wiring on new installations.

UL Listed

UL Listed

PS-530E delivers reliable performance backed by rigorous third-party testing.
5 Years Warranty

5 Years Warranty

With our five-year worry-free warranty, you can count on long-term performance and peace of mind.
