U-Shaped

AS Series

  • No optical axis alignment necessary

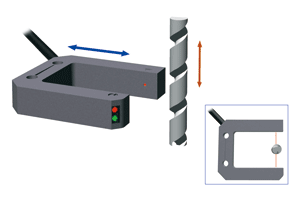

  • Ideal for checking the position of stacker cranes in an automatic warehouse
  • Metal housing and water resistance comply with IP67, usable in adverse environment (AS-U30M)
Contact us about this series

AS Series

Model Detecting distance Power supply Output mode Connection Protective structure
AS-U20 19mm fixed 12 - 24V DC NPN Attached cable IP67
Contact
AS-U20D 19mm fixed 12 - 24V DC NPN Attached cable IP67
Contact
AS-U25 25mm fixed 12 - 24V DC NPN Attached cable IP67
Contact
AS-U25D 25mm fixed 12 - 24V DC NPN Attached cable IP67
Contact
AS-U25DPN 25mm fixed 12 - 24V DC PNP Attached cable IP67
Contact
AS-U25PN 25mm fixed 12 - 24V DC PNP Attached cable IP67
Contact
AS-U30 30mm fixed 12 - 24V DC NPN Attached cable IP67
Contact
AS-U30D 30mm fixed 12 - 24V DC NPN Attached cable IP67
Contact
AS-U30DPN 30mm fixed 12 - 24V DC PNP Attached cable IP67
Contact
AS-U30MPN 30mm fixed 12 - 24V DC PNP Attached cable IP67
Contact
AS-U30PN 30mm fixed 12 - 24V DC PNP Attached cable IP67
Contact

More Info

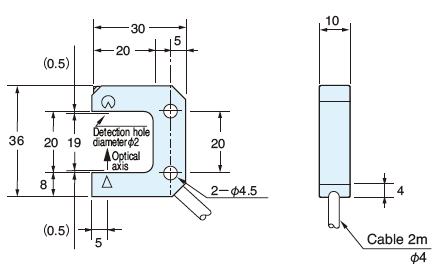

AS-U20

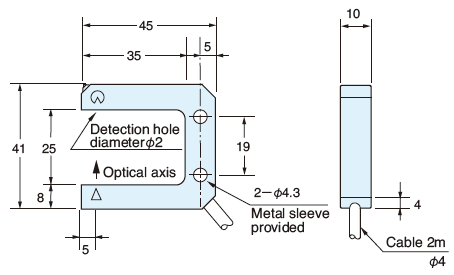

AS-U25

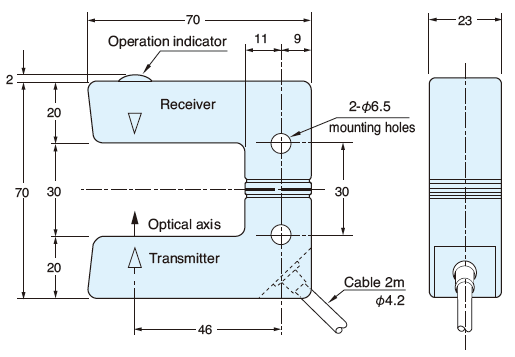

AS-U30

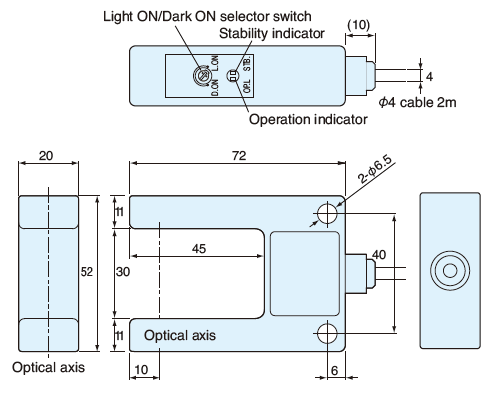

AS-U30M

NPN type
AS-U20
AS-U20D
AS-U25
AS-U25D
AS-U30
AS-U30D

PNP type
AS-U20PN
AS-U20DPN
AS-U25PN
AS-U25DPN
AS-U30PN
AS-U30DPN

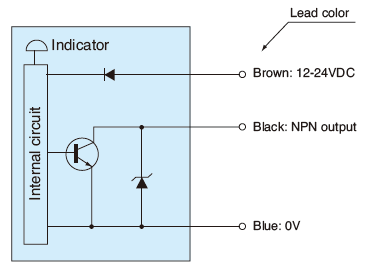

NPN type
AS-U30M

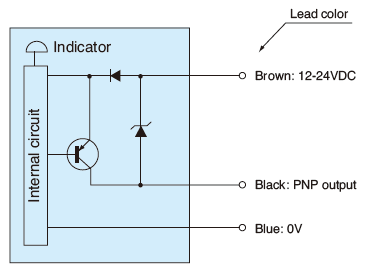

PNP type
AS-U30MPN
