Cylindrical Type

CX Series

  • M18 cylindrical type compatible with European Standards (CENELEC)
  • Polarized retroreflective type capable of detecting mirrorlike objects
    • Thorough short circuit protection
    • Water resistance of IP 66 achieved by resin molding
    • Dramatic improvement of environment resistance including prevention of damage and falling off electronic components caused by vibration and enhanced robustness
Contact us about this series

CX Series

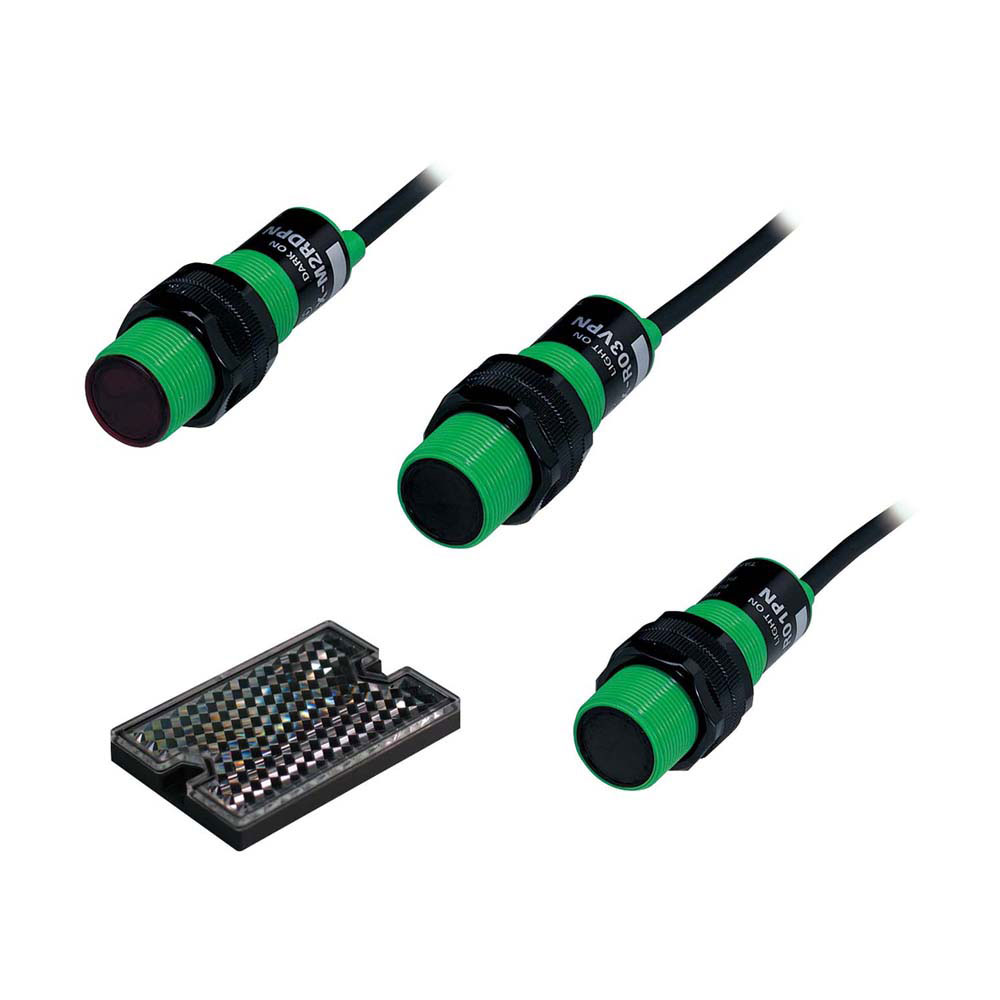

Model Detection method Detecting distance Power supply Output mode Protective structure
CX-M2RD Polarized retroreflective 2m 12 - 24V DC NPN IP66
Contact
CX-M2RDPN Polarized retroreflective 2m 12 - 24V DC PNP IP66
Contact
CX-R01 Diffuse reflective 100mm 12 - 24V DC NPN IP66
Contact
CX-R01PN Diffuse reflective 100mm 12 - 24V DC PNP IP66
Contact
CX-R03V Diffuse reflective 300mm 12 - 24V DC NPN IP66
Contact
CX-R03VPN Diffuse reflective 300mm 12 - 24V DC PNP IP66
Contact
CX-T3D Through beam 3m 12 - 24V DC NPN IP66
Contact
CX-T3DPN Through beam 3m 12 - 24V DC PNP IP66
Contact

Accessories

K-7

60 x 40mm Reflector for Polarized Retroreflective models

More Info

Notes on mounting

  • Excessive tightening torque may damage the thread of the nut to cause loosening. Make sure that the tightening torque is up to 0.98 N m.
  • This sensor does not allow adjustment of mounting angle once it is secured. Pay attention to the light axis especially for through-beam types to avoid misalignment.

NPN output

PNP output

  • The output transistor turns off when load short circuit or overload occurs. Check the load and turn the power back on.
  • A through beam transmitter has only power supply cables (brown: 12-24DVC, blue 0DVC).
