Quick Change AC/DC SENSORS

J Series

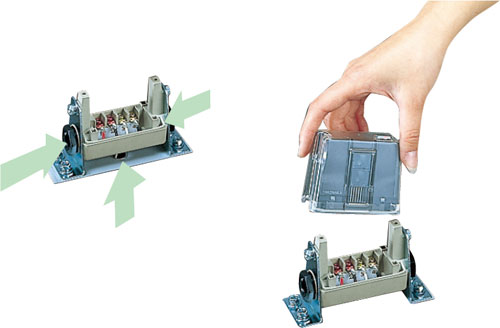

  • Quick replacement feature
  • 3 openings for cables
    • Metal and mirror-like objects are detected
    • Flat body integrating many functions
    • Offers much larger wiring space
Contact us about this series

J Series

Model Detection method Detecting distance Output mode Operation mode Protective structure
JRM3R Polarized retroreflective 0.03 - 3m Relay output 1a Light ON/Dark ON IP66
Contact
JRM3RF Polarized retroreflective 0.03 - 3m Relay output 1a Light ON/Dark ON + Timer function IP66
Contact
JR07 Diffuse reflective 700mm Relay output 1a Light ON/Dark ON IP66
Contact
JR07F Diffuse reflective 700mm Relay output 1a Light ON/Dark ON + Timer function IP66
Contact
JT10R Through beam 10m Relay output 1a Light ON/Dark ON IP66
Contact
JT10RF Through beam 10m Relay output 1a Light ON/Dark ON + Timer function IP66
Contact

Accessories

K-7

60 x 40mm Reflector for Polarized Retroreflective models

More Info

  • Metal and mirror-like objects are detected
  • Flat body integrating many functions
  • Offers much larger wiring space

Mounting bracket (accessory) attached

  • JIS B 0202 PF1/2 screws used
  • Compatible cable diameter: 9-11 mm
  • When using cable diameters of 6-8 mm, use optional bushings (JV7).

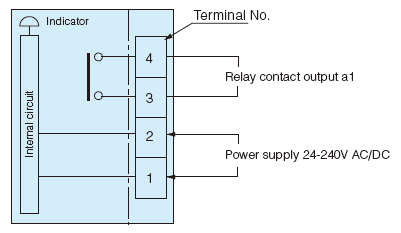

Relay output type
