Long range

NE2 Series

  • Standard embedded long range amplifier type with a focus on basic functionality and high quality
    • Longest detecting distance in this category
    • Through beam: 30m, 50m
    • Polarized retroreflective: 8m
    • Diffuse reflective: 1m
    • Background Suppression:500mm,700mm
    • With light emission inhibit function, which is useful for operation check or start-up inspection (through beam type only)
    • IP67 protective construction
    • Polarized retroreflective and diffuse reflective types with mutual interference prevention (up to two sensors)
    • Polarizing filter (separately available) enables two sensors to be installed very closely (for NE2-T30R-2)
    • NPN/PNP dual output
Contact us about this series

NE2 Series

Model Detection method Detecting distance Light source (wavelength) Connection Protective structure
NE2-D70-J2 Limited Range Reflective 70 - 700mm Infrared LED (880nm) M12 Connector IP67
Contact
NE2-M10R
Contact
NE2-M10R-J
Contact
NE2-M10R-J2 Polarized retroreflective 0.05 - 8m Red LED (700nm) M12 Connector IP67
Contact
NE2-M10R-2 Polarized retroreflective 0.05 - 8m Red LED (700nm) Attached cable IP67
Contact
NE2-R10-J
Contact
NE2-R10-J2 Diffuse reflective 1m Infrared LED (880nm) M12 Connector IP67
Contact
NE2-R10-2 Diffuse reflective 1m Infrared LED (880nm) Attached cable IP67
Contact
NE2-T30R Through beam 30m Infrared Attached cable
Contact
NE2-T30R-J Through beam 30m Infrared M12 Connector
Contact
NE2-T30R-J2 Through beam 30m Red LED (700nm) M12 Connector IP67
Contact
NE2-T50 Through beam 50m Infrared Attached cable
Contact
NE2-T50-J Through beam 50m Infrared M12
Contact
NE2-T50-J2 Through beam 50m Infrared LED (880nm) M12 Connector IP67
Contact

Accessories

K-71

43 x 23mm Reflector for Polarized Retroreflective models

K-8

47 x 47 mm Reflector for Polarized Retroreflective models

More Info

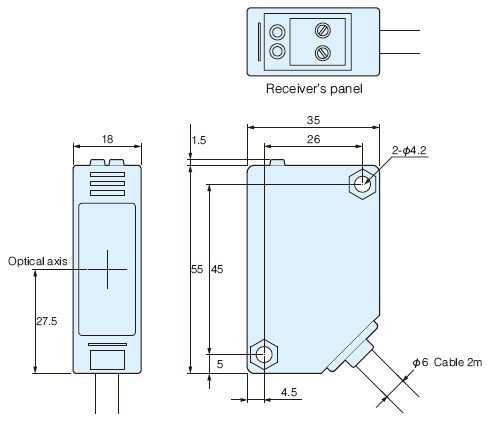

Cable type

Cable type

M12 Connector type

M12 Connector type Receiver, polarized reflective type, diffuse reflective type

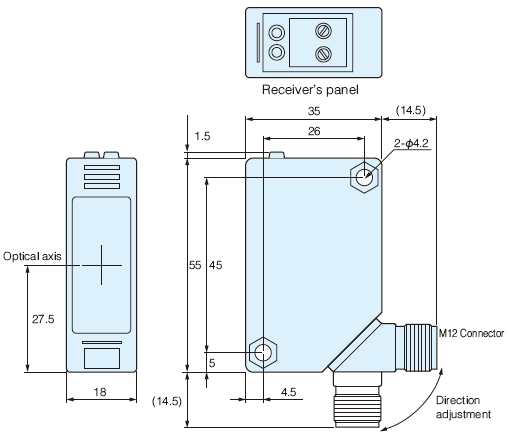

NE2-TR50-J
NE2-TR30R-J
NE2-M10R-J
NE2-R10-J

Cable type

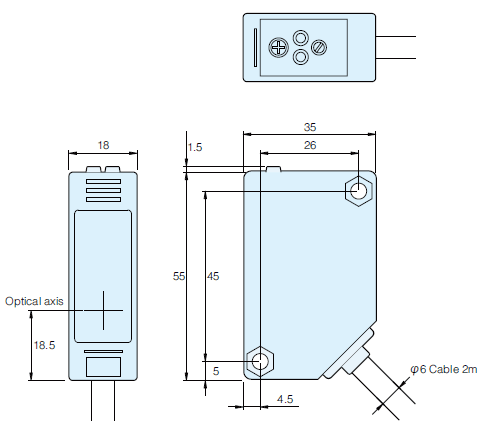

NE2-D70-2
NE2-D50R-2

Connector type

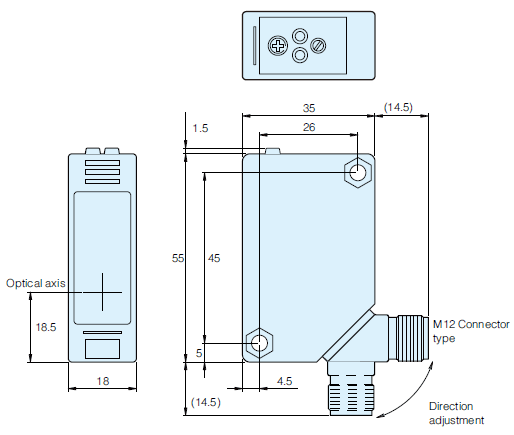

NE2-D70-J2
NE2-D50R-J2

Circuit

Connection

  • The output transistor turns off when load short circuit or overload occurs. Check the load and turn the power back on.
  • Circled numbers show the pin number of M12 connector type.
  • Models without the suffix "-2" are available with reverse pin assignment for PNP and NPN output.

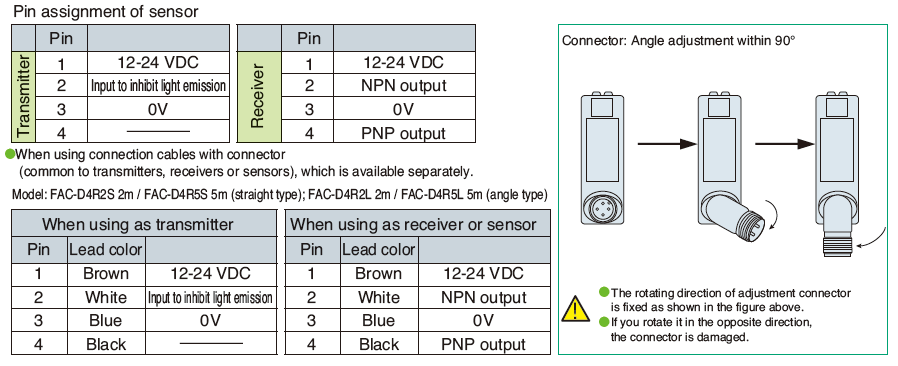

Pin assignment and connection of M12 connector type
