Ultra-Extreme Miniature

UX Series

  • Simple installation reduces man-hours.
  • Replacing fiber sensors contributes to lower power consumption.
  • Can be used in the battery industry thanks to its stainless steel housing.
  • Our line includes both straight and side view through- beam types.
  • Diffuse reflective type is equipped with sensitivity volume. (Model: UX-R5V, UX-R5VPN)
Contact us about this series

UX Series

Model Detection method Detecting distance Operation mode Output mode Protective structure
UX-R2 Diffuse reflective 3 - 20mm Light-ON NPN IP67
Contact
UX-R2PN Diffuse reflective 3 - 20mm Light-ON PNP IP67
Contact
UX-R3 Diffuse reflective 3 - 30mm Light-ON NPN IP67
Contact
UX-R3PN Diffuse reflective 3 - 30mm Light-ON PNP IP67
Contact
UX-R5 Diffuse reflective 3 - 50mm Light-ON NPN IP67
Contact
UX-R5PN Diffuse reflective 3 - 50mm Light-ON PNP IP67
Contact
UX-R5V Diffuse reflective 3 - 50mm Light-ON NPN IP67
Contact
UX-R5VPN Diffuse reflective 3 - 50mm Light-ON PNP IP67
Contact
UX-T50DS Through beam 500mm Dark-ON NPN IP67
Contact
UX-T50DSPN Through beam 500mm Dark-ON PNP IP67
Contact
UX-T100D Through beam 1m Dark-ON NPN IP67
Contact
UX-T100DPN Through beam 1m Dark-ON PNP IP67
Contact

More Info

Through-beam Straight type
UX-T100D

Through-beam Side-view type
UX-T50DS

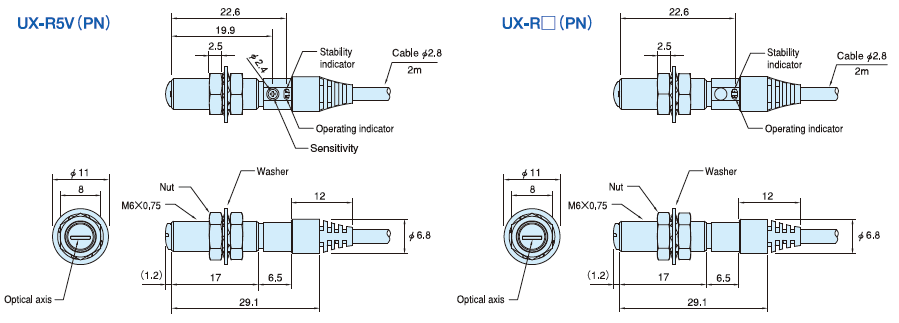

Diffuse reflective type

NPN output

PNP output

  • The transmitter for the through-beam type has a power supply cable only.
  • The output transistor becomes OFF when itNULLs short or overload.
    Make sure all connections are correct before turning the power on.
