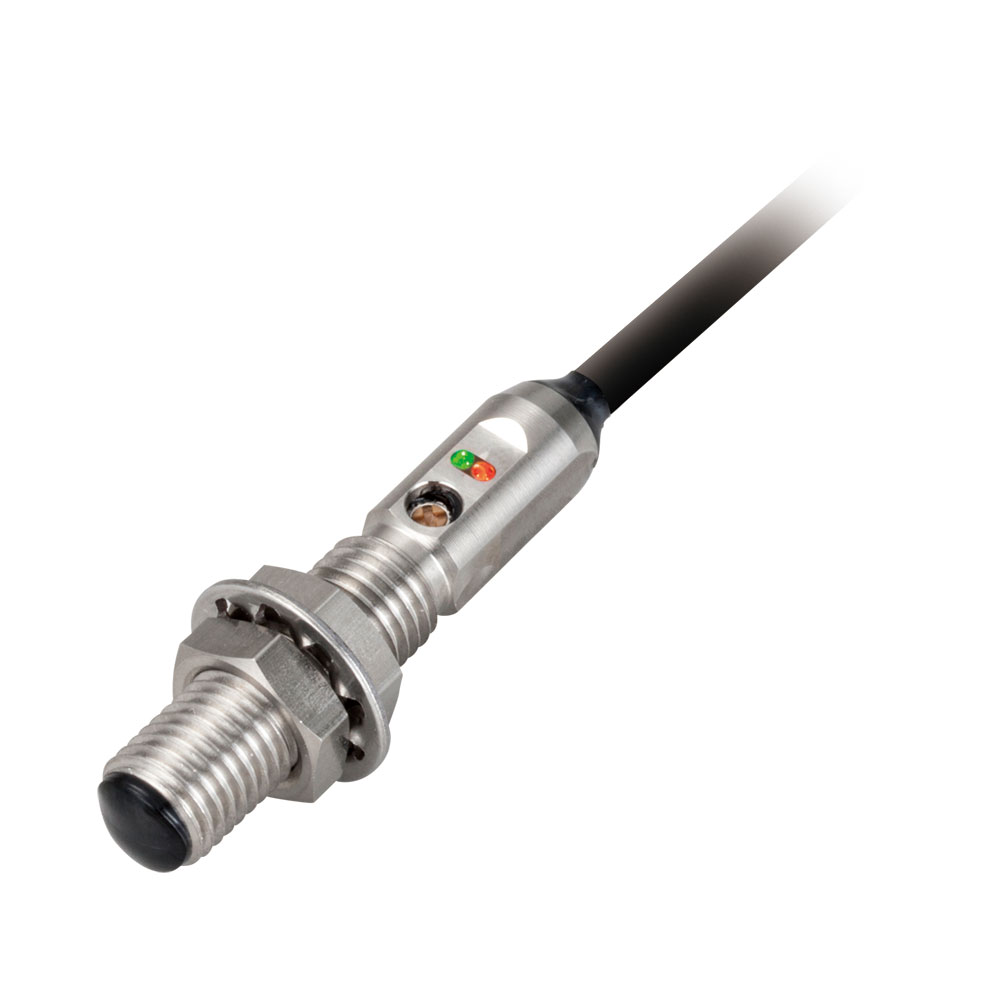

Takex UX3-R5V, UXR5VPN Photoelectric Sensor
Ultra-extreme Miniature

UX3 Series

  • Integrated Amplifier; as easy as using a Fiber Sensor
  • Ultra-small M6 size
  • Stainless Steel housing
  • Sensitivity adjustment for fine tuning
Contact us about this series

Downloads

Datasheet

UX3 Series

Model Detection method Detecting distance Operation mode Output mode Protection rating
UX3-R5V Diffuse reflective 3 to 50mm Light ON NPN output IP67
Contact
UX3-R5VPN Diffuse reflective 3 to 50mm Light ON PNP output IP67
Contact

More Info

UX3-R5V

UX3-R5VPN

NPN Output

PNP Output
