UV Flame Sensors

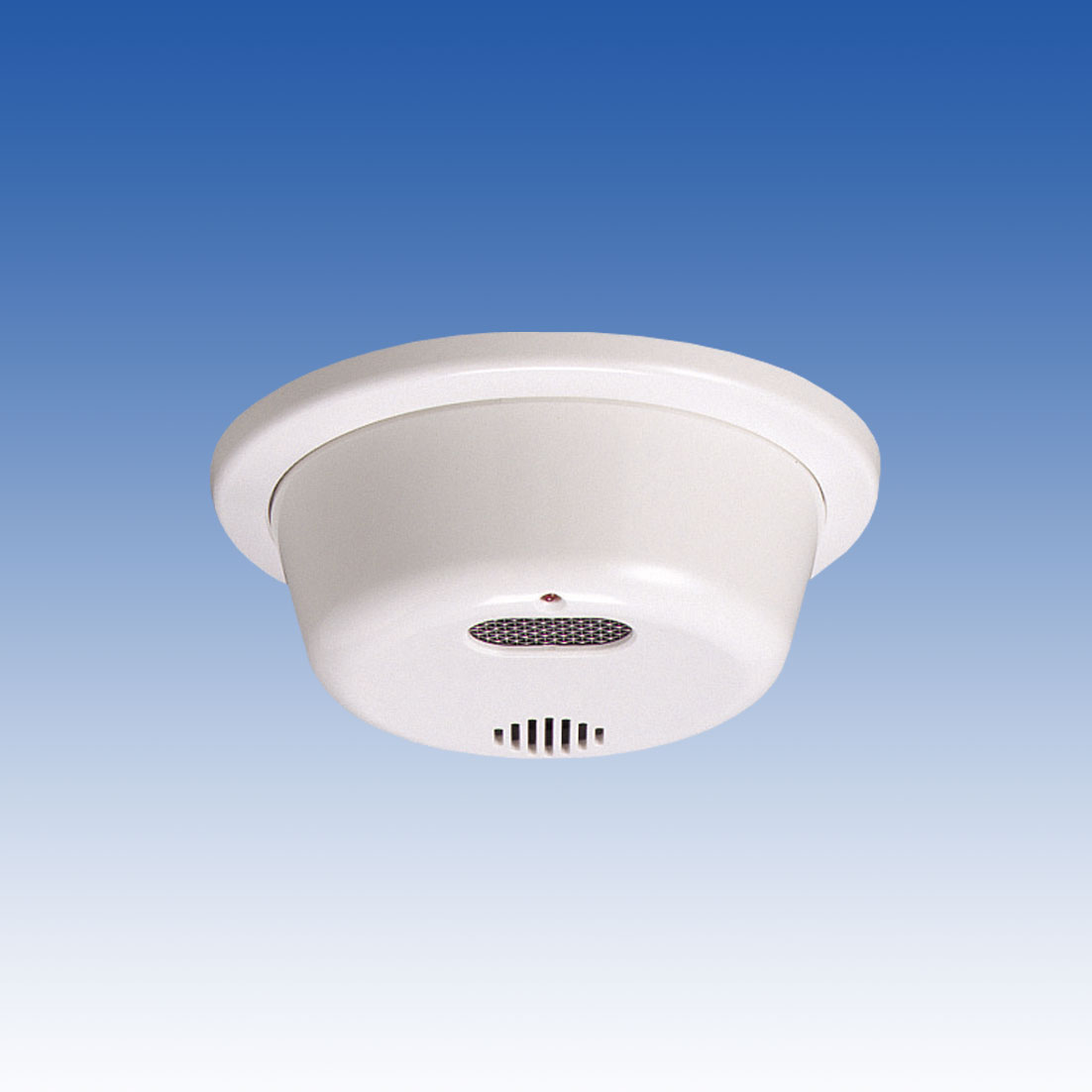

FS-1000E

The FS-1000E sensor quickly detects ultraviolet rays contained in flames and activates a built-in alarm sound plus an open collector output.

Model	Detection system	Coverage	Supply voltage	Current consumption
FS-1000E	Ultraviolet	10m / 33ft	AA (LR6) / 9 - 30V DC	50mA	Contact

High sensitivity ultraviolet flame sensor

Detachable base unit with snap-in-out sensor design

Built-in sounder

NO/NC relay output

Adjustable response time

Battery (2x AA type-3 alkaline) or DC operation

Adjustable Wall/Ceiling Mount Bracket
