Universal Power Supply

NE Series

  • Ultimate simplicity
  • Smallest of all AC/DC power supply models (18×55×35㎜)
    • Longest-in-class detecting distance for accurate detection
    • Polarized retroreflective type allows stable detection of mirror-like objects
    • Red LED for easy adjustment (through beam type, polarized retroreflective type)
    • Dramatically improved stability with original photo IC
    • Capable of adjacent installation with polarizing filter (optional) (through beam type)
Contact us about this series

Downloads

Manual

NE Series

Model Detection method Detecting distance Operation mode Connection Protective structure
NE-M5R Polarized retroreflective 0.03 - 5m Light ON Attached cable IP66
Contact
NE-M5R-J Polarized Retroreflective 5m Light On Cable with connector
Contact
NE-M5RD Polarized retroreflective 0.03 - 5m Dark ON Attached cable IP66
Contact
NE-M5RD-J Polarized Retroreflective 5m Dark On Cable with connector
Contact
NE-R10 Diffuse reflective 1m Light ON Attached cable IP66
Contact
NE-R10-J Diffuse reflective 1m Light ON M8 Connector
Contact
NE-R10D Diffuse reflective 1m Dark ON Attached cable IP66
Contact
NE-T10R Through beam 10m Light ON Attached cable IP66
Contact
NE-T10R-DC Through beam 10m Dark ON Attached cable IP66
Contact
NE-T10R-J Through beam 10m Light ON M8 Connector
Contact
NE-T10RD-J Through beam 10m Dark ON M8 Connector
Contact
NE-T30 Through beam 30m Light ON Attached cable IP66
Contact
NE-T30-J Through beam 30m Light ON M8 Connector
Contact
NE-T30D Through beam 30m Dark ON Attached cable IP66
Contact
NE-T30D-J Through beam 30m Dark On M8 Connector
Contact

Accessories

K-7

60 x 40mm Reflector for Polarized Retroreflective models

K-71

43 x 23mm Reflector for Polarized Retroreflective models

S-510G

100 x 50mm Reflector for Polarized Retroreflective models

More Info

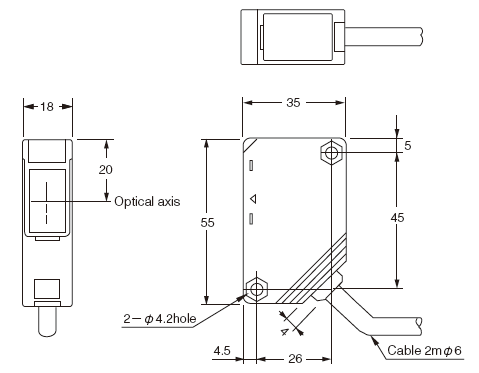

Cable type

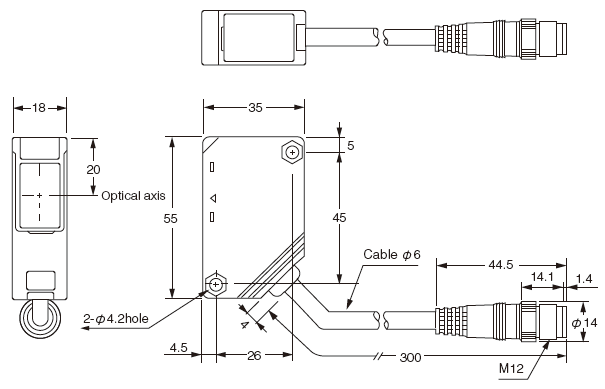

Attached cable with connector (-J) type

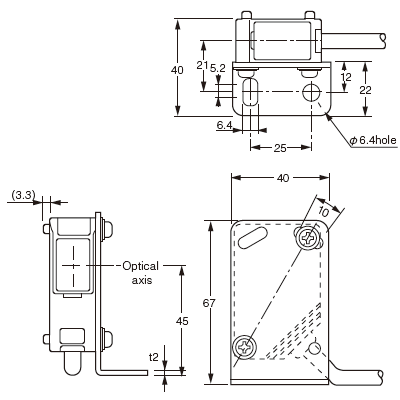

With mounting bracket NE-B1 attached (vertical)

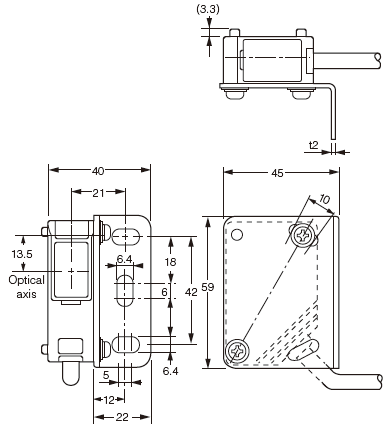

With mounting bracket NE-B2 attached (vertical)

  • The NE Series sensors are not provided with mounting brackets, however two types of brackets are available as an option. (Bolts and nuts for mounting are provided with an optional mounting bracket)
  • The tightening torque for the sensor body and mounting bracket should be 0.8 N m max.

Transmitter of the through beam type only has power supply lines.

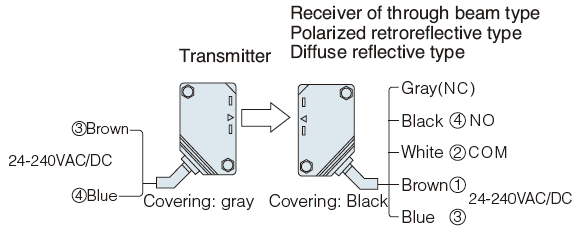

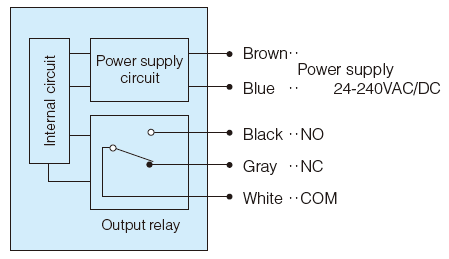

Connection

  • Circled numbers show connector pin Nos. for -J type
  • The output of -J type is 1a.
