Variable Range

DL Series

  • Long distance 1m, 2m
  • Terminal block offering fully open space for wiring
Contact us about this series

Downloads

Manual

DL Series

Model Detecting distance Power supply Output mode Connection Protective structure
DL-S100P 0.2 - 1m 24 - 240V AC/DC Relay output 1a Terminals IP65
Contact
DL-S100TC 0.2 - 1m 12 - 24V DC NPN/PNP Terminals IP65
Contact
DL-S200P 0.2 - 2m 24 - 240V AC/DC Relay output 1a Terminals IP65
Contact
DL-S200TC 0.2 - 2m 12 - 24V DC NPN/PNP Terminals IP65
Contact

More Info

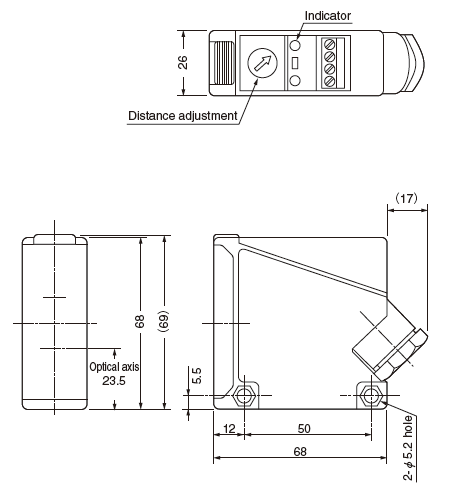

All models

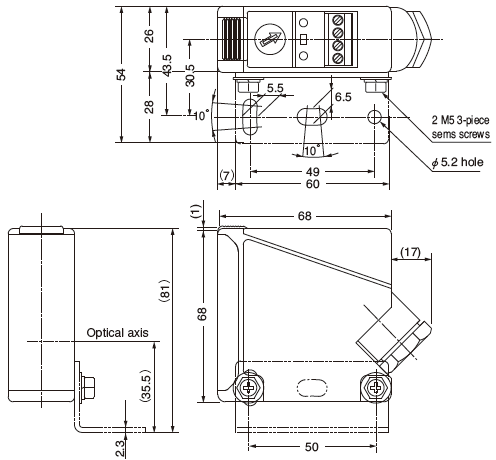

With mounting bracket provided attached

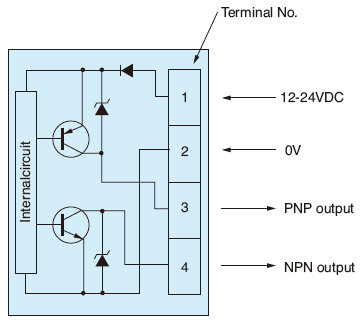

DL-S100TC
DL-S200TC

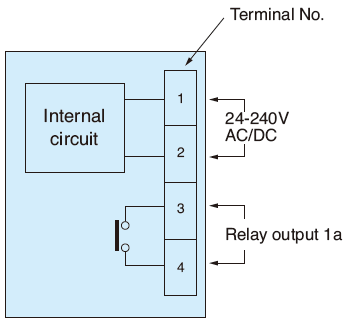

DL-S100P
DL-S200P
