Bin-picking sensors SSP-T200 Series
Through beam for Bin-Picking System Light curtain sensors

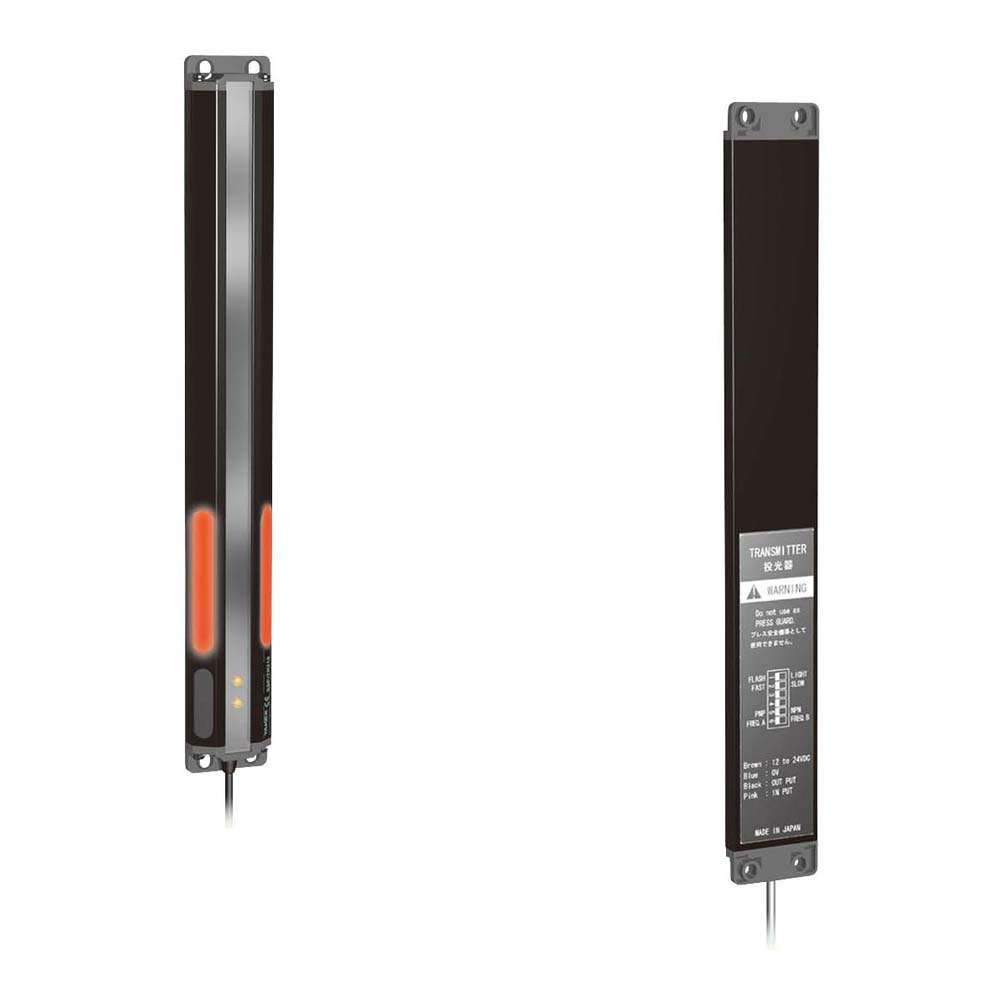

SSP-T200 Series

  • Suitable to use as part of a binpicking system to avoid mispicks.
  • Thinness of 13 mm achieved with rigid metal case
  • Large job indicator (job light)
  • Faulty job indicator (fault light) is provided
  • 4 types are available for different sizes of parts bins
  • Requiring no synchronization line
    Asynchronous method employed, eliminating need for synchronization line
Contact us about this series

SSP-T200 Series

Model Connection Detection method Light source Operation mode Output mode Power supply Response time
SSP-T205 outer diameter: dia. 4.1 mm, Transmitter: 0.2mm^2 x 3 cores, 2m, (gray)
Receiver: 0.2mm^2 x 4 cores, 2m, (black)
 Through beam Infrared LED (wavelength : 880nm) Light ON/Dark ON selectable (with switch) Control output : Selectable between NPN output and PNP output with switch
Rating : Sink current 50mA (30VDC) or less / Residual voltage: 2V or less		 12-24VDC ±10% / Ripple 10% or less Normal:
Light reception: 35 ms or less
Light blocking: 25 ms or less
With frequency switching
feature enabled:
Light reception: 45 ms or less
Light blocking: 28 ms or less
Contact
SSP-T205-PJ Cable with M12 4 pin connector pigtail, 0.3m
transmitter: gray / receiver: black		 Through beam Infrared LED (wavelength : 880nm) Light ON/Dark ON selectable (with switch) Control output : Selectable between NPN output and PNP output with switch
Rating : Sink current 50mA (30VDC) or less / Residual voltage: 2V or less		 12-24VDC ±10% / Ripple 10% or less Normal:
Light reception: 35 ms or less
Light blocking: 25 ms or less
With frequency switching
feature enabled:
Light reception: 45 ms or less
Light blocking: 28 ms or less
Contact
SSP-T210 outer diameter: dia. 4.1 mm, Transmitter: 0.2mm^2 x 3 cores, 2m, (gray)
Receiver: 0.2mm^2 x 4 cores, 2m, (black)
 Through beam Infrared LED (wavelength : 880nm) Light ON/Dark ON selectable (with switch) Control output : Selectable between NPN output and PNP output with switch
Rating : Sink current 50mA (30VDC) or less / Residual voltage: 2V or less		 12-24VDC ±10% / Ripple 10% or less Normal:
Light reception: 68 ms or less
Light blocking: 42 ms or less
With frequency switching
feature enabled:
Light reception: 74 ms or less
Light blocking: 52 ms or less
Contact
SSP-T210-PJ Cable with M12 4 pin connector pigtail, 0.3m
transmitter: gray / receiver: black		 Through beam Infrared LED (wavelength : 880nm) Light ON/Dark ON selectable (with switch) Control output : Selectable between NPN output and PNP output with switch
Rating : Sink current 50mA (30VDC) or less / Residual voltage: 2V or less		 12-24VDC ±10% / Ripple 10% or less Normal:
Light reception: 68 ms or less
Light blocking: 42 ms or less
With frequency switching
feature enabled:
Light reception: 74 ms or less
Light blocking: 52 ms or less
Contact
SSP-T213 outer diameter: dia. 4.1 mm, Transmitter: 0.2mm^2 x 3 cores, 2m, (gray)
Receiver: 0.2mm^2 x 4 cores, 2m, (black)
 Through beam Infrared LED (wavelength : 880nm) Light ON/Dark ON selectable (with switch) Control output : Selectable between NPN output and PNP output with switch
Rating : Sink current 50mA (30VDC) or less / Residual voltage: 2V or less		 12-24VDC ±10% / Ripple 10% or less Normal:
Light reception: 70 ms or less
Light blocking: 42 ms or less
With frequency switching
feature enabled:
Light reception: 88 ms or less
Light blocking: 54 ms or less
Contact
SSP-T213-PJ Cable with M12 4 pin connector pigtail, 0.3m
transmitter: gray / receiver: black		 Through beam Infrared LED (wavelength : 880nm) Light ON/Dark ON selectable (with switch) Control output : Selectable between NPN output and PNP output with switch
Rating : Sink current 50mA (30VDC) or less / Residual voltage: 2V or less		 12-24VDC ±10% / Ripple 10% or less Normal:
Light reception: 70 ms or less
Light blocking: 42 ms or less
With frequency switching
feature enabled:
Light reception: 88 ms or less
Light blocking: 54 ms or less
Contact
SSP-T216 outer diameter: dia. 4.1 mm, Transmitter: 0.2mm^2 x 3 cores, 2m, (gray)
Receiver: 0.2mm^2 x 4 cores, 2m, (black)
 Through beam Infrared LED (wavelength : 880nm) Light ON/Dark ON selectable (with switch) Control output : Selectable between NPN output and PNP output with switch
Rating : Sink current 50mA (30VDC) or less / Residual voltage: 2V or less		 12-24VDC ±10% / Ripple 10% or less Normal:
Light reception: 94 ms or less
Light blocking: 58 ms or less
With frequency switching
feature enabled:
Light reception: 116 ms or less
Light blocking: 72 ms or less
Contact
SSP-T216-PJ Cable with M12 4 pin connector pigtail, 0.3m
transmitter: gray / receiver: black		 Through beam Infrared LED (wavelength : 880nm) Light ON/Dark ON selectable (with switch) Control output : Selectable between NPN output and PNP output with switch
Rating : Sink current 50mA (30VDC) or less / Residual voltage: 2V or less		 12-24VDC ±10% / Ripple 10% or less Normal:
Light reception: 94 ms or less
Light blocking: 58 ms or less
With frequency switching
feature enabled:
Light reception: 116 ms or less
Light blocking: 72 ms or less
Contact

More Info

SSP-T200 series

SSP-T200-PJ series

Protective cover

Use the mode switch to select NPN/PNP for output and job indicator input.

Connection

  • Cable extension
    To extend the cable, use wires of at least 0.5mm^2 and limit the length to within 100m for transmitter and receiver.
