Quick Installation! Easy Setup! Light Source ON/OFF Promotes automation of visual inspections.
![](/storage/content-images/diagrams/ProductSeriesDocumentImageFile_Feature_BS-R80_01_en.jpg)
Features of BS-R80
- Stable detection even from weak light sources
- The slightest contrast can be detected
A wide dynamic range covering bright to low level light sources (refer to *1)
- “Visualizes” the setting values (“Good Product” range)
- Large, easy-to-read indicator
![](/storage/content-images/diagrams/ProductSeriesDocumentImageFile_Feature_BS-R80_02.jpg)
- Stable detection even with high-speed inspections
- 1ms response time

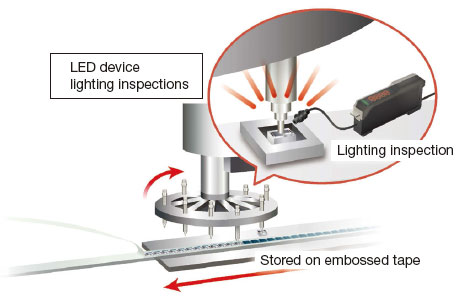

![](/storage/content-images/diagrams/ProductSeriesDocumentImageFile_Feature_BS-R80_03_en.jpg)

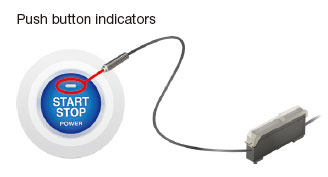

- Fiber-type sensor enables flexible installation in any space
- Pin-point detection
Fibers selectable according to applications
![](/storage/content-images/diagrams/ProductSeriesDocumentImageFile_Feature_BS-R80_04_en.jpg)

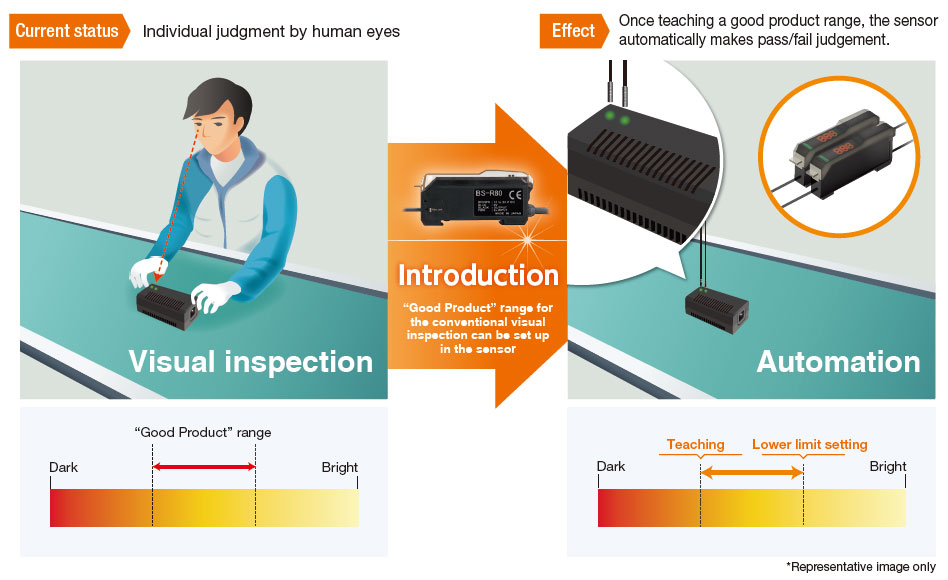

Automates visual inspections
![Automates visual inspections](/storage/content-images/diagrams/ProductSeriesDocumentImageFile_Feature_BS-R80_05_en.jpg)

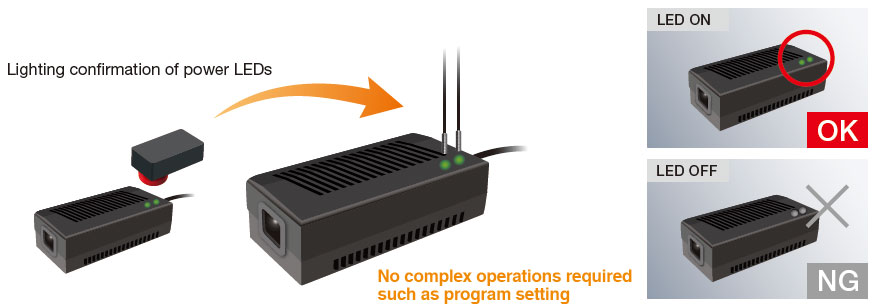

Easy Introduction
Cost effective compared to image sensors for confirming that multiple LEDs are lit. Also easy to setup and install.
![Easy Introduction](/storage/content-images/diagrams/ProductSeriesDocumentImageFile_Feature_BS-R80_06_en.jpg)

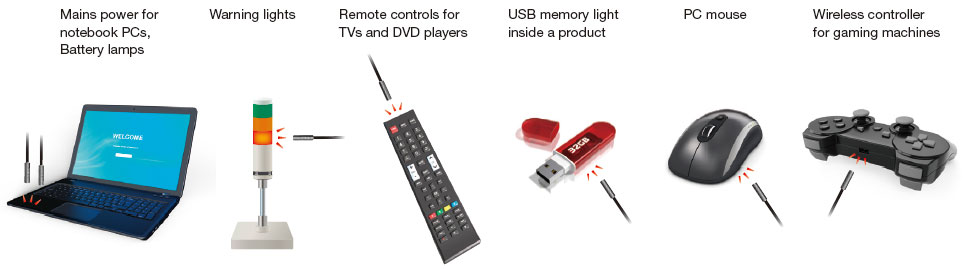

Case Studies
![Case Studies](/storage/content-images/diagrams/ProductSeriesDocumentImageFile_Feature_BS-R80_07_en.jpg)

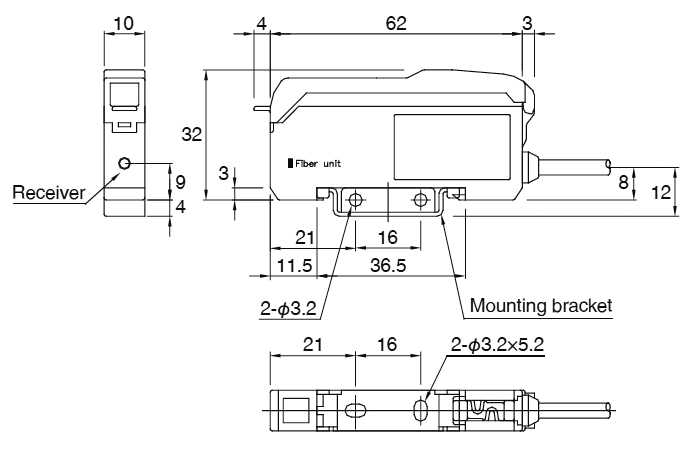

BS-R80 (in mm)
![](/storage/content-images/diagrams/ProductSeriesDocumentImageFile_Dim_BS-R80_en.gif)

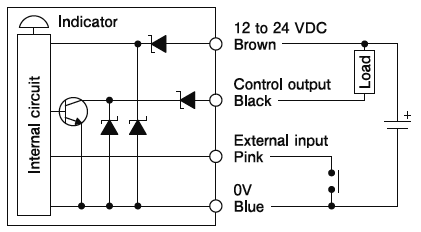

NPN output mode
Control output (NPN)
External input (teaching)
![](/storage/content-images/diagrams/ProductSeriesDocumentImageFile_Cir_BS-R80_NPN_en.gif)

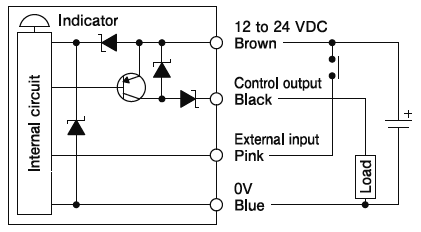

PNP output mode
Control output (PNP)
External input (teaching)
![](/storage/content-images/diagrams/ProductSeriesDocumentImageFile_Cir_BS-R80_PNP_en.gif)
* When not using the external input, connect the external input cable (pink) to 12 to 24 VDC in NPN mode and to 0V in PNP mode.
