RGB Only
CS-R80 Series
- Identifies the color proportion by analyzing light into three primary colors: red, green, and blue
- Helpful for checking LED colors
- Resolving power: 0.1%
Color / Mark Sensors
CS-R80 Series
More Info
Figures below show examples in which the sensor checks whether a different color LED exists, whether each LED turns on, and whether the light emission qualities of LEDs are appropriate, using CS-R80 and CST-R80 together.
LED wavelength properties which can be distinguished (Typical)

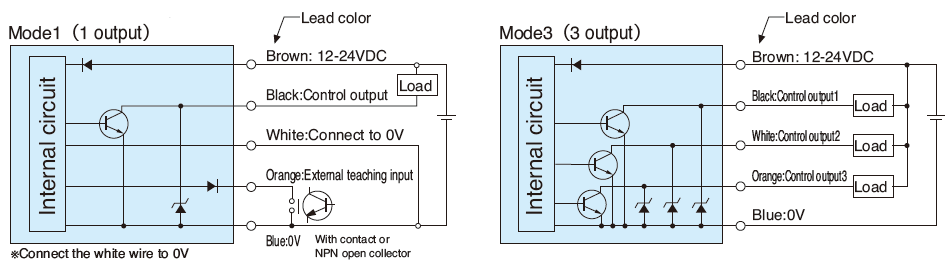

CS-R80

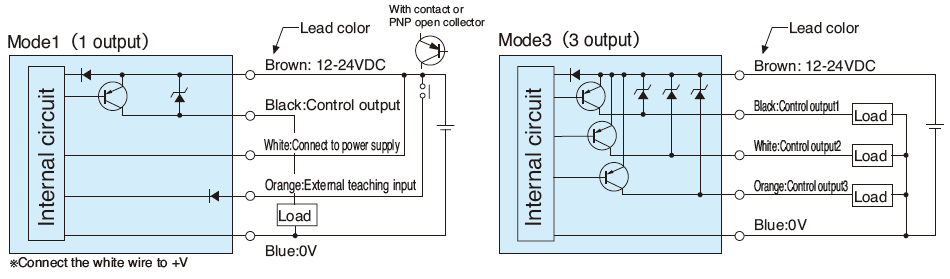

CS-R80PN
NPN output
PNP output
