Color / Mark Sensors CST-R80 Series
RGB + Brightness

CST-R80 Series

  • Identifies the color proportion and brightness of LEDs by analysing light into three primary colors: red, green, and blue
  • Equipped with two separate outputs for RGB composition values and brightness
  • Resolving power: 0.01% color proportion and 0.1% brightness
Contact us about this series

CST-R80 Series

Model Detection method Response time Output mode
CST-R80 RGB color composition / Brightness 50ms or less NPN
Contact
CST-R80PN RGB color composition / Brightness 50ms or less PNP
Contact

More Info

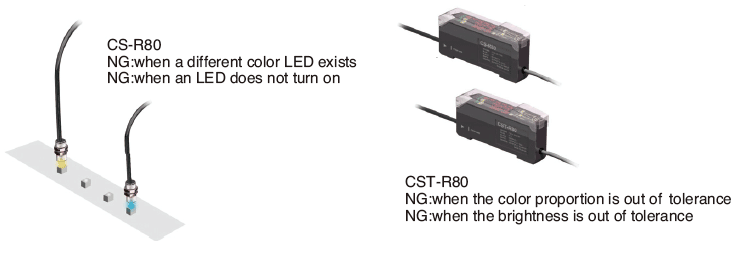

Figures below show examples in which the sensor checks whether a different color LED exists, whether each LED turns on, and whether the light emission qualities of LEDs are appropriate, using CS-R80 and CST-R80 together.

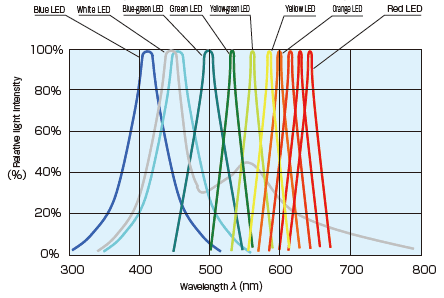

LED wavelength properties which can be distinguished (Typical)

LED wavelength properties which can be distinguished (Typical)

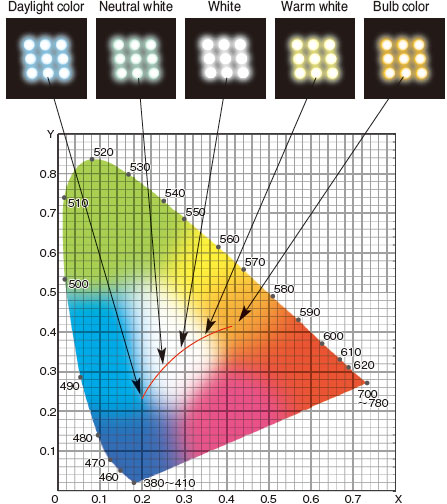

White LED which CST-R80 can identify

White LED which CST-R80 can identify

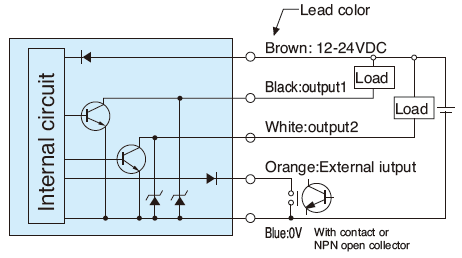

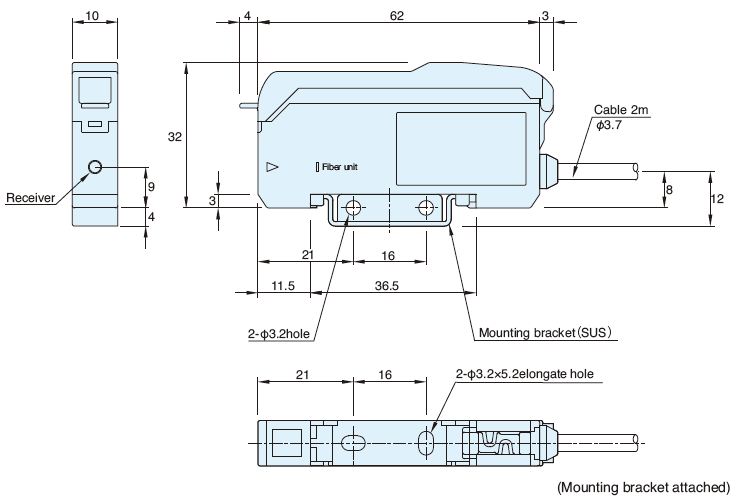

CST-R80

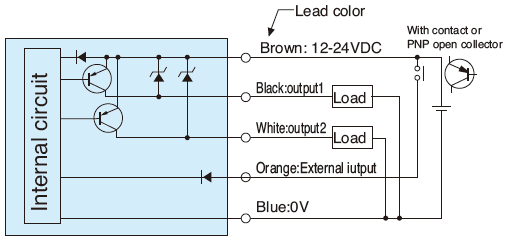

CST-R80PN

NPN output

PNP output
