Fine Color/Light Intensity

CST-R85

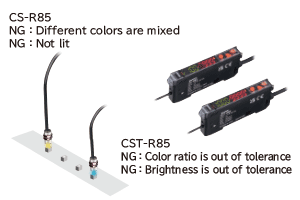

Discriminates visually-hard-to-identify differences in LED color ratio down to 0.01%.

High resolution discrimination of differences in color ratio and brightness of LEDs that have the same color Integrable into LED inspection equipment

Model	Detection method	Response time	Output mode
CST-R85	ID of color ratios and brightness	10 ms or less	NPN/PNP	Contact

Discriminates visually-hard-to-identify differences in LED color ratio down to 0.01%

Supports pulse lighting LED light sources

Output is changeable between NPN/PNP

Teaching via remote operation is available

CST-R85 | Product Showcase

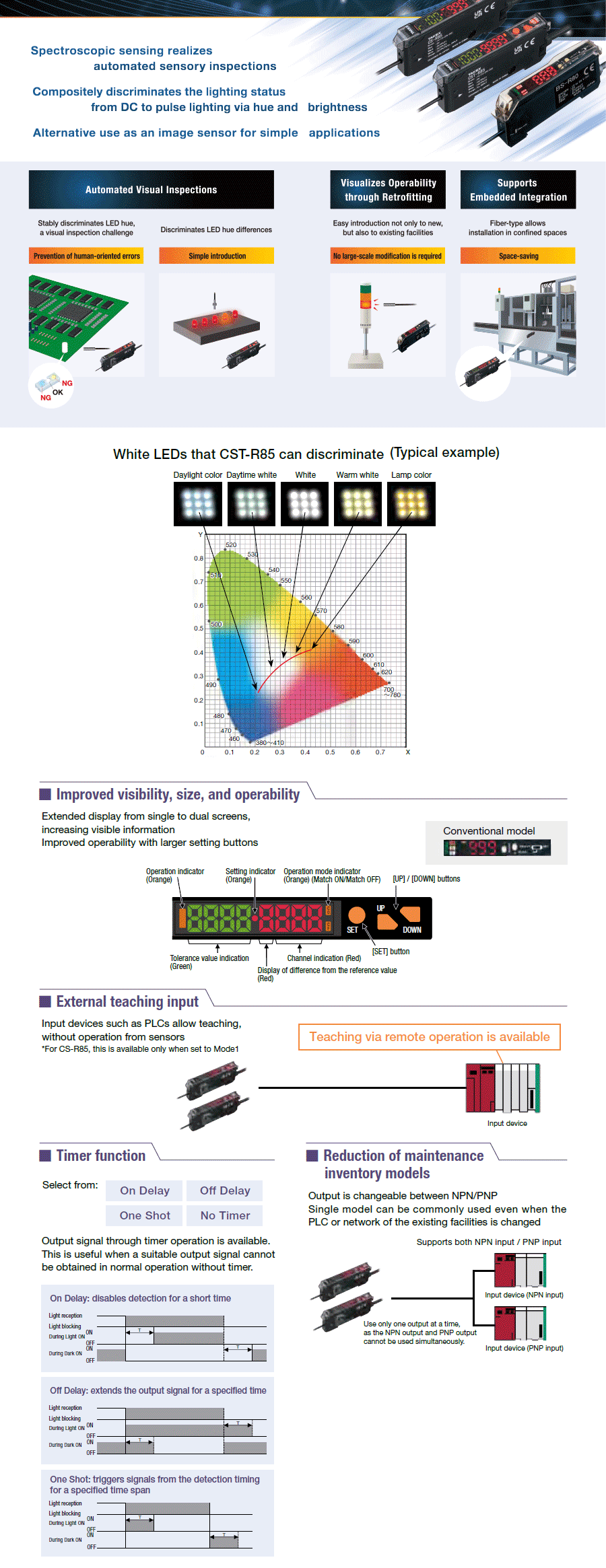

CST-R85 Features

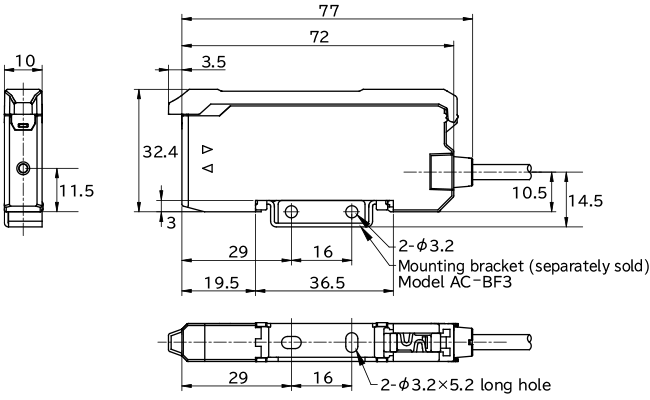

CST-R85 (with the mounting bracket attached)

NPN Output

PNP Output
