U-Shaped Mark Sensor

MU10 Series

For detection of marks on edge of transparent or translucent film

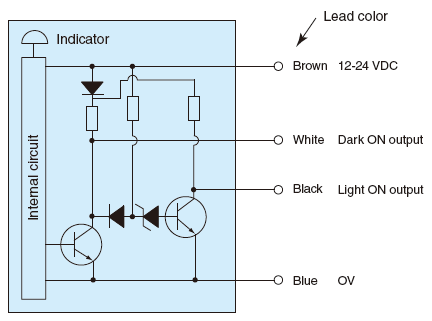

Both Light ON and Dark ON outputs available
- U-shaped sensor requiring no light axis alignment, eliminates the possibility of misalignment caused by vibration

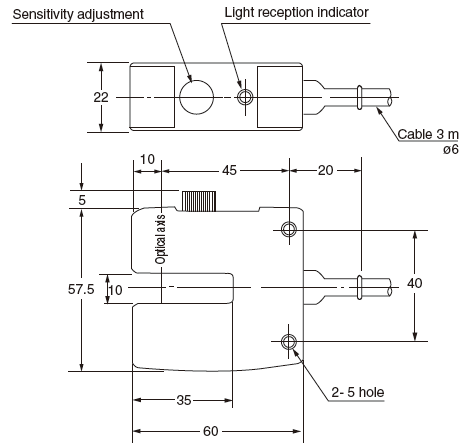

- Distance: 10 mm fixed
- Light reception indicator and easy-to-use sensitivity adjustment provided
- Excellent resistance to noise

Model	Light source	Detection interval	Response time
MU10N	Green LED (570nm)	10 mm fixed	3 ms or less	Contact

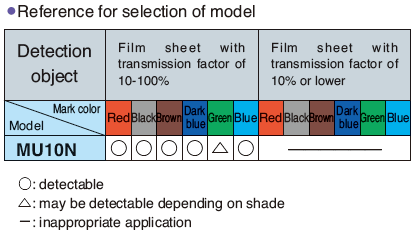

Reference for selection of model

Detection may not succeed depending on the shading. Be sure to provide samples.

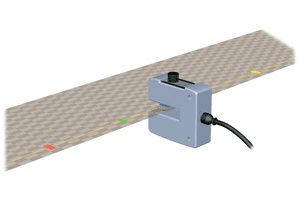

The U-shaped sensor detects register marks on wrapping paper with no need to adjust optical axes.
