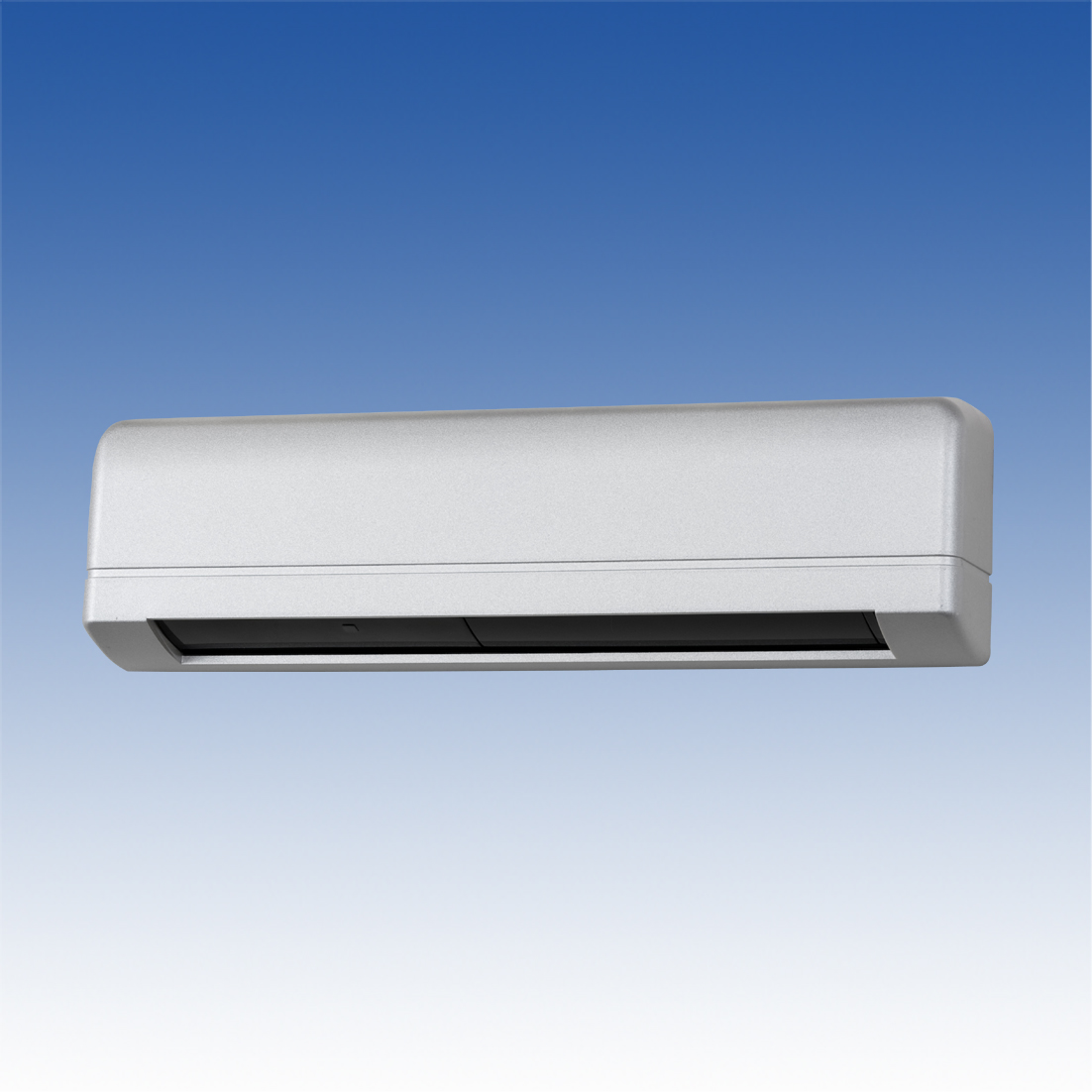

Door Sensor
DA-303S
The DA-303S series Auto Door Sensor uses near infra-red beams (High-Density: 32 Zones/4 Rows) to detect the movement of a human or object to output a signal to an auto-door engine.
Door Sensors
DA-303S
Contact us about this series
DA-303S
| Model | Detection system | Mounting height | Width area setting | Supply voltage | Current consumption | |
|---|---|---|---|---|---|---|
| DA-303S | Active near infrared | 3m / 10ft | Normal / Narrow | DC12 ～ AC110V | 80mA / 2.4VA |
Features
Auto door sensor
Near infrared beam type
High-density detection pattern
Easily disable rows to meet any detection requirement
Adjustable pattern width (for single/double doors)
4-step stationary detection (inc. infinite)
4 selectable channels to prevent crosstalk
4 selectable environment sensitivity settings
Slim and compact 28mm (1.10”) profile
Suitable for AC/DC operation
