Dual Display

F85RN Series

A multi-function sensor of excellent operability

  • NPN / PNP dual output
  • Simple teaching using a single button
  • Large easy-to-read display
  • Mutual interference prevention function
  • Two types of display options available
Contact us about this series

F85RN Series

Model Light source (wavelength) Response time Display Wiring Protective structure
F85RN Red LED (660 nm) H: 65 μs
S: 500 μs
L: 4 ms
4-digit Red
+ 4-digit Green LED
Attached cable IP40
Contact

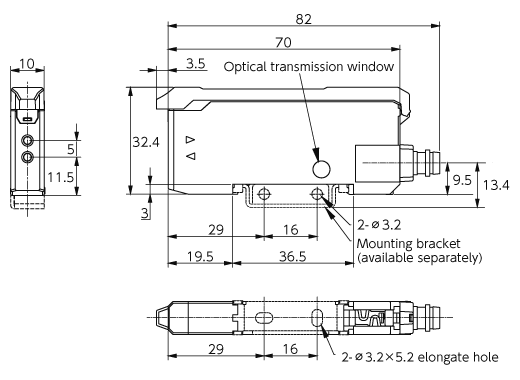

F85RNP-J Red LED (660 nm) H: 65 μs
S: 500 μs
L: 4 ms
4-digit Red
+ 4-digit Green LED
M8 connector IP40
Contact

More Info

User-friendly operability with essential functions

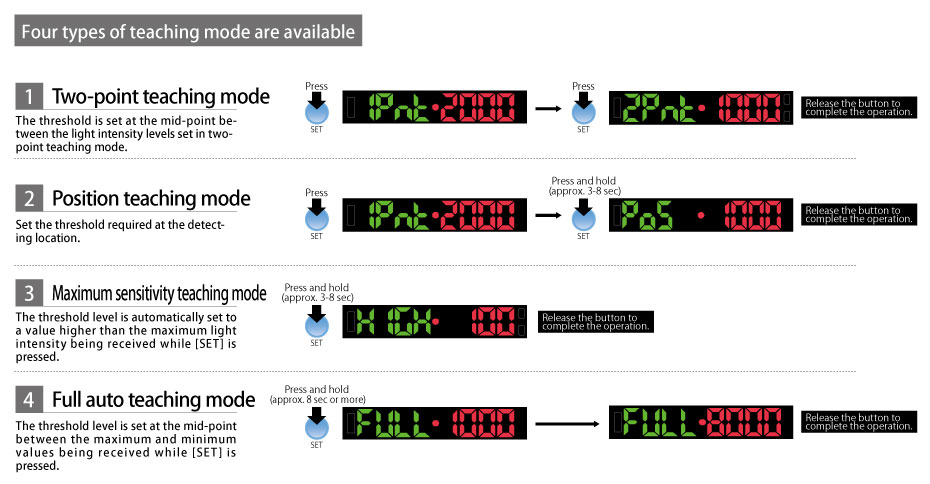

1. Simple teaching using a single button
Simple teaching using a single button Simple to sequentially select from four teaching modes using the [SET] button.
Four types of teaching mode are available

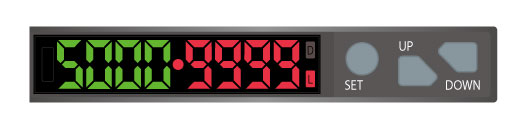

2. Easy to use with a large display and only three operation buttons
Two large clear 4-digit, 7-segment LED displays and three raised buttons with positive click feedback, making mode setting easy.
Easy to use with a large display and only three operation buttons

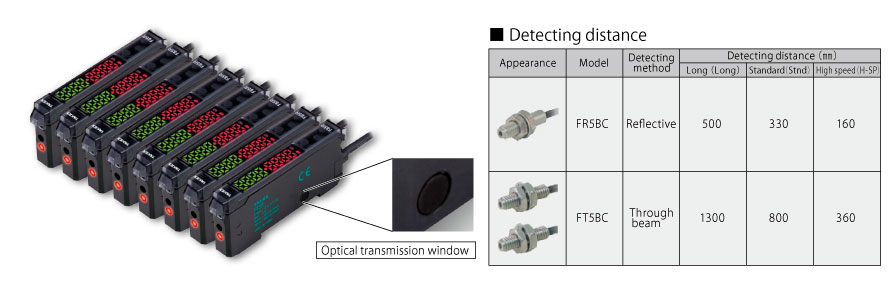

3. Mutual interference prevention function
Equipped with an optical transmission type mutual interference prevention function to suppress the interference between up to eight units. (Standard and Long mode)
Mutual interference prevention function

Useful functions

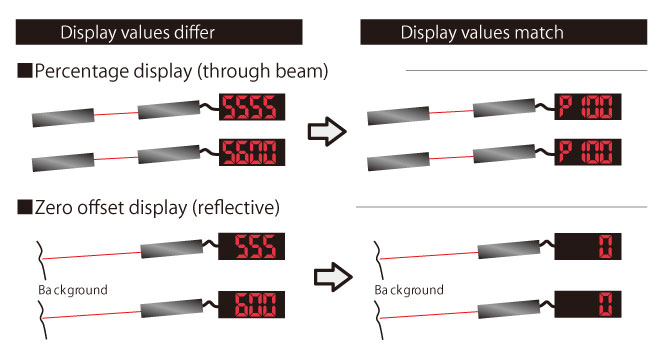

4. Two types of display options available

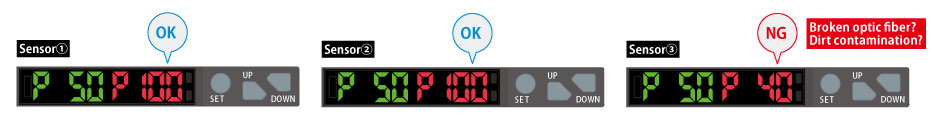

Light intensity received by two or more sensors can be easily read and compared by two displacement display options: Percentage for Through Beam type, and Zero Offset for Reflective type.

Detection allowance can be checked by comparing the percentage values of each sensor operation through the displacement display.
(The below examples show deterioration in detection allowance of Through Beam type.)

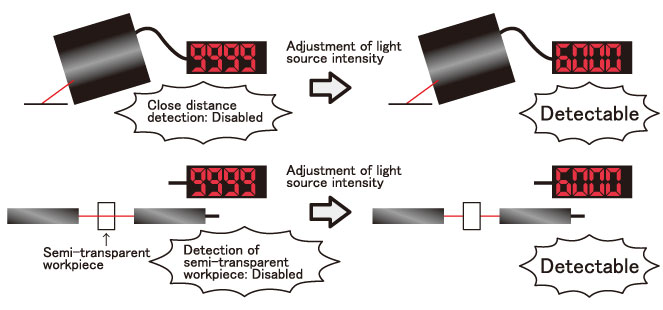

5. Light source intensity adjustment (Automatic/Manual)
Light intensity is adjusted to an optimum level for detection among 15 stages (13 stages at high-speed mode).

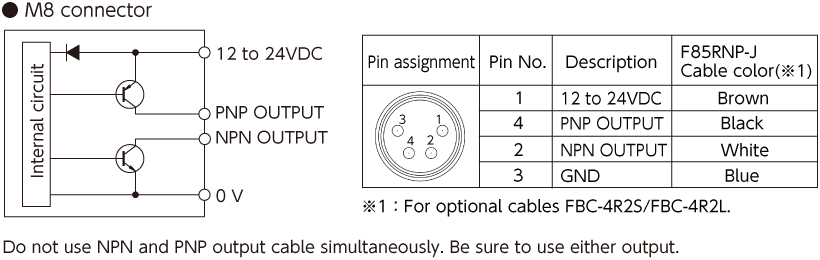

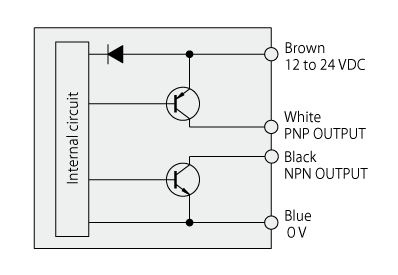

6. NPN/PNP dual output
As both connection types for the control output are available, configuring the output as PNP or NPN is not necessary.
7. An energy-saving design and ECO mode realize low power consumption
24V normal mode : 770 mW or less / ECO mode: 600 mW or less

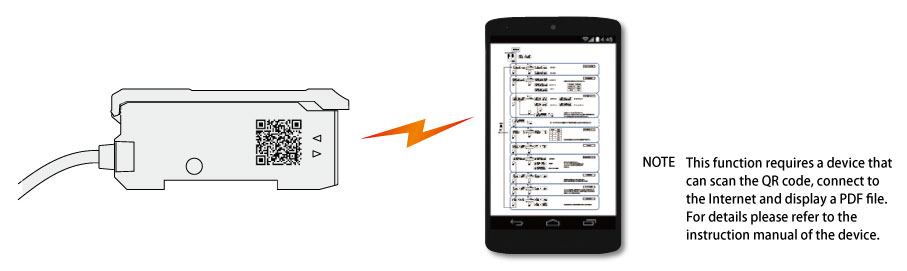

8. Manuals can be viewed on smartphones or tablets
The sensor comes with a QR code label and a quick reference guide is available on your smartphone or tablet (Japanese, English, Chinese, and Korean versions available). This is useful when checking the manual or changing the settings at installation site.
Manuals can be viewed on smartphones or tablets

F85RN

F85RNP-J

F85RN

F85RNP-J
