Slim Type

SS10 Series

  • Beam interval: 10mm
  • Anti Interference feature for parallel installation (M/S switching)
Contact us about this series

SS10 Series

Model Detecting width Optical axis interval Detecting object Output mode Protective structure
SS10-T16 150mm 10mm Opaque φ17mm or more NPN IP66
Contact
SS10-T16-PN 150mm 10mm Opaque φ17mm or more PNP IP66
Contact
SS10-T24 230mm 10mm Opaque φ17mm or more NPN IP66
Contact
SS10-T24-PN 230mm 10mm Opaque φ17mm or more PNP IP66
Contact
SS10-T32 310mm 10mm Opaque φ17mm or more NPN IP66
Contact
SS10-T32-PN 310mm 10mm Opaque φ17mm or more PNP IP66
Contact
SS10-T48 470mm 10mm Opaque φ17mm or more NPN IP66
Contact
SS10-T48-PN 470mm 10mm Opaque φ17mm or more PNP IP66
Contact
SS10-T64 630mm 10mm Opaque φ17mm or more NPN IP66
Contact
SS10-T64-PN 630mm 10mm Opaque φ17mm or more PNP IP66
Contact
SS10-T80 790mm 10mm Opaque φ17mm or more NPN IP66
Contact
SS10-T80-PN 790mm 10mm Opaque φ17mm or more PNP IP66
Contact
SS10-T96 950mm 10mm Opaque φ17mm or more NPN IP66
Contact
SS10-T96-PN 950mm 10mm Opaque φ17mm or more PNP IP66
Contact

More Info

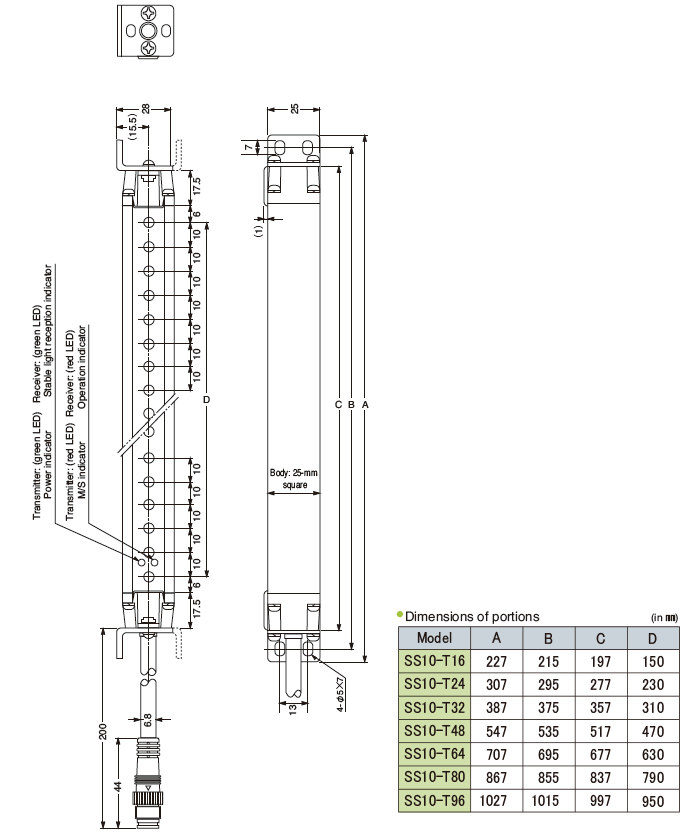

Only receiver is shown in the figure as an example.
With transmitter, orientation of mounting bracket is reversed.

Back view (common to all sensors of the series)

Cable with connector (accessory)
