Ultra-thin

SSXU20 Series

  • Improved versatility while maintaining our slim profile.
    • Ultra-thin light curtain sensor of only 9.9 mm in thickness
    • Switchable between parallel beam and cross beam modes
    • NPN or PNP output selectable
    • Eight selections of detection width from 160 mm to 720 mm
Contact us about this series

SSXU20 Series

Model Detecting width Optical axis interval Detection target Output mode Protective structure
SSXU20-T160 160mm 20mm Opaque φ15㎜ or more NPN/PNP IP 65
Contact
SSXU20-T240 240mm 20mm Opaque φ15㎜ or more NPN/PNP IP 65
Contact
SSXU20-T320 320mm 20mm Opaque φ15㎜ or more NPN/PNP IP 65
Contact
SSXU20-T400 400mm 20mm Opaque φ15㎜ or more NPN/PNP IP 65
Contact
SSXU20-T480 480mm 20mm Opaque φ15㎜ or more NPN/PNP IP 65
Contact
SSXU20-T560 560mm 20mm Opaque φ15㎜ or more NPN/PNP
Contact
SSXU20-T640 640mm 20mm Opaque φ15㎜ or more NPN/PNP IP 65
Contact
SSXU20-T720 720mm 20mm Opaque φ15㎜ or more NPN/PNP IP 65
Contact

Videos

SSXU20 Series | Product Showcase

More Info

Light curtain sensor of only 9.9 mm in thickness

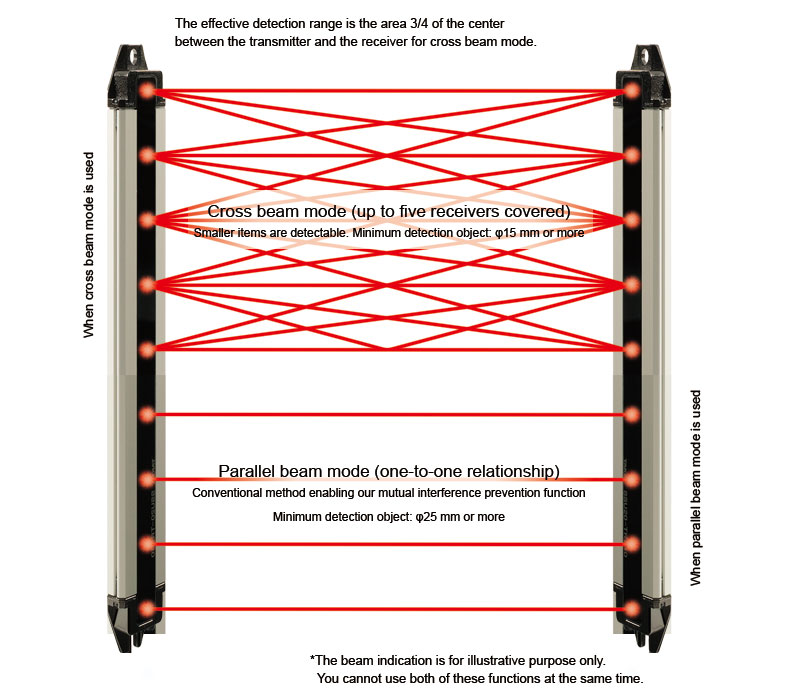

Switchable between parallel beam and cross beam modes
Suitable detection mode selectable for the application
Smaller objects can be detected by cross beam mode
Minimum detection objects: φ15 mm or more at cross beam, φ25 mm or more at parallel beam
High robustness
A robust metal case of 30 mm × 9.9 mm is employed as the sensor housing. Optimum for mounting the sensor on aluminum construction frames with the holes at the center of the brackets.

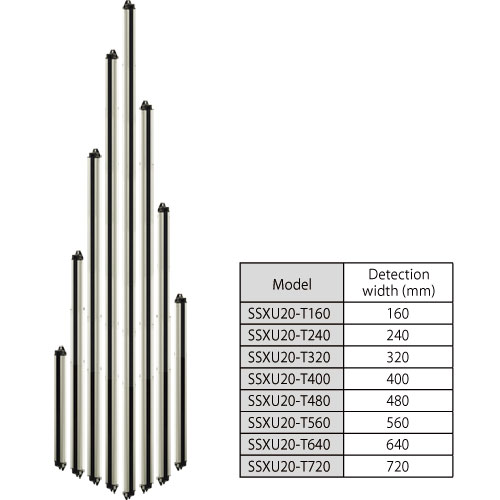

Variety of lineups
Eight selection of the detection width from 160 to 720 mm are available.

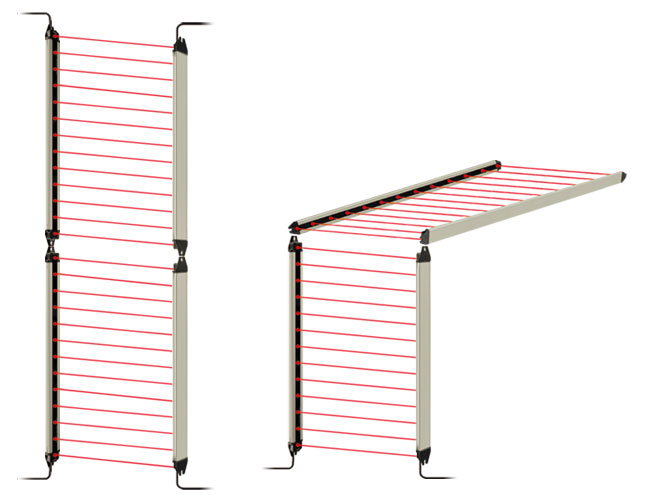

Mutual interference prevention
The mutual interference prevention function allows wider detection area by the sensors stacked or arranged in parallel beam mode.

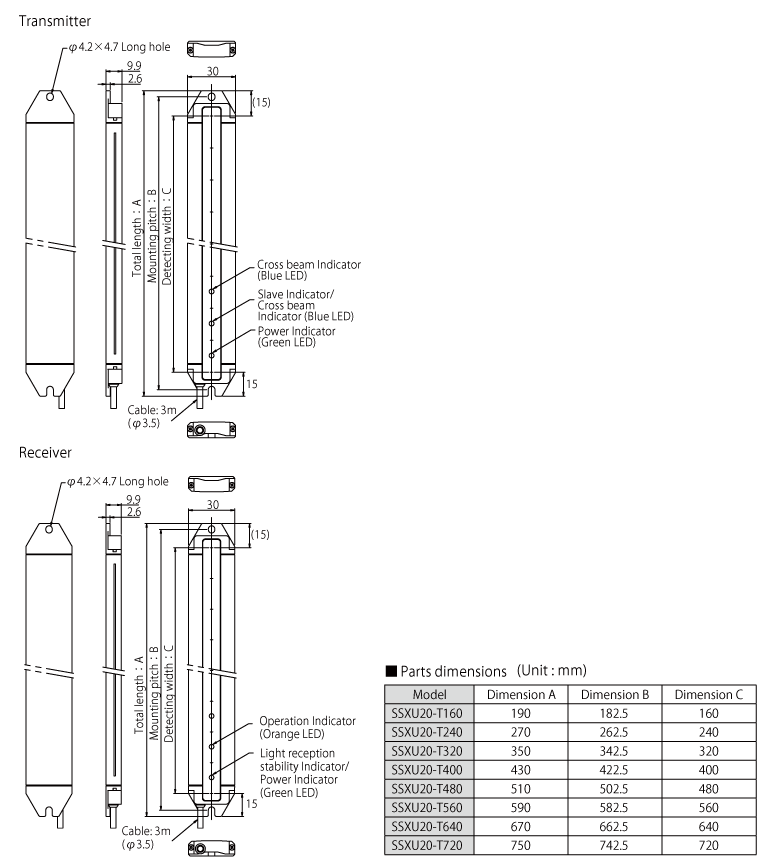

Dimensions (Unit : mm)

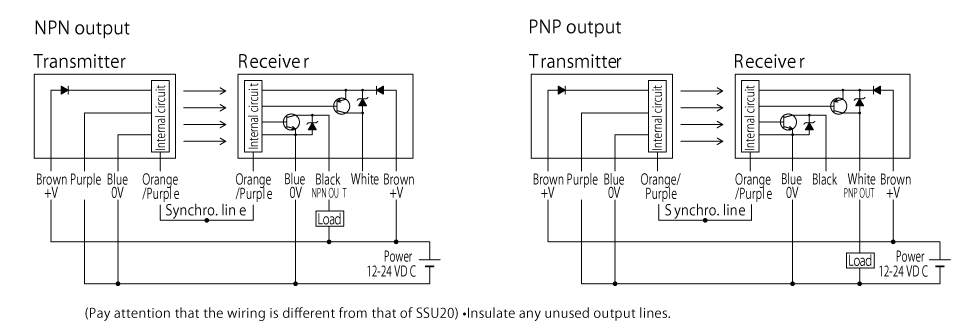

Parallel beam mode

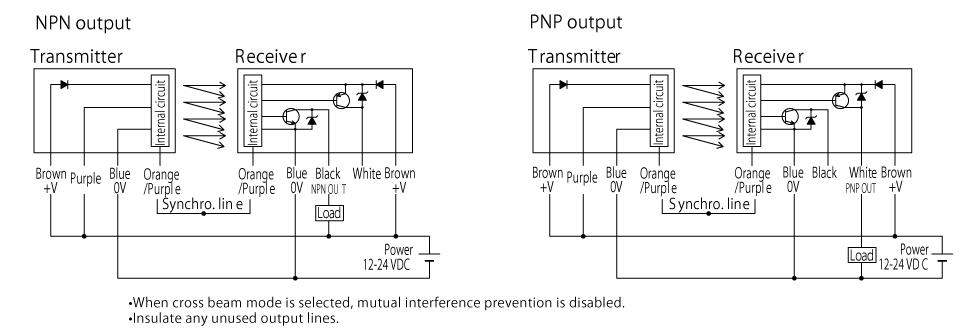

Cross beam mode
