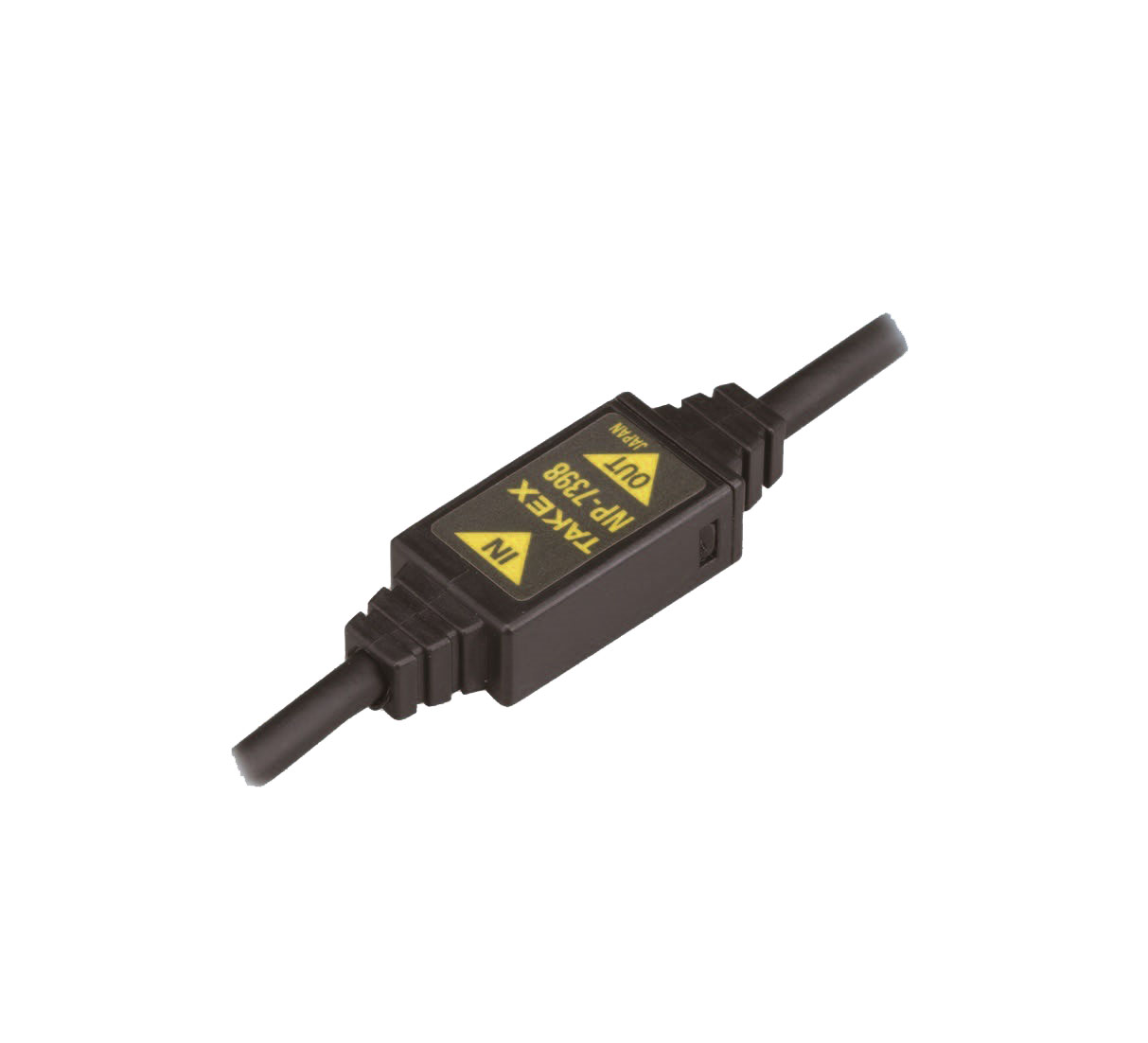

Output conversion unit
NP-7398
- Easily convert PNP output to NPN output
- Ultra compact unit, and possible to use like a cable
- To convert the output to NPN, just connect it to the PNP output apparatus such as sensor.
Output Conversion Units
NP-7398
NP-7398
| Model | Connection | Output mode | Power supply | |
|---|---|---|---|---|
| NP-7398 | Attached cable(outer diameter: dia. 2.8 mm) 0.15mm^2 x 3cores, 500mm(input side), 2000mm(output side) |
NPN open collector output Sink current 80mA 30 VDC or less |
12 - 24VDC±10% Ripple10% or less |
More Info
Major use
- Adjustment of input and output for peripheral devices made by foreign manufacturers
- Helpful for maintenance or standardization of equipment
- This product is not provided with short circuit protection.
A short circuit may damage output transistors. Please be careful.
