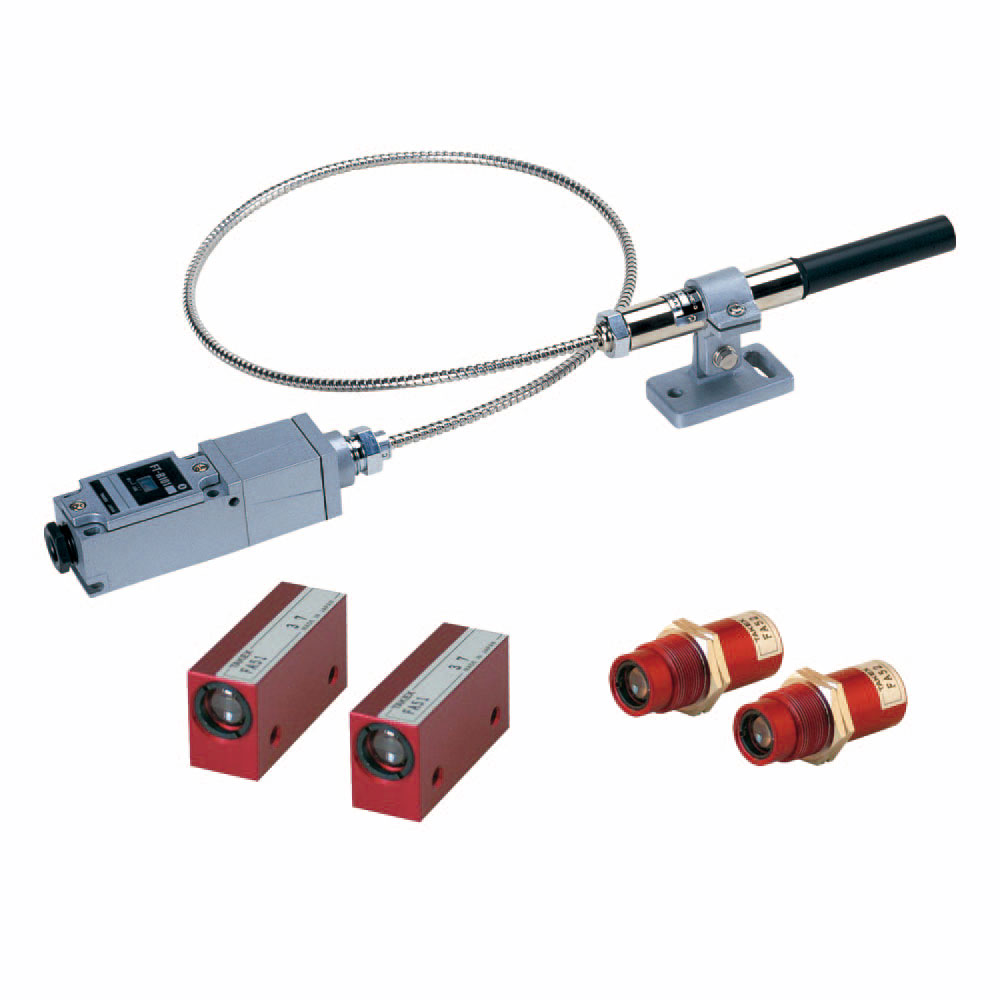

The photo sensor is composed of an optical head and amplifier connected with a fiber optic cable.
This allows installation of the detecting head that contains no electronic components at a high temperature location and of the amplifier containing electronic components at a remote location.
- Wide power supply range
Wide range of power voltage 100-240 VAC.
- Light emission monitor and 3-point level indicator

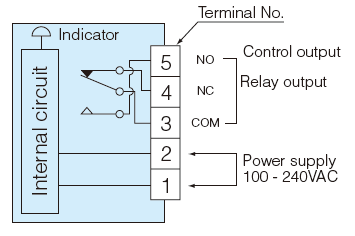

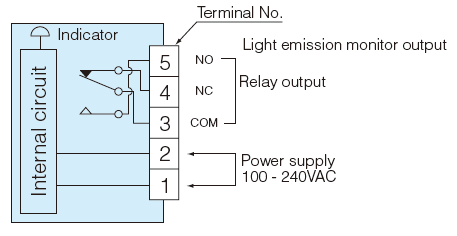

The transmitter is provided with light emission monitor circuit, which outputs alarm signal when light emission stops due to failure, etc. The receiver has 3 LEDs for checking the received light intensity level, offering easy checking of stability and light axis alignment

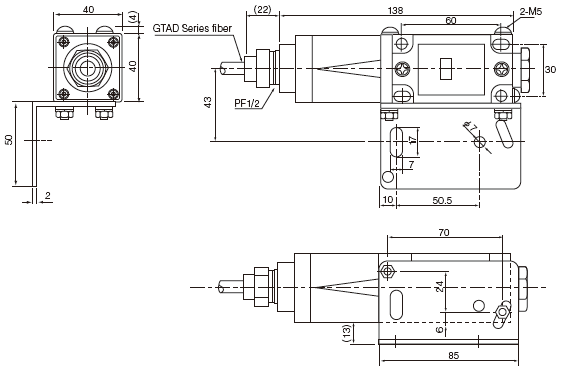

Sensor main unit (with attached bracket)
Clamping torque: 10N - m or less

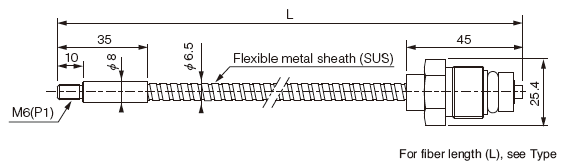

Fiber optic cable
