Water-cooled HMD

KD150C

  • Lowest detectable temperature: 150°C
Contact us about this series

KD150C

Model Detection object temperature Output mode Response time Protective structure
KD150C 150°C or more NPN/Analog output 0.5s IP66
Contact

More Info

KD150C is extremely compact and low cost for amplifier integrated water-cooled sensors. KD150C directly detects infrared radiation and outputs ON-OFF signals, which is useful for applications such as detection of passage or position of red-hot steel materials including ingots, slabs, steel plates and mold steel.

  • Water-cooled
    KD150C is the smallest of water-cooled sensors with built-in amplifiers and enclosed in robust case that withstands severe operating conditions.
  • Reasonable cost
    High performance allows detection of low temperature (150C or more.) steel material. Streamlined design offers even more reasonable price.
  • Performance comparable to full size HMDs
    Long detecting distance, sensitivity adjustment feature and high sensitivity offer excellent stability.
  • Attachable airless hood or air purge hood
    For the prevention of dirt deposits on lens, dust hoods that do not require air (F38S, F38N) and air purge hoods (302NC-305NC) are available.

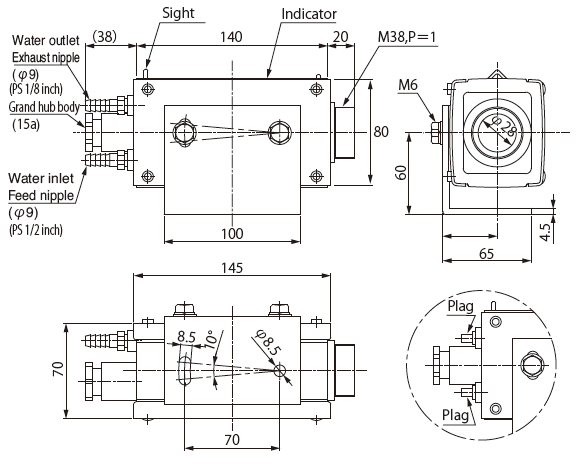

When no cooling is required, the above figure applies instead of nipples.

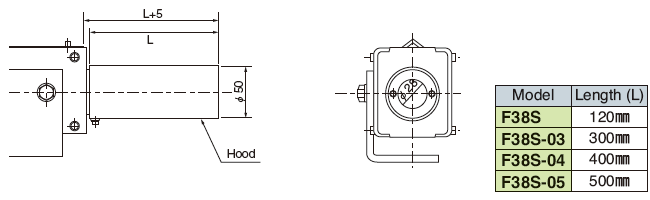

With Airless hood F38S Series attached

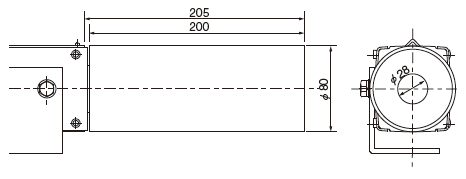

With Airless hood F38N attached

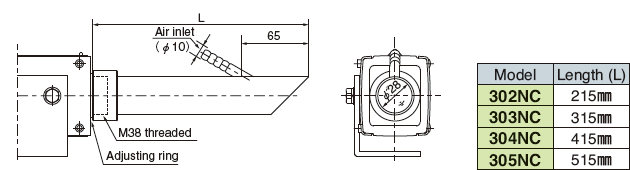

With air purge hood attached

Note: It does not operate with heat source with high temperature such as a cigarette lighter. When checking the operation, use a heat source corresponding to the temperature of detection

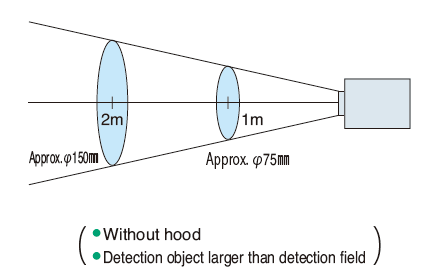

Detection field of view
