Water-cooled HMD

KD50 Series

  • Low cost
  • Reliably detects low temperature (450°C or more) steel material
Contact us about this series

KD50 Series

Model Type Detection object temperature Output mode Response time Protective structure
KD50 Narrow view 450°C or more Relay output 1c 25ms or less IP66
KD50E Narrow View 450°C or more Voltage Output 5ms or less IP66
KD50W Wide view 450°C or more Relay output 1c 25ms or less IP66

More Info

The KD50 Series HMDs are extremely compact and low cost for an amplifier-integrated water cooled sensors. The KD50 Series sensors directly detect infrared radiation and output ON-OFF signals, which is useful for applications such as detection of passage or position of red-hot steel materials including ingots, slabs, steel plates and mold steel.

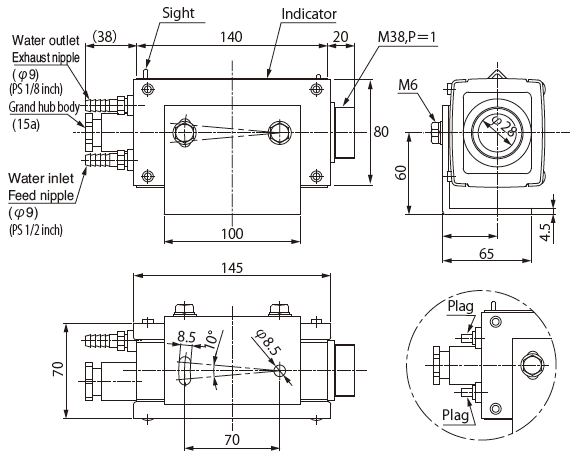

  • Water-cooled
    The KD50 Series sensors are the smallest of water-cooled sensors with built-in amplifiers and are enclosed in a robust case that withstands severe operating conditions.
  • Narrow view and wide view types available
    Choice between narrow view and wide view types allows selection according to installation conditions, etc.
  • Reasonable Cost
    High performance allows detection of low temperature (450 C or more) steel material. Streamlined design offers even more reasonable price.
  • Performance comparable to full size HMDs
    Long detecting distance, sensitivity adjustment feature and high sensitivity offer excellent stability
  • Airless hood or air purge hood attachable
    Prevents dirt deposits on lens, dust hoods that do not require air (F38S, F38N) and air purge hoods (302NC-305NC) are available.

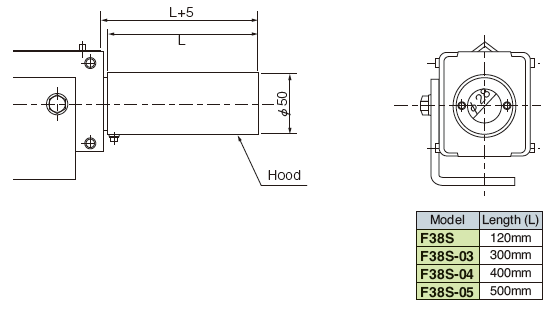

With Airless hood F38S Series attached

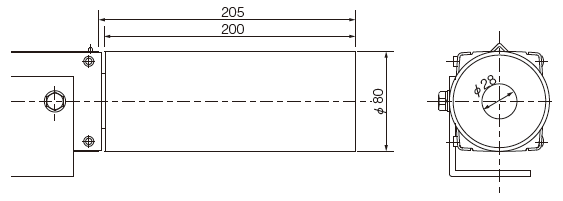

With Airless hood F38N attached

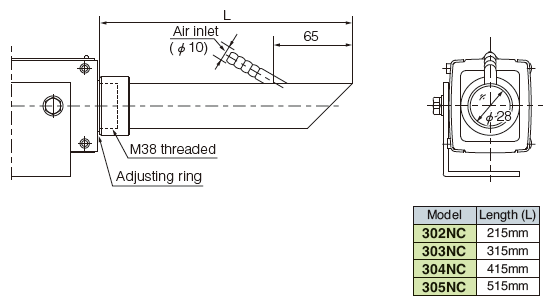

With air purge hood attached

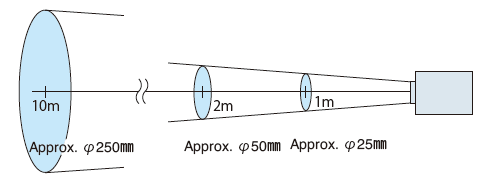

Narrow view type

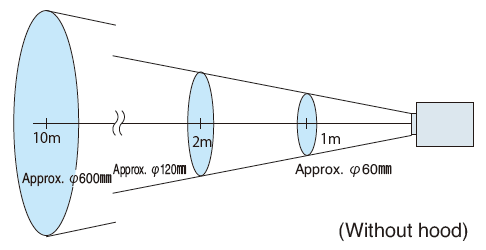

Wide view type
