Ultra Miniature Side-on

UM Series

  • Ultra miniature size (extra thin, extra compact)
  • Long distance detecting up to 1 m

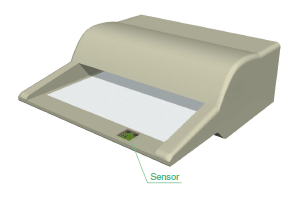

  • Ideal for integrating into small devices
    • Thinness of 3.5 mm achieved with embedded amplifier type!
      Extremely small volume: less than 0.8 cm^3
      Volume fraction: about 1/5 (to conventional Takex product)
    • Low cost
    • Red LED light source allows checking of emitted light spot
    • Equipped with stability and operation indicators

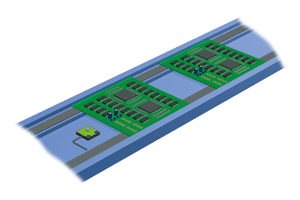

    • Wide range of applications from small-scale FA to system wide FA
Contact us about this series

UM Series

Model Detection method Detecting distance Operation mode Output mode Volume (VR) Protective structure
UM-R3DT Diffuse reflective 2 - 30mm Dark-ON NPN - IP64
Contact
UM-R3DTV Diffuse reflective 2 - 30mm Dark-ON NPN in-line
sensitivity
adjustment		 IP64
Contact
UM-R3T Diffuse reflective 2 - 30mm Light-ON NPN - IP64
Contact
UM-R3TP Diffuse reflective 2 - 30mm Light-ON PNP - IP64
Contact
UM-R3TV Diffuse reflective 2 - 30mm Light-ON NPN in-line
sensitivity
adjustment		 IP64
Contact
UM-R3TVP Diffuse reflective 2 - 30mm Light-ON PNP in-line
sensitivity
adjustment		 IP64
Contact
UM-R5DT Diffuse reflective 2 - 50mm Dark-ON NPN - IP64
Contact
UM-R5DTV Diffuse reflective 2 - 50mm Dark-ON NPN in-line
sensitivity
adjustment		 IP64
Contact
UM-R5T Diffuse reflective 2 - 50mm Light-ON NPN - IP64
Contact
UM-R5TV Diffuse reflective 2 - 50mm Light-ON NPN in-line
sensitivity
adjustment		 IP64
Contact
UM-R5TVP Diffuse reflective 2-50mm Light-ON PNP in-line
sensitivity
adjustment		 IP64
Contact
UM-T15DT Through beam 150mm Dark-ON NPN - IP64
Contact
UM-T15DTV Through beam 150mm Dark-ON NPN in-line
sensitivity
adjustment		 IP64
Contact
UM-T15DTVP Through beam 150mm Dark-ON PNP in-line
sensitivity
adjustment		 IP64
Contact
UM-T15T Through beam 150mm Light-ON NPN - IP64
Contact
UM-T15TV Through beam 150mm Light-ON NPN in-line
sensitivity
adjustment		 IP64
Contact
UM-T50DS Through beam 500mm Dark-ON NPN - IP64
Contact
UM-T50DSP Through beam 500mm Dark-ON PNP - IP64
Contact
UM-T50DSV Through beam 500mm Dark-ON NPN in-line
sensitivity
adjustment		 IP64
Contact
UM-T50DSVP Through beam 500mm Dark-ON PNP in-line
sensitivity
adjustment		 IP64
Contact
UM-T50DT Through beam 500mm Dark-ON NPN - IP64
Contact
UM-T50DTP Through beam 500mm Dark-ON PNP - IP64
Contact
UM-T50DTV Through beam 500mm Dark-ON NPN in-line
sensitivity
adjustment		 IP64
Contact
UM-T50DTVP Through beam 500mm Dark-ON PNP in-line
sensitivity
adjustment		 IP64
Contact
UM-T50S Through beam 500mm Light-ON NPN - IP64
Contact
UM-T50SP Through beam 500mm Light-ON PNP - IP64
Contact
UM-T50SV Through beam 500mm Light-ON NPN in-line
sensitivity
adjustment		 IP64
Contact
UM-T50SVP Through beam 500mm Light-ON PNP in-line
sensitivity
adjustment		 IP64
Contact
UM-T50TV Through beam 500mm Light-ON NPN in-line
sensitivity
adjustment		 IP64
Contact
UM-T100DS Through beam 1m Dark-ON NPN - IP64
Contact
UM-T100DT Through beam 1m Dark-ON NPN - IP64
Contact
UM-T100DTP Through beam 1m Dark-ON PNP - IP64
Contact
UM-T100S Through beam 1m Light-ON NPN - IP64
Contact
UM-T100T Through beam 1m Light-ON NPN - IP64
Contact
UM-T100TP Through beam 1m Light-ON PNP - IP64
Contact
UM-Z3DSV Convergent
reflective		 5 - 30mm Dark-ON NPN in-line
sensitivity
adjustment		 IP64
Contact
UM-Z3SV Convergent
reflective		 5 - 30mm Light-ON NPN in-line
sensitivity
adjustment		 IP64
Contact
UM-Z3SVP Convergent
reflective		 5 - 30mm Light-ON PNP in-line
sensitivity
adjustment		 IP64
Contact

More Info

Ultra miniature size (extra thin, extra compact)

Ultra miniature size (extra thin, extra compact)

UM-T15DT
UM-T15DTV(

UM-T50DT

UM-T50DS
UM-T100DS

UM-R3T
UM-R3TV(

UM-R5T
UM-R5TV(

UM-Z3SV(

(*1) Models identified by a "V" at the end of the model number are equipped with a sensitivity adjustment volume. The volume of

  • Directly screw onto the surface for mounting.
  • The tightening torque should not exceed 0.3 N m.
  • Mounting brackets (model : UM-V1) are available as optional parts.

NPN output

NPN output in-line sensitivity adjustment

PNP output in-line sensitivity adjustment

(Shows receiver of through-beam type as typical example. Power supply for reflective type: 12-24 VDC.)
* The transmitter of through beam type has power supply cable only (brown: 24 VDC, blue: 0V).
