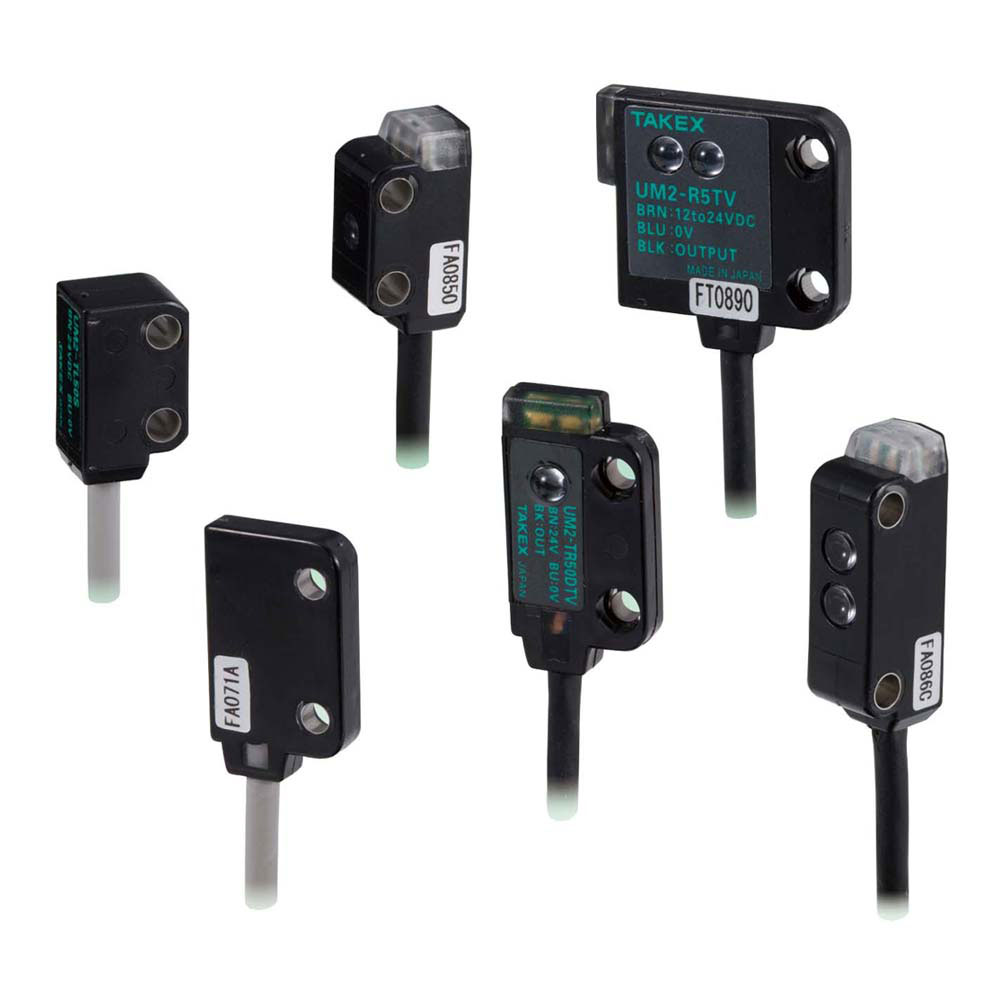

Ultra Miniature

UM2 Series

  • Highly advanced type of ultra miniature sensor
  • High intensity indicator and red LED light source
    Allows long distance checking of both sensor operation and light transmission.
  • NPN and PNP output types are available
  • Excellent water resistance complying with the IP 67 standard
    Sensor can be washed with water.
Contact us about this series

UM2 Series

Model Detection method Detecting distance Operation mode Output mode Volume (VR) Protective structure
UM2-R3DT Diffuse reflective 2 - 30mm Dark-ON NPN - IP67
Contact
UM2-R3DTP Diffuse reflective 2 - 30mm Dark-ON PNP - IP67
Contact
UM2-R3DTV Diffuse reflective 2 - 30mm Dark-ON NPN in-line
sensitivity
adjustment		 IP67
Contact
UM2-R3DTVP Diffuse reflective 2 - 30mm Dark-ON PNP in-line
sensitivity
adjustment		 IP67
Contact
UM2-R3T Diffuse reflective 2 - 30mm Light-ON NPN - IP67
Contact
UM2-R3TP Diffuse reflective 2 - 30mm Light-ON PNP - IP67
Contact
UM2-R3TV Diffuse reflective 2 - 30mm Light-ON NPN in-line
sensitivity
adjustment		 IP67
Contact
UM2-R3TVP Diffuse reflective 2 - 30mm Light-ON PNP in-line
sensitivity
adjustment		 IP67
Contact
UM2-R5DT Diffuse reflective 2 - 50mm Dark-ON NPN - IP67
Contact
UM2-R5DTP Diffuse reflective 2 - 50mm Dark-ON PNP - IP67
Contact
UM2-R5DTV Diffuse reflective 2 - 50mm Dark-ON NPN in-line
sensitivity
adjustment		 IP67
Contact
UM2-R5DTVP Diffuse reflective 2 - 50mm Dark-ON PNP in-line
sensitivity
adjustment		 IP67
Contact
UM2-R5T Diffuse reflective 2 - 50mm Light-ON NPN - IP67
Contact
UM2-R5TP Diffuse reflective 2 - 50mm Light-ON PNP - IP67
Contact
UM2-R5TV Diffuse reflective 2 - 50mm Light-ON NPN in-line
sensitivity
adjustment		 IP67
Contact
UM2-R5TVP Diffuse reflective 2 - 50mm Light-ON PNP in-line
sensitivity
adjustment		 IP67
Contact
UM2-T15DT Through beam 150mm Dark-ON NPN - IP67
Contact
UM2-T15DTP Through beam 150mm Dark-ON PNP - IP67
Contact
UM2-T15DTV Through beam 150mm Dark-ON NPN in-line
sensitivity
adjustment		 IP67
Contact
UM2-T15DTVP Through beam 150mm Dark-ON PNP in-line
sensitivity
adjustment		 IP67
Contact
UM2-T15T Through beam 150mm Light-ON NPN - IP67
Contact
UM2-T15TP Through beam 150mm Light-ON PNP - IP67
Contact
UM2-T15TV Through beam 150mm Light-ON NPN in-line
sensitivity
adjustment		 IP67
Contact
UM2-T15TVP Through Beam 150mm Light-ON PNP
Contact
UM2-T50DS Through beam 500mm Dark-ON NPN - IP67
Contact
UM2-T50DSP Through beam 500mm Dark-ON PNP - IP67
Contact
UM2-T50DSV Through beam 500mm Dark-ON NPN in-line
sensitivity
adjustment		 IP67
Contact
UM2-T50DSVP Through beam 500mm Dark-ON PNP in-line
sensitivity
adjustment		 IP67
Contact
UM2-T50DT Through beam 500mm Dark-ON NPN - IP67
Contact
UM2-T50DTP Through beam 500mm Dark-ON PNP - IP67
Contact
UM2-T50DTV Through beam 500mm Dark-ON NPN in-line
sensitivity
adjustment		 IP67
Contact
UM2-T50DTVP Through beam 500mm Dark-ON PNP in-line
sensitivity
adjustment		 IP67
Contact
UM2-T50S Through beam 500mm Light-ON NPN - IP67
Contact
UM2-T50SP Through beam 500mm Light-ON PNP - IP67
Contact
UM2-T50SV Through beam 500mm Light-ON NPN in-line
sensitivity
adjustment		 IP67
Contact
UM2-T50SVP Through beam 500mm Light-ON PNP in-line
sensitivity
adjustment		 IP67
Contact
UM2-T50T Through beam 500mm Light-ON NPN - IP67
Contact
UM2-T50TP Through beam 500mm Light-ON PNP - IP67
Contact
UM2-T50TPV Through beam 500mm Light-ON PNP
Contact
UM2-T50TV Through beam 500mm Light-ON NPN in-line
sensitivity
adjustment		 IP67
Contact
UM2-Z3DSV Convergent reflective 5 - 30mm Dark-ON NPN in-line
sensitivity
adjustment		 IP67
Contact
UM2-Z3DSVP Convergent reflective 5 - 30mm Dark-ON PNP in-line
sensitivity
adjustment		 IP67
Contact
UM2-Z3SV Convergent reflective 5 - 30mm Light-ON NPN in-line
sensitivity
adjustment		 IP67
Contact
UM2-Z3SVP Convergent reflective 5 - 30mm Light-ON PNP in-line
sensitivity
adjustment		 IP67
Contact

More Info

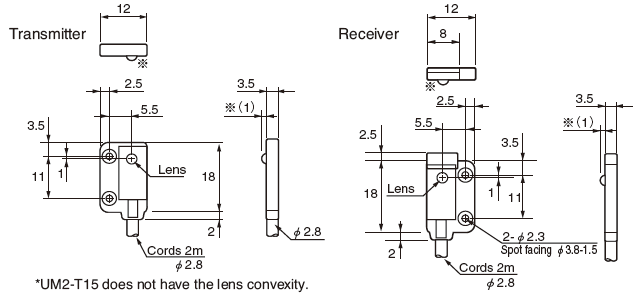

UM2-T15DT
UM2-T15DTV (sensor)
UM2-T50DT
UM2-T50DTV (sensor)

*UM2-T15 does not have the lens convexity.

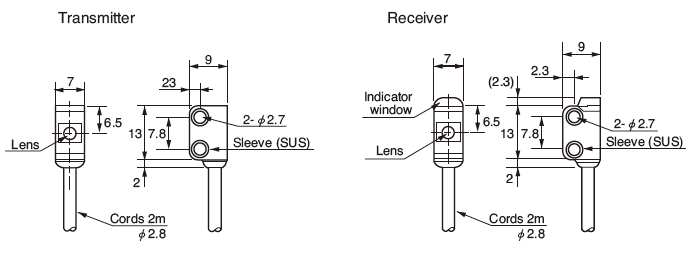

UM2-T50DS
UM2-T50DSV (sensor)

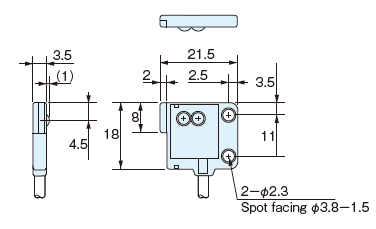

UM2-R3T
UM2-R3TV (sensor)
UM2-R5T
UM2-R5TV (sensor)

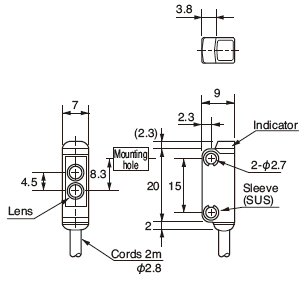

UM2-Z3SV (sensor)

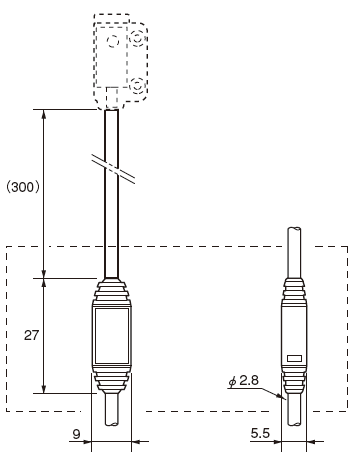

In-line sensitivity adjustment volume/PNP output conversion unit

  • Provided in the receiver cord for through-beam model.
  • For mounting, directly screw onto the surface.
    The tightening torque should be up to 0.3 N?m.

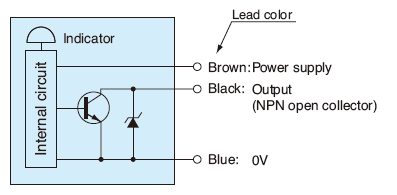

NPN output type
UM2-T15DT
UM2-T50DT
UM2-T50DS
UM2-R3T
UM2-R5T

The transmitter is provided with power supply lines (brown: operating power; blue: 0 V) only.

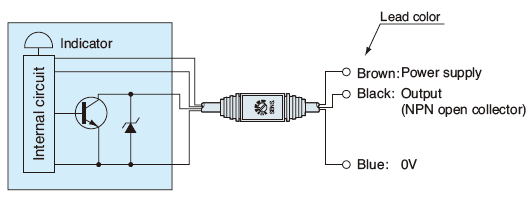

NPN output type with in-line sensitivity adjustment
UM2-T15DTV
UM2-T50DTV
UM2-T50DSV
UM2-R3TV
UM2-R5TV
UM2-Z3SV

The transmitter is provided with power supply lines (brown: operating power; blue: 0 V) only.

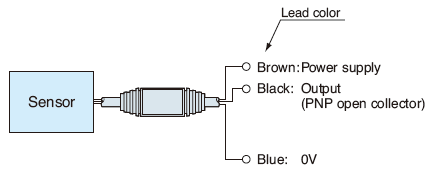

PNP output type
UM2-T15DTP
UM2-T50DTP
UM2-T50DSP
UM2-R3TP
UM2-R5TP

PNP open collector output available with in-line output conversion unit.
The transmitter is provided with power supply lines (brown: operating power; blue: 0 V) only.

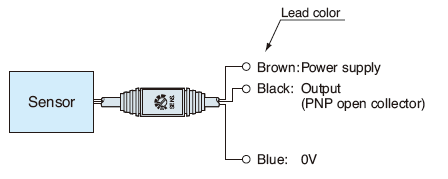

PNP output type with in-line sensitivity adjustment
UM2-T15DTVP
UM2-T50DTVP
UM2-T50DSVP
UM2-R3TVP
UM2-R5TVP
UM2-Z3SVP

PNP open collector output available with in-line volume/output conversion unit.
The transmitter is provided with power supply lines (brown: operating power; blue: 0 V) only.
