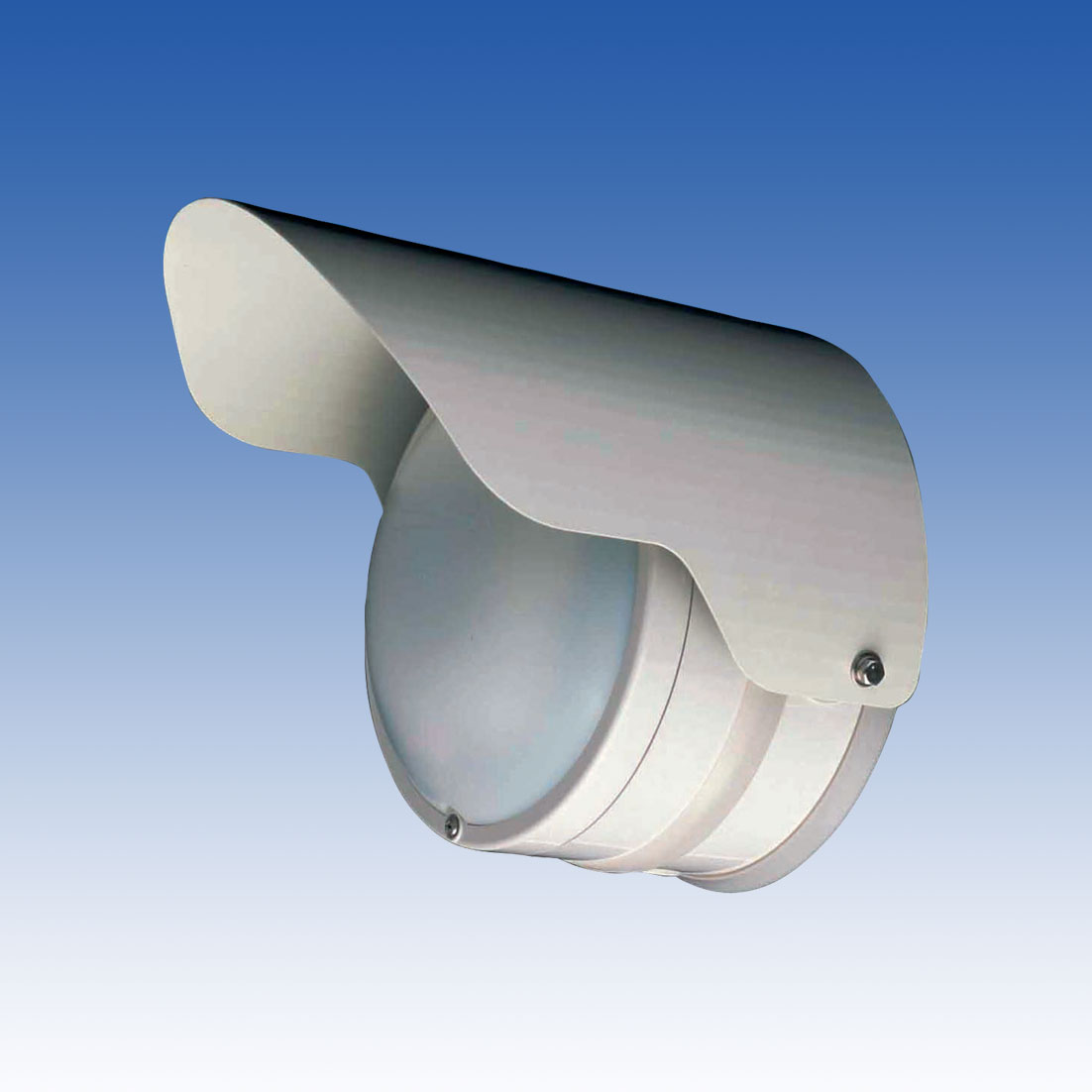

PIR PIR-30/50 Series
High-Mount PIR

PIR-30/50 Series

With a mounting height up to 3.5m coupled with a creep zone of less than 1m, we can offer 30m x 30m high-density coverage (PIR-30WE) or 50m x 3m curtain coverage (PIR-50NE).

Using the highest quality mirrored optics coupled with twin pyros, TAKEX offer the most professional long-range outdoor PIR’s to date.

Contact us about this series

PIR-30/50 Series

Model Coverage Detection system Mounting height IP Rating Supply voltage Current consumption
PIR-30WE Wide angle: 30m / 100ft Twin Pyro PIR up to 3.5m / 11.5ft 55 9 - 30V DC 25mA
Contact
PIR-50NE Vertical Curtain: 50m / 165ft Twin Pyro PIR up to 3.5m / 11.5ft 55 9 - 30V DC 25mA
Contact

Features

High quality mirrored optics coupled with twin pyros
Installation height 2m to 3.5m (6.6' to 11.5')
Durable weatherproof AES resin housing
Sensitivity adjustment from 30% to 170%
Protective hood to deflect rain/sunlight and guard against wildlife
