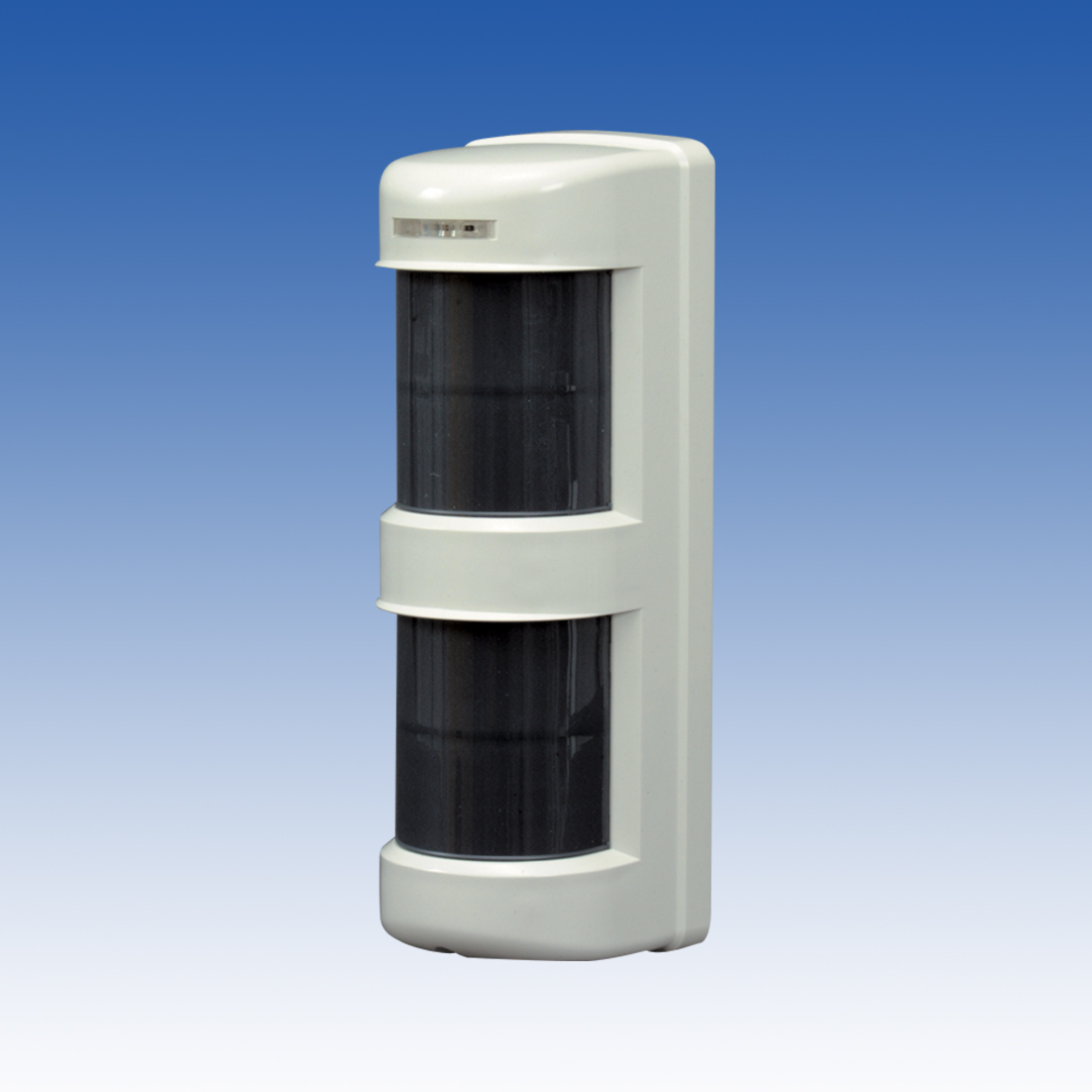

DUAL-ZONE PIR

MS-12 Series

Our Dual-Zone PIR's combine a horizontal and downward curtain requiring simultaneous activation for alarm.

With up to 12m x 180˚ range these sensors are perfect for use in both domestic and industrial applications.

Contact us about this series

MS-12 Series

Model Coverage Detection system Mounting height Supply voltage Current consumption
MS-12FE 12m / 40ft
x 180°
Dual-zone PIR 1m / 3.3ft 12 - 30V DC 40mA
Contact
MS-12TE 12m / 40ft
x 90°
Dual-zone PIR 1m / 3.3ft 12 - 30V DC 35mA
Contact

Features

Dual-zone detection system
2-12m coverage
Rotating sensor heads (±90° horizontal adjustment)
Selectable NO/NC relay output
AND/OR detection modes (MS-12FE only)
IP54 housing

Accessories

KP-100

1m floor standing galvanised steel poles (PAIR) inc. first-fix bolt set

KP-150

1.5m floor standing galvanised steel poles (PAIR) inc. first-fix bolt set

BP-22

Mounting Plate and Pole Bracket Kit

Videos

MS-12FE - Wall Detection (Instructional Video)

MS-12FE - 180° Detection (Instructional Video)
