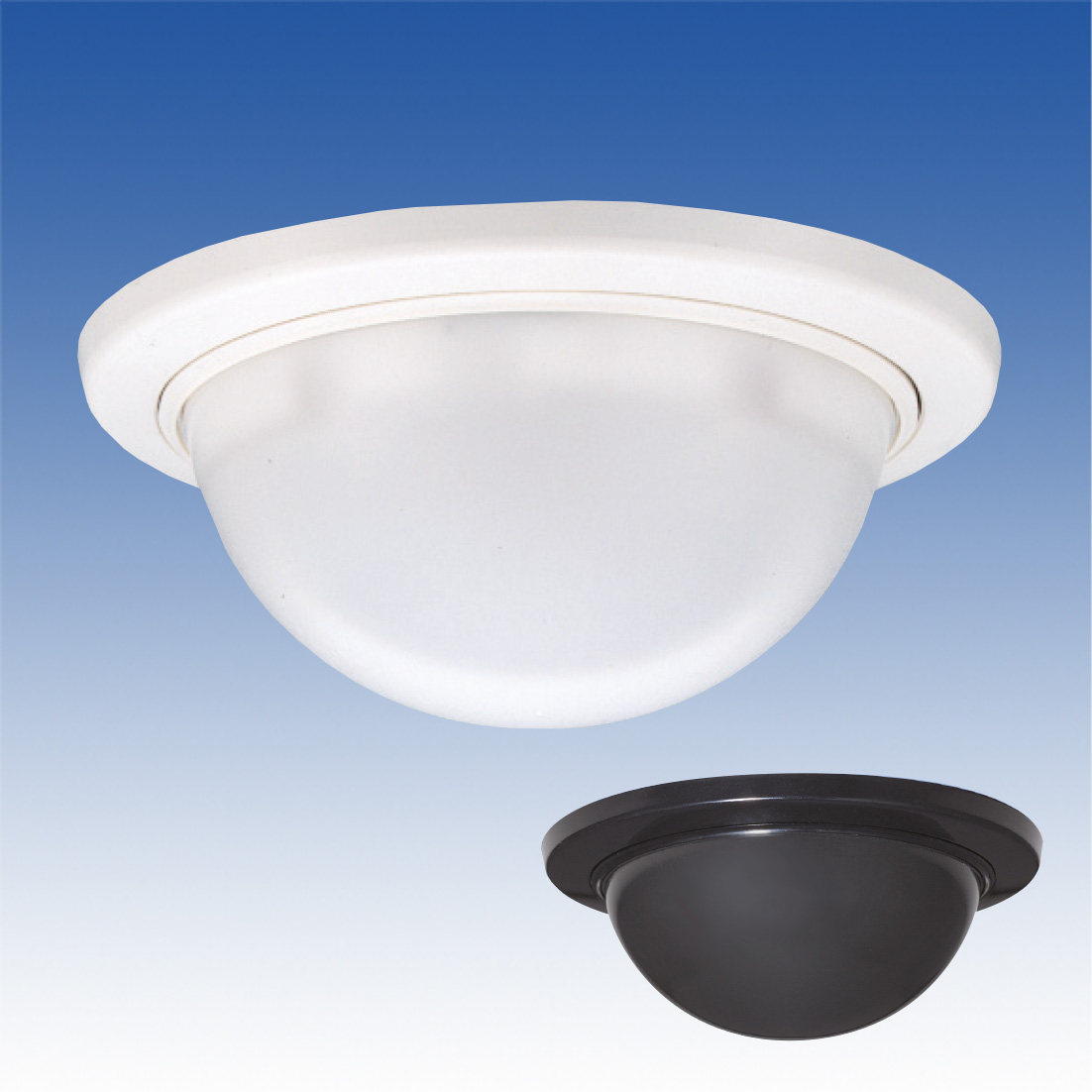

Ceiling Mount PIR

PA-6800 Series

The PA-6800 series ceiling mount PIR sensors combine a discreet compact appearance with outstanding performance at a low price. The sensor can be snapped in and out of its base unit for easy installation.

Contact us about this series

PA-6800 Series

Model Coverage Mounting height Mounting position Supply voltage Current consumption
PA-6805E Spot: Φ4m / Φ13ft up to 4.9m / 16ft Ceiling 10.5 - 30V DC 25mA
Contact
PA-6810E 360°: Φ15.2m / Φ50ft up to 4.9m / 16ft Ceiling 10.5 - 30V DC 25mA
Contact
PA-6812E Wide angle: 12m / 40ft up to 4.9m / 16ft Ceiling 10.5 - 30V DC 25mA
Contact
PA-6820E Vertical curtain: 20m / 66ft up to 4.9m / 16ft Ceiling 10.5 - 30V DC 25mA
Contact

Features

ceiling mount design
2m to 4.9m installation height
detachable base unit with snap-in-out sensor design
pulse count and sensitivity adjustable
geared mirror array for precise area definition (PA-6812E/6820E)
PA-6810E and PA-6812E also available in black (BL)

Accessories

BCW-401

Adjustable Wall/Ceiling Mount Bracket
