High-Mount PIR

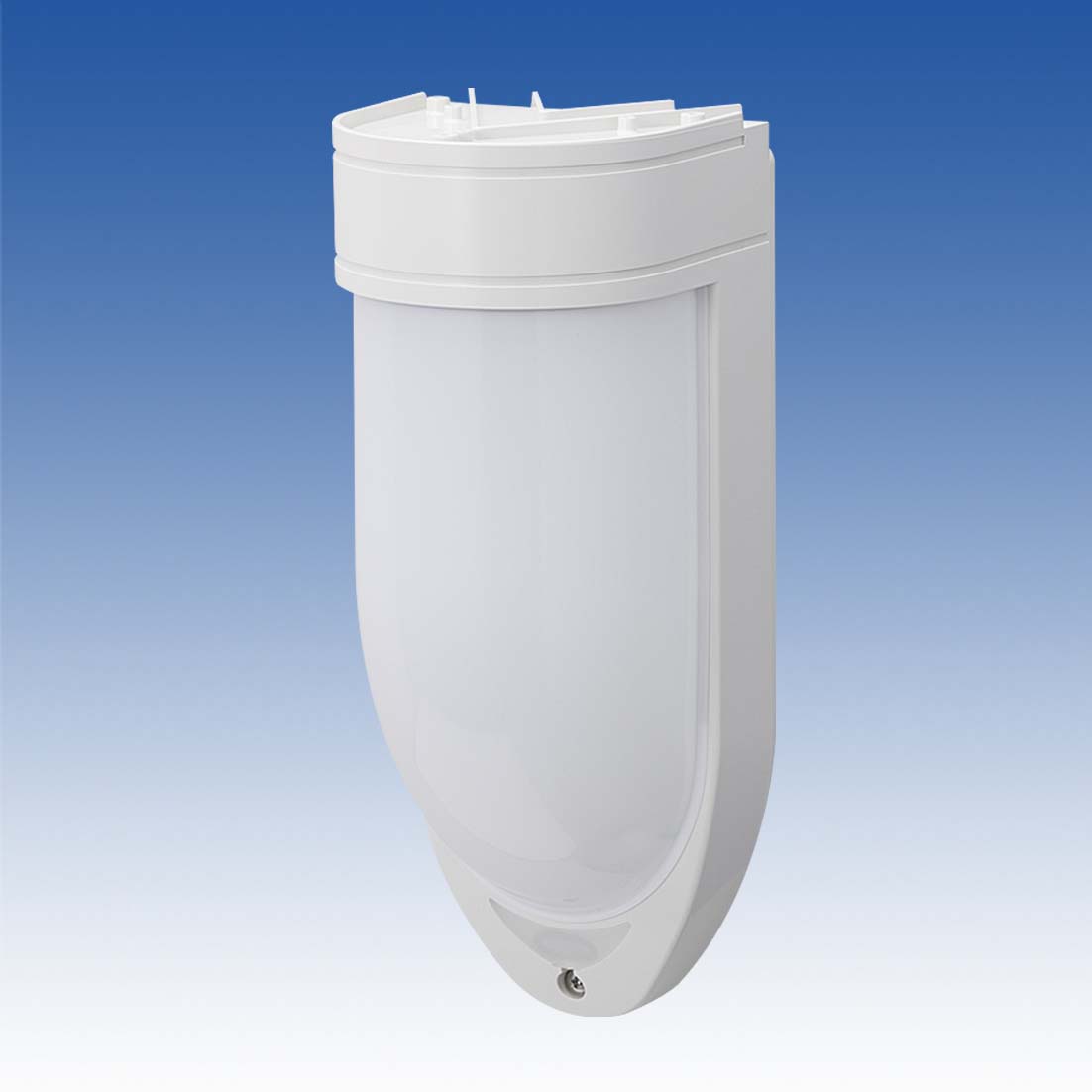

PIR-T Series

The high-performance PIR-T sensor family offers the ultimate in detection versatility.

Precision triple mirror optics and intelligent signal processing ensure accurate detection from a mounting height of 2m to 6m.

Contact us about this series

PIR-T Series

Model Coverage Detection system Mounting height Supply voltage Current consumption
PIR-T15AM 15m / 49ft
x 80°
PIR up to 6m / 20ft 9 - 28V DC 40mA
Contact
PIR-T15WE 15m / 49ft
x 80°
PIR up to 6m / 20ft 9 - 28V DC 40mA
Contact
PIR-T40NAM Vertical curtain: 45m / 150ft PIR up to 6m / 20ft 9 - 28V DC 50mA
Contact

Features

4 Selectable operation modes
2m to 6m installation height (by operation mode)
High-performance triple mirror optical system
Precise detection area adjustment using on-mirror LED’s
Anti-masking function
Lightning surge protection
IP55 housing

Accessories

BP-32

Pole Mounting Kit
