Takex Phase Differential Detection BGS Sensor DX-S35F series and DX-S33C series
Car detection

DX-S35F/DX-S33C

  • Measures the distance with phase differential system, which detects time lag between emission and reflection.
  • Detection with high accuracy up to 3m.
    • Wide detection area, using multi-beams (five or three optical zones).
    • DX-S35F provides high degree of freedom because of wide detection area and detection area setting function.
    • Not influenced by color, shape or surface gloss of detection object.
    • Equipped with mutual interference prevention. You can connect up to four units.
Contact us about this series

DX-S35F/DX-S33C

Model Detection method No. of optical zones Detecting distance Operation mode Output mode Power supply
DX-S33C Reflective 3 0.1 - 3m Light ON PhotoMOS output 12-24V DC
Contact
DX-S33C-Y5 Reflective 3 0.1 - 3m Light ON PhotoMOS output 12-24V DC
Contact
DX-S35F Reflective 5 0.1 - 3m Light ON PhotoMOS output 12-24V DC
Contact
DX-S35F-Y5 Reflective 5 0.1 - 3m Light ON PhotoMOS output 12-24V DC
Contact

More Info

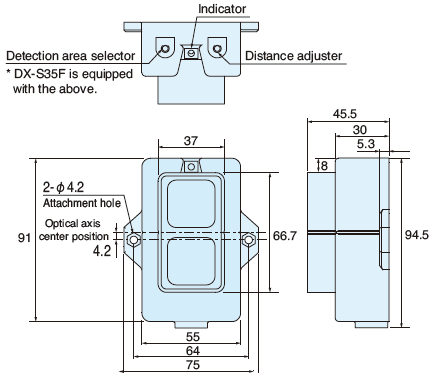

DX-S35F (5 optical zones) Detection area setting feature

DX-S33C (3 optical zones)

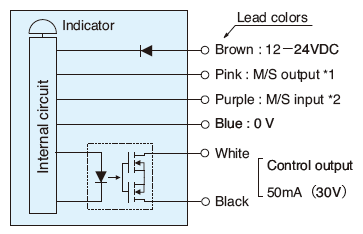

  • *1 : Open the M/S (Master and slave) output when using the sensor individually. Short-circuit the output to 0V when the sensors is the final slave in a M/S connection.
  • *2 : M/S input of the sensor during individual use or of the first (master) sensor should be open.
Detection of AGV (Automated Guided Vehicle) Passage

By using the phase differential detection method, a wide area can be measured regardless of the background of the detection object, surface gloss, or color density to obtain the distance.
