Transparent object detection

GA-MT1R

Simple operation just with the press of a button
Perform simple setup with the touch of a button for highly transparent objects with transmittance
Optical system capable of detecting small differences in transparent objects

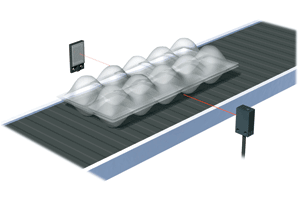

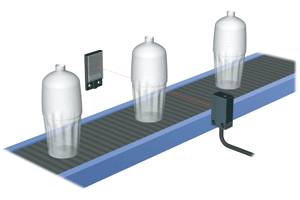

Development of reflector exclusively for transparent container detection
Reflector designed for detecting transparent objects
Inverter light suppression circuit
Prevents faulty operation with inverter fluorescent lamps
IP 67 water resistance allowing washing

Model	Detection method	Detecting distance	Operation mode	Output mode

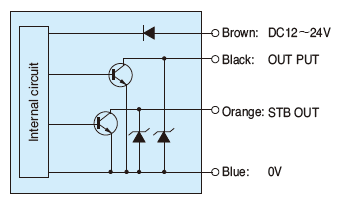

GA-MT1R	Retroreflective	0.1 - 1m	Light ON/Dark ON selectable	NPN	Contact

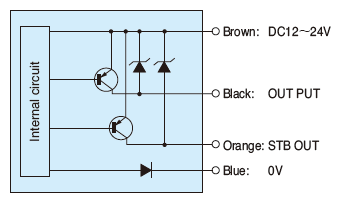

GA-MT1RPN	Retroreflective	0.1 - 1m	Light ON/Dark ON selectable	PNP	Contact
