Ultrasonic Sensor US-T50/US-R25
Takex ultrasonic sensor, US-T50/US-R25
Ultrasonic Sensors

US-T50/US-R25

  • Microminiature ultrasonic sensor embedded in a conventional sensor housing
  • Reliably detecting transparent packaging PET bottle or container
  • Adjustment POT equipped on all models
Contact us about this series

US-T50/US-R25

Model Detection method Detecting distance Control output Connection Protective structure
US-R25 Reflective 60 - 250mm NPN Attached cord IP54
Contact
US-R25PN Reflective 60 - 250mm PNP Attached cord IP54
Contact
US-T50 Through Beam 500mm NPN Attached cord IP54
Contact
US-T50PN Through Beam 500mm PNP Attached cord IP54
Contact

Videos

US-T50/US-R25 - Rubber & Plastic Industry

More Info

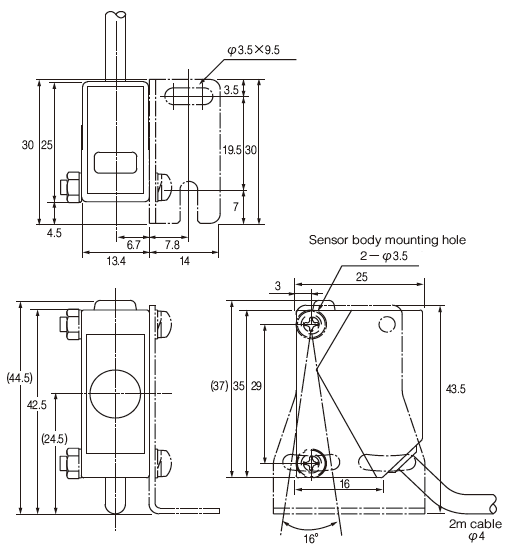

For all models (transmitter/receiver)

Dotted lines show the dimensions with the mounting bracket (accessory) attached

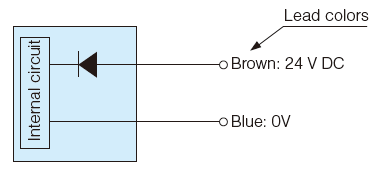

US-TE50 (Transmitter)

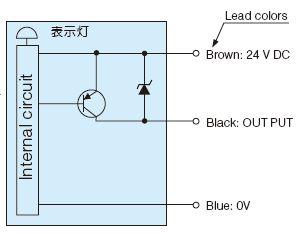

NPN output
US-TR50
US-R25

PNP output
US-TR50PN
US-R25PN

| Semiconductor

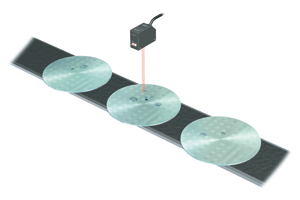

Glass Wafer Detection

Ultrasonic sensor reliably detects wafers with water drops on them.

| Rubber/Plastic

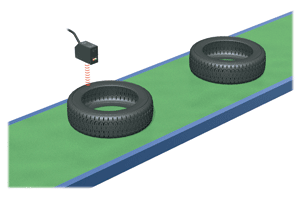

Tire Detection

Ultrasonic sensor used for detection regardless of tire size or conveyor color.

| Rubber/Plastic

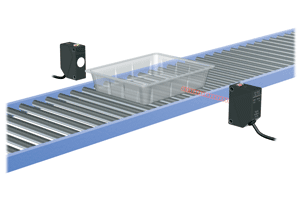

Transparent Tray Detection

Passage of transparent tray detected with ultrasonic sensor.

| Packaging/Food/Drug

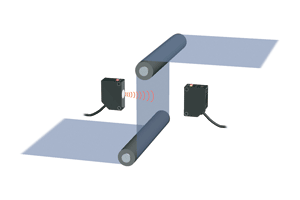

Transparent Film Detection

Ultrasonic sensor allowing detection regardless of degree of transparency, color or material.
