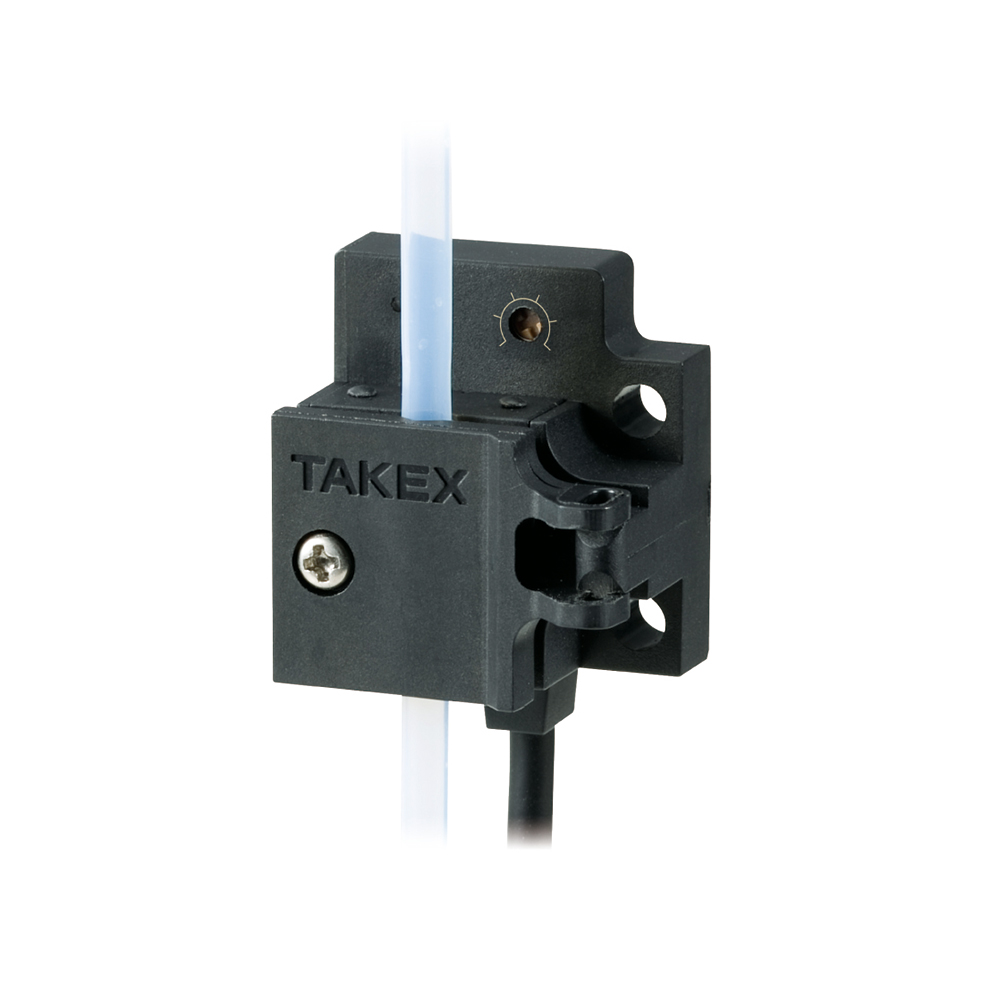

Liquid Level Sensor for thin diameter pipes

LS series

  • Thin pipe capable
    Available for transparent pipes 1.6 to 2.6mm in diameter. Photoelectric non-contact sensor.
  • Easy setting
    Just clamp the pipe and fix by a screw.
  • Compact and saving space
    23 × 21mm mounting area.
    12 to 24VDC type and 5VDC type are available.
Contact us about this series

LS series

Model Light source Operation mode Output mode Power supply Response time
LS-5D Red LED (wa ve length of tra nsmission: 647nm) Dark-ON NPN open collector output Rating: sink current 80mA (30VDC) or less 5VDC ±10% / Ripple 5% or less 0.5ms or less
Contact
LS-5DP Red LED (wa ve length of tra nsmission: 647nm) Dark-ON PNP open collector output Rating: source current 80mA (30VDC) or less 5VDC ±10% / Ripple 5% or less 0.5ms or less
Contact
LS-5L Red LED (wa ve length of tra nsmission: 647nm) Light-ON NPN open collector output
Rating: sink current 80mA (30VDC) or less		 5VDC ±10% / Ripple 5% or less 0.5ms or less
Contact
LS-5LP Red LED (wa ve length of tra nsmission: 647nm) Light-ON PNP open collector output
Rating: source current 80mA (30VDC) or less		 5VDC ±10% / Ripple 5% or less 0.5ms or less
Contact
LS-24D Red LED (wa ve length of tra nsmission: 647nm) Dark-ON NPN open collector output
Rating: sink current 80mA (30VDC) or less		 12 to 24VDC ±10% / Ripple 10% or less 0.5ms or less
Contact
LS-24DP Red LED (wa ve length of tra nsmission: 647nm) Dark-ON PNP open collector output
Rating: source current 80mA (30VDC) or less		 12 to 24VDC ±10% / Ripple 10% or less 0.5ms or less
Contact
LS-24L Red LED (wa ve length of tra nsmission: 647nm) Light-ON NPN open collector output
Rating: sink current 80mA (30VDC) or less		 12 to 24VDC ±10% / Ripple 10% or less 0.5ms or less
Contact
LS-24LP Red LED (wa ve length of tra nsmission: 647nm) Light-ON PNP open collector output
Rating: source current 80mA (30VDC) or less		 12 to 24VDC ±10% / Ripple 10% or less 0.5ms or less
Contact

More Info

LS series

Power supply: 12 to 24VDC type

Power supply: 5VDC type
