Variable Range

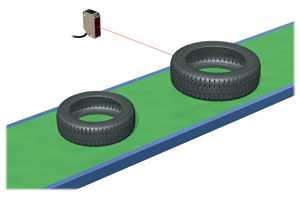

DL-S Series

  • High-intensity red LED for easy alignment: DL-S100R (-J)
  • Long distance type for adverse environments
  • Compact size and enhanced functions
  • IP 66 protective structure
Contact us about this series

DL-S Series

Model Detecting distance Output mode Power supply Connection Protective structure
DL-S100R 0.1 - 1m NPN/PNP 12 - 24V DC Attached cable IP66
Contact
DL-S100R-J 0.1 - 1m NPN/PNP 12 - 24V DC M8 Connector IP66
Contact
DL-S202 0.1 - 2m NPN/PNP 12 - 24V DC Attached cable IP66
Contact
DL-S202-J 0.1 - 2m NPN/PNP 12 - 24V DC M8 Connector IP66
Contact
DL-S202R 0.1 - 2m NPN/PNP 12 - 24V DC Attached cable IP66
Contact

More Info

Distance detection with 2 segment photodiode

While ordinary reflective type sensors operate based on the received light intensity, sensors with 2 segment photodiode judgee distances based on the position of the received light.
This makes sensors with 2 segment photodiode to be less susceptible to variation in the received light intensity due to change of the color or material of the detection object, reflection on the background or soiling of the sensors, allowing stable detection.

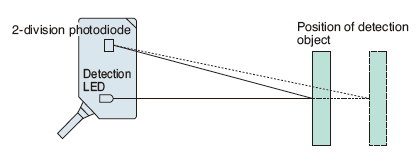

Detection based on change of the position of received light according to change of the distance from the detection object.

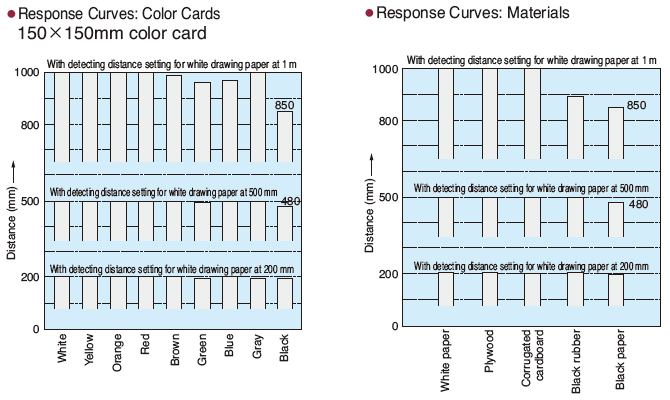

DL-S100R Performance Curves (Typical)

Response Curves: Color Cards, Response Curves: Materials

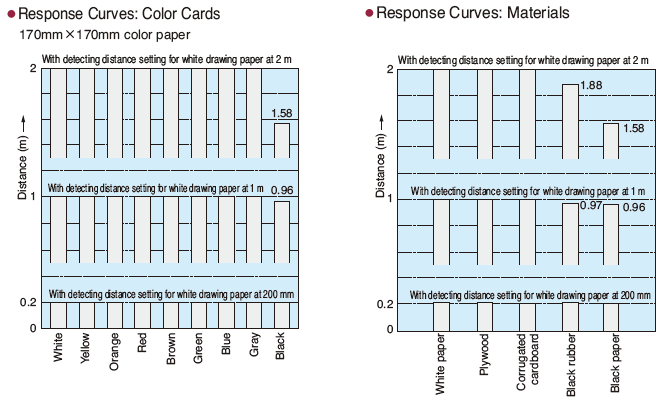

DL-S202 Performance Curves (Typical)

Response Curves: Color Cards, Response Curves: Materials

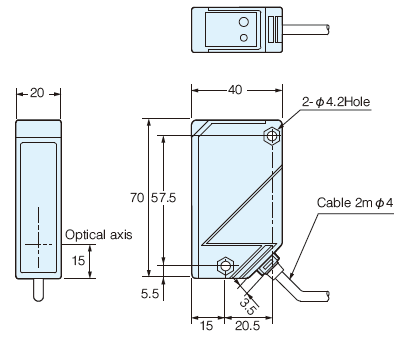

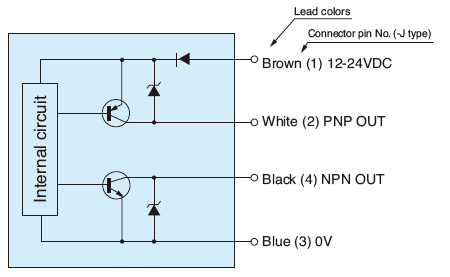

DL-S100R
DL-D202
DL-S202R

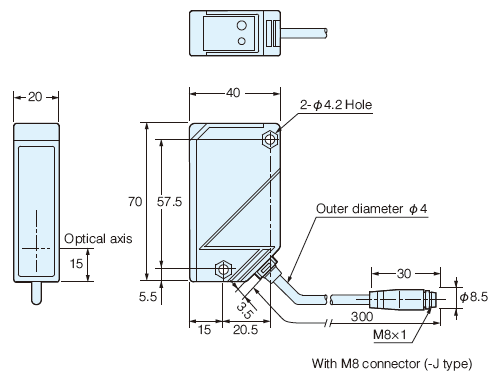

DL-S100R-J
DL-S202-J

  • The output transistor turns off when load short circuit or overload occurs. Check the load and turn the power back on.
