Slim Type
SS40 Series
- Beam interval: 40mm
- Anti Interference feature for parallel installation (M/S switching)
- Longest-in-class detecting distance of 7m
Light Curtain Sensors
SS40 Series
SS40 Series
| Model | Detecting width | Optical axis interval | Detecting object | Output mode | Protective structure | |
|---|---|---|---|---|---|---|
| SS40-T4 | 120mm | 40mm | Opaque φ52mm or more | NPN | IP66 | |
| SS40-T4-PN | 120mm | 40mm | Opaque φ52mm or more | PNP | IP66 | |
| SS40-T6 | 200mm | 40mm | Opaque φ52mm or more | NPN | IP66 | |
| SS40-T6-PN | 200mm | 40mm | Opaque φ52mm or more | PNP | IP66 | |
| SS40-T8 | 280mm | 40mm | Opaque φ52mm or more | NPN | IP66 | |
| SS40-T8-PN | 280mm | 40mm | Opaque φ52mm or more | PNP | IP66 | |
| SS40-T10 | 360mm | 40mm | Opaque φ52mm or more | NPN | IP66 | |
| SS40-T10-PN | 360mm | 40mm | Opaque φ52mm or more | PNP | IP66 | |
| SS40-T12 | 440mm | 40mm | Opaque φ52mm or more | NPN | IP66 | |
| SS40-T12-PN | 440mm | 40mm | Opaque φ52mm or more | PNP | IP66 | |
| SS40-T16 | 600mm | 40mm | Opaque φ52mm or more | NPN | IP66 | |
| SS40-T16-PN | 600mm | 40mm | Opaque φ52mm or more | PNP | IP66 | |
| SS40-T20 | 760mm | 40mm | Opaque φ52mm or more | NPN | IP66 | |
| SS40-T20-PN | 760mm | 40mm | Opaque φ52mm or more | PNP | IP66 | |
| SS40-T24 | 920mm | 40mm | Opaque φ52mm or more | NPN | IP66 | |
| SS40-T24-PN | 920mm | 40mm | Opaque φ52mm or more | PNP | IP66 |
More Info
Only receiver is shown in the figure as an example.
With transmitter, orientation of mounting bracket is reversed.

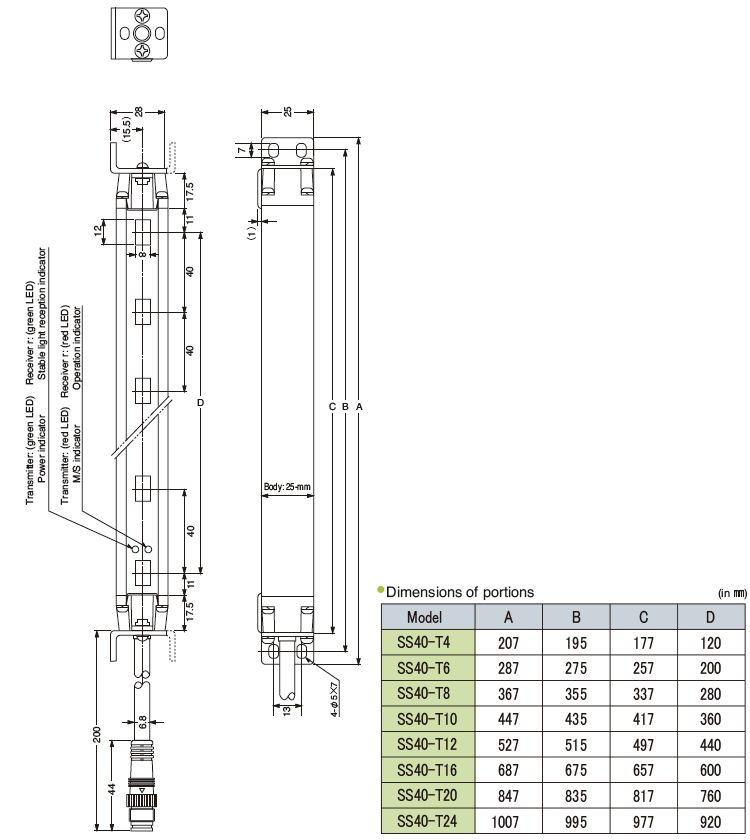

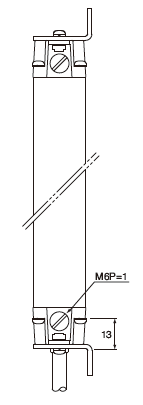

Back view (common to all sensors of the series)

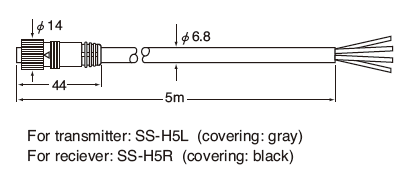

Cable with connector (accessory)

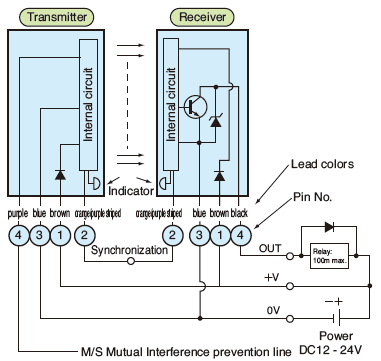

NPN output

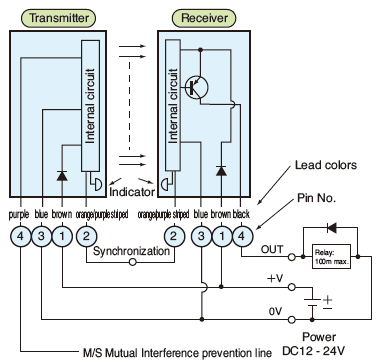

PNP output
- The output transistor turns off when load short circuits or overload occurs. Check the load and turn the power back on.
- When not using the Anti Interference feature, leave the M/S Mutual Interference prevention line unconnected and ensure it will not come in contact with any other cable.

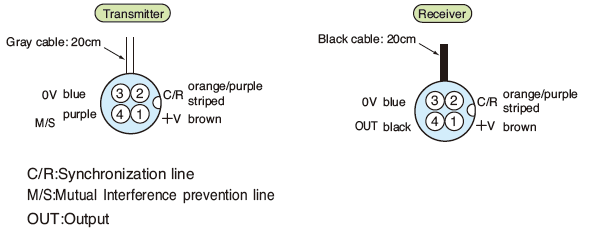

Connector pin assignment
