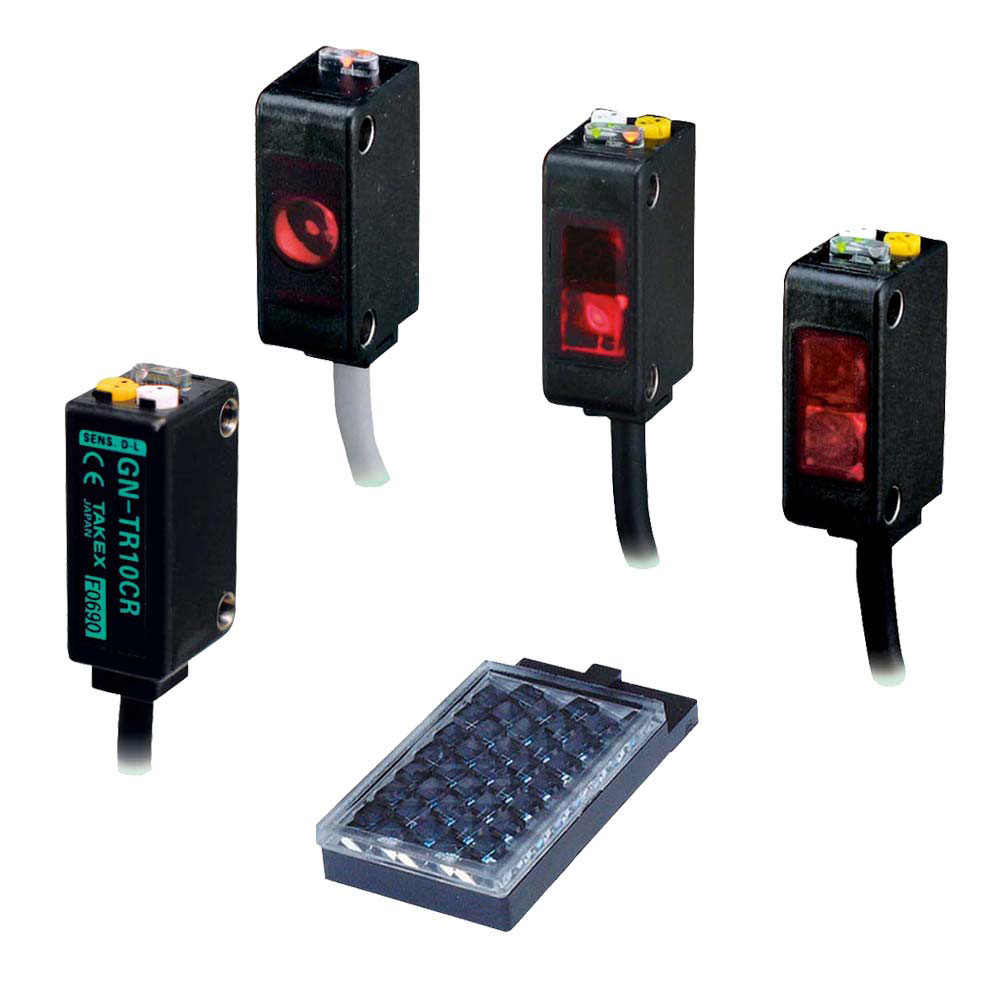

Compact Side-On

GN Series

  • New type of amplifier built-in photo sensor
  • Slim and compact side-on models
    • Lightweight and compact
      Thin, space-saving sensor allows flexible mounting
    • Flat lens less affected by dust and dirt
      Superb stability at high power (detecting distance of 10 m)
    • High-intensity indicators with excellent visibility
      Easy to check if the sensor is operating from a distance
Contact us about this series

GN Series

Model Detection method Detecting distance Output mode Connection Power supply Protective structure
GN-M2CR Polarized retroreflective 0.03 - 1.3m NPN Attached cable 12 - 24V DC IP67
Contact
GN-M2CR-J Polarized retroreflective 0.03 - 1.3m NPN M8 Connector 12 - 24V DC IP67
Contact
GN-M2CRPN Polarized retroreflective 0.03 - 1.3m PNP Attached cable 12 - 24V DC IP67
Contact
GN-M2CRPN-J Polarized retroreflective 0.03 - 1.3m PNP M8 Connector 12 - 24V DC IP67
Contact
GN-R7C Diffuse reflective 70mm NPN Attached cable 12 - 24V DC IP67
Contact
GN-R7C-J Diffuse reflective 70mm NPN M8 Connector 12 - 24V DC IP67
Contact
GN-R7CPN Diffuse reflective 70mm PNP Attached cable 12 - 24V DC IP67
Contact
GN-R7CPN-J Diffuse reflective 70mm PNP M8 Connector 12 - 24V DC IP67
Contact
GN-R30C Diffuse reflective 300mm NPN Attached cable 12 - 24V DC IP67
Contact
GN-R30C-J Diffuse reflective 300mm NPN M8 Connector 12 - 24V DC IP67
Contact
GN-R30CPN Diffuse reflective 300mm PNP Attached cable 12 - 24V DC IP67
Contact
GN-R30CPN-J Diffuse reflective 300mm PNP M8 Connector 12 - 24V DC IP67
Contact
GN-R40CR Diffuse reflective 400mm NPN Attached cable 12 - 24V DC IP67
Contact
GN-R40CR-J Diffuse reflective 400mm NPN M8 Connector 12 - 24V DC IP67
Contact
GN-R40CRPN Diffuse reflective 400mm PNP Attached cable 12 - 24V DC IP67
Contact
GN-R40CRPN-J Diffuse reflective 400mm PNP M8 Connector 12 - 24V DC IP67
Contact
GN-T7C Through beam 7m NPN Attached cable 12 - 24V DC IP67
Contact
GN-T7C-J Through beam 7m NPN M8 Connector 12 - 24V DC IP67
Contact
GN-T7CPN Through beam 7m PNP Attached cable 12 - 24V DC IP67
Contact
GN-T7CPN-J Through beam 7m PNP Attached cable 12 - 24V DC IP67
Contact
GN-T10CR Through beam 10m NPN Attached cable 12 - 24V DC IP67
Contact
GN-T10CR-J Through beam 10m NPN M8 Connector 12 - 24V DC IP67
Contact
GN-T10CRPN Through beam 10m PNP Attached cable 12 - 24V DC IP67
Contact
GN-T10CRPN-J Through beam 10m PNP M8 Connector 12 - 24V DC IP67
Contact
GN-Z3C Convergent reflective 1 - 40mm NPN Attached cable 12 - 24V DC IP67
Contact
GN-Z3C-J Convergent reflective 1 - 40mm NPN M8 Connector 12 - 24V DC IP67
Contact
GN-Z3CPN Convergent reflective 1 - 40mm PNP Attached cable 12 - 24V DC IP67
Contact
GN-Z3CPN-J Convergent reflective 1 - 40mm PNP M8 Connector 12 - 24V DC IP67
Contact
GN-Z3CR Convergent reflective 3 - 30mm NPN Attached cable 12 - 24V DC IP67
Contact
GN-Z3CR-J Convergent reflective 3 - 30mm NPN M8 Connector 12 - 24V DC IP67
Contact
GN-Z3CRPN Convergent reflective 3 - 30mm PNP Attached cable 12 - 24V DC IP67
Contact
GN-Z3CRPN-J Convergent reflective 3 - 30mm PNP M8 Connector 12 - 24V DC IP67
Contact

Accessories

K-7

60 x 40mm Reflector for Polarized Retroreflective models

K-71

43 x 23mm Reflector for Polarized Retroreflective models

More Info

About pinhole plate

Pinhole plates allow the reduction of the size of a detection object or the margin of movement. Using the sensitivity adjustment volume in combination allows detection of even smaller or near-transparent objects.

All cable type models

Figures above show receivers. Transmitters have different panels.

All connector type (-J) models

Figures above show receivers. Transmitters have different panels.

All cable type models

Figures above show receivers. Transmitters have different panels.

Transmitter of through beam type

Receiver of through beam type/polarized retroreflective type/diffuse reflective type/convergent reflective type

  • The output transistor turns off when load short circuit or overload occurs. Check the load and turn the power back on.
    To extend the cord, use thick wires (at least 0.3 mm^2).

Connector type pin assignment and connection

  • M8 connector type
    M8 connector type is also available about all models.
    See Rating/Performance/Specification for details.
