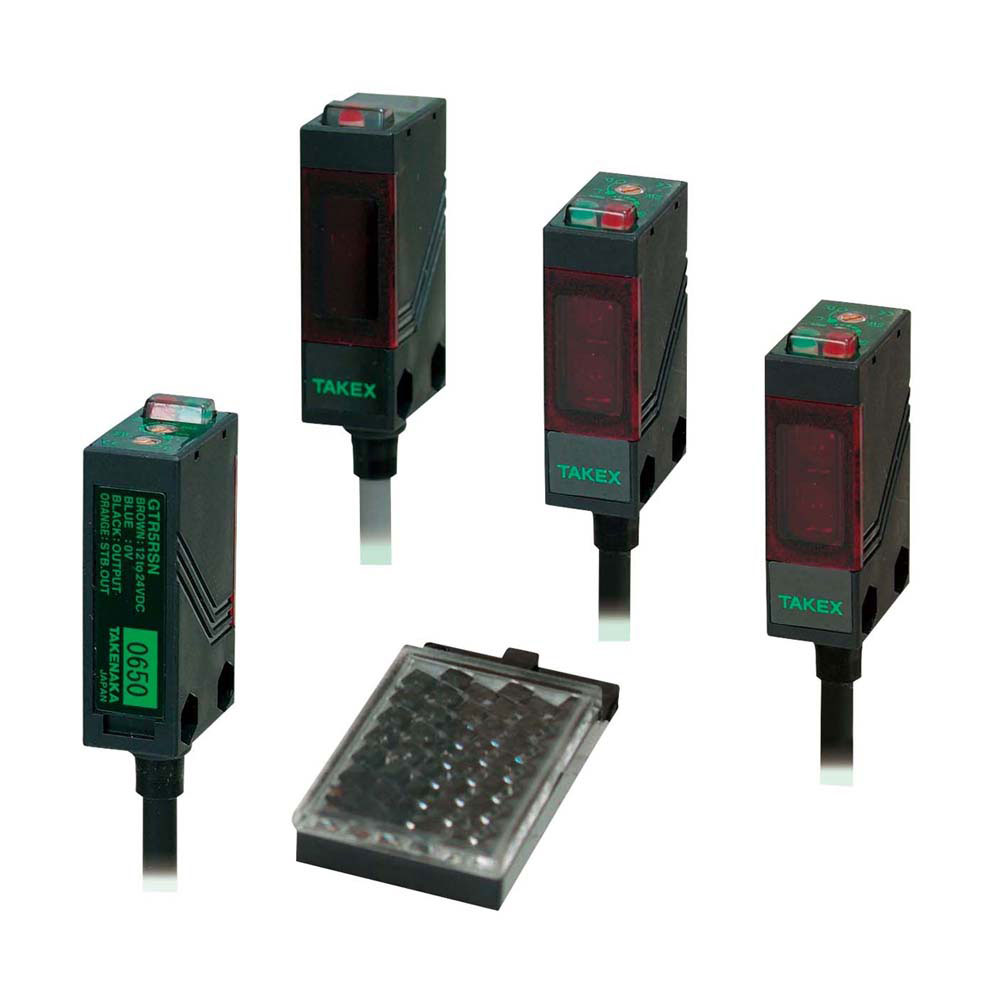

Photoelectric Sensor Middle-G Series
Compact

Middle-G Series

  • Completely filled with resin to be IP67 compliant
  • Improved water resistance and intensity suitable for conveyor lines
    • The operation mode can be selected by a switch
    • Sensitivity adjustment for fine detection
    • Globally compatible PNP types also conveniently provided with stability output
    • Optional rigid protective cover (mounting bracket) available
Contact us about this series

Middle-G Series

Model Detection method Detecting distance Output mode Connection Protective structure
GMR2RN Polarized retroreflective 0.03 - 1.5 m NPN Attached cable IP67
Contact
GMR2RN-J Polarized retroreflective 0.03 - 1.5 m NPN M8 Connector IP67
Contact
GMR2RPN-N Polarized retroreflective 0.03 - 1.5 m PNP Attached cable IP67
Contact
GMR2RPNN-J Polarized retroreflective 0.03 - 1.5 m PNP M8 Connector IP67
Contact
GMR2RSN Polarized retroreflective 0.03 - 1.5 m NPN Attached cable IP67
Contact
GMR2RSN-J Polarized retroreflective 0.03 - 1.5 m NPN M8 Connector IP67
Contact
GMR2RSPN-N Polarized retroreflective 0.03 - 1.5 m PNP Attached cable IP67
Contact
GSR05RN Diffuse reflective type 500mm NPN Attached cable IP67
Contact
GSR05RN-J Diffuse reflective type 500mm NPN M8 Connector IP67
Contact
GSR05RPN-N Diffuse reflective type 500mm PNP Attached cable IP67
Contact
GSR05RPNN-J Diffuse reflective type 500mm PNP M8 Connector IP67
Contact
GSR05RSN Diffuse reflective type 500mm NPN Attached cable IP67
Contact
GSR05RSN-J Diffuse reflective type 500mm NPN M8 Connector IP67
Contact
GSR05RSPN-N Diffuse reflective type 500mm PNP Attached cable IP67
Contact
GSR05RSPNN-J Diffuse reflective type 500mm PNP M8 Connector IP67
Contact
GT5RN Through beam 7ｍ NPN Attached cable IP67
Contact
GT5RN-J Through beam 7m NPN M8 Connector IP67
Contact
GT5RPN-N Through beam 7ｍ PNP Attached cable IP67
Contact
GT5RPNN-J Through beam 7m PNP M8 Connector IP67
Contact
GT5RSN Through beam 7ｍ NPN Attached cable IP67
Contact
GT5RSN-J Through beam 7m NPN M8 Connector IP67
Contact
GT5RSPN-N Through beam 7ｍ PNP Attached cable IP67
Contact
GT5RSPNN-J Through beam 7m PNP M8 Connector IP67
Contact

Accessories

K-7

60 x 40mm Reflector for Polarized Retroreflective models

K-71

43 x 23mm Reflector for Polarized Retroreflective models

S-25

18 mm dia. Reflector for Polarized Retroreflective models

More Info

Ideal for built-in

Ideal for built-in

(Head-on) typical example

*1 The operating side depends on the model.
With mounting bracket attached.

(Side-on) Typical example

*1 The operating side depends on the model.
With mounting bracket attached.

(Mounting bracket in different orientation)

With mounting bracket attached.

"`-J" (M8 connector type) head-on model`

With mounting bracket attached.

"`-J" (M8 connector type) side-on model`

NPN output

PNP output

  • The transmitter is provided with power supply lines (brown: 12 - 24 VDC; blue: 0 V) only.
  • The output transistor turns off when load short circuit or overload occurs. Check the load and turn the power back on.

M8 connector type (-J) pin assignment and connection

  • (Receiver/reflective type sensor)
    The colors show lead colors for use in combination with the optional cord with M8 connector.
  • (Transmitter)
    Lines other than Lines 1 (brown) and 3 (blue) are unused.
