Double sheet/Seal Detection

US-T04AN

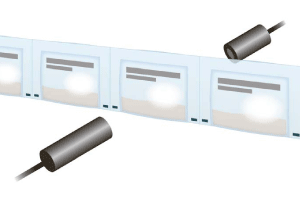

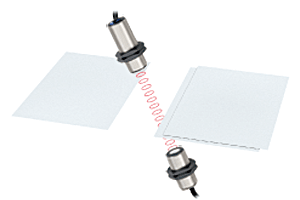

  • Reliably detects double sheet or heated seal of plastic bags
  • Embedded amplifier with analog output
  • M18 threaded screw housing
  • Not affected by color or surface finish of the detecting object
  • Fast response time
Contact us about this series

US-T04AN

Model Detection method Detection distance Output mode Connection method Protective structure
US-T04AN Through Beam 20 - 60mm Analog Attached cable IP65
Contact

Videos

US-T04AN | Product Showcase

More Info

US-T04AN

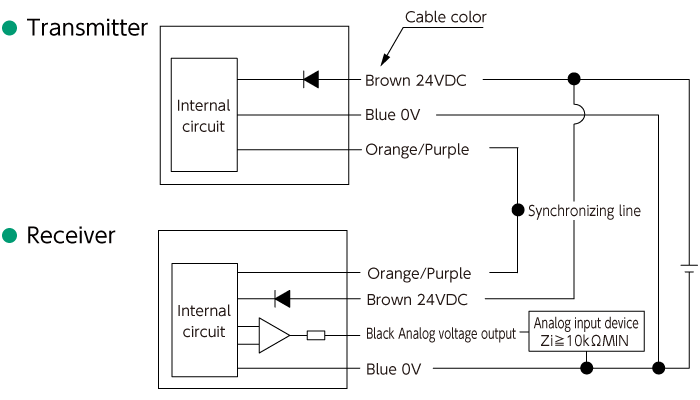

CONNECTION

The sensors are supplied in coordinated pairs of an ultrasonic transmitterand a receiver each of which has a matching serial No.
